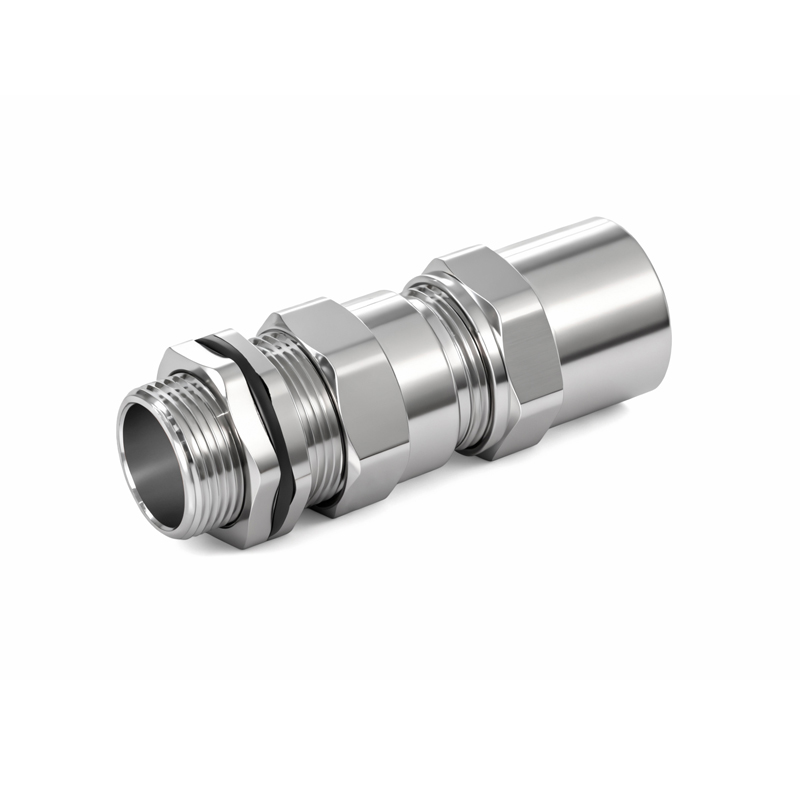

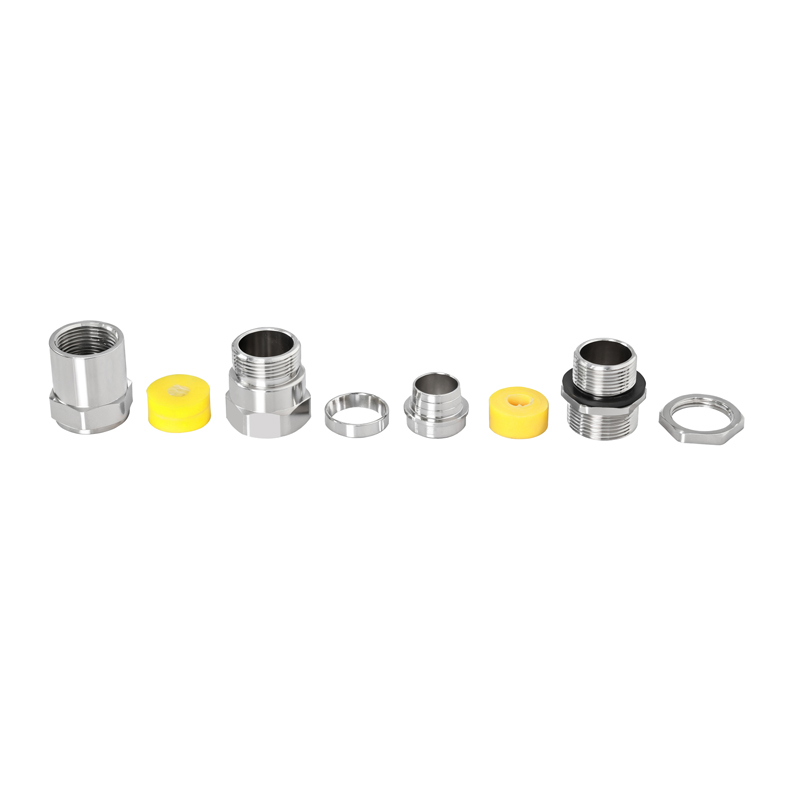

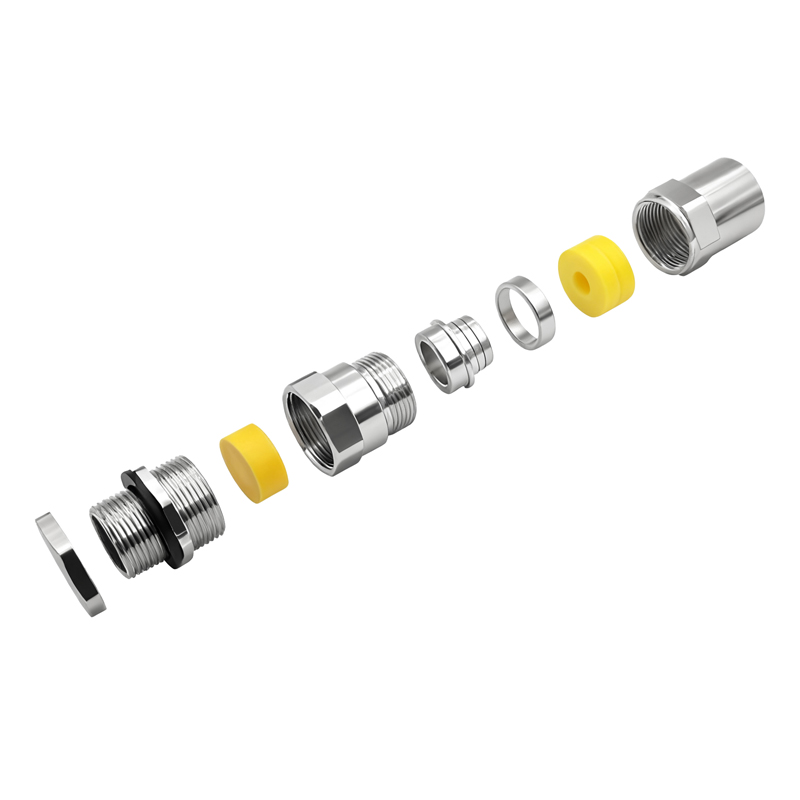

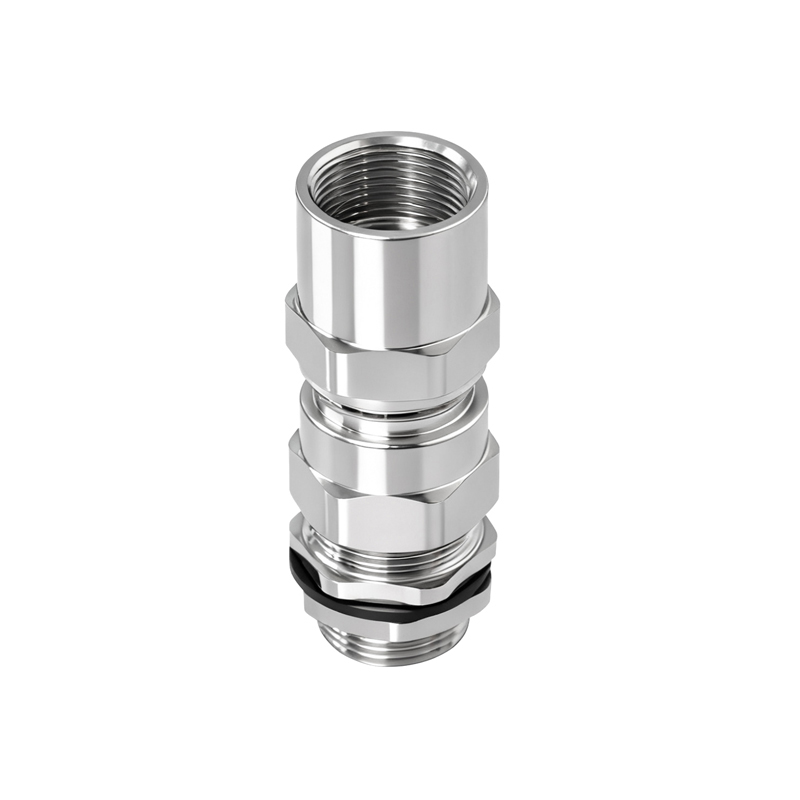

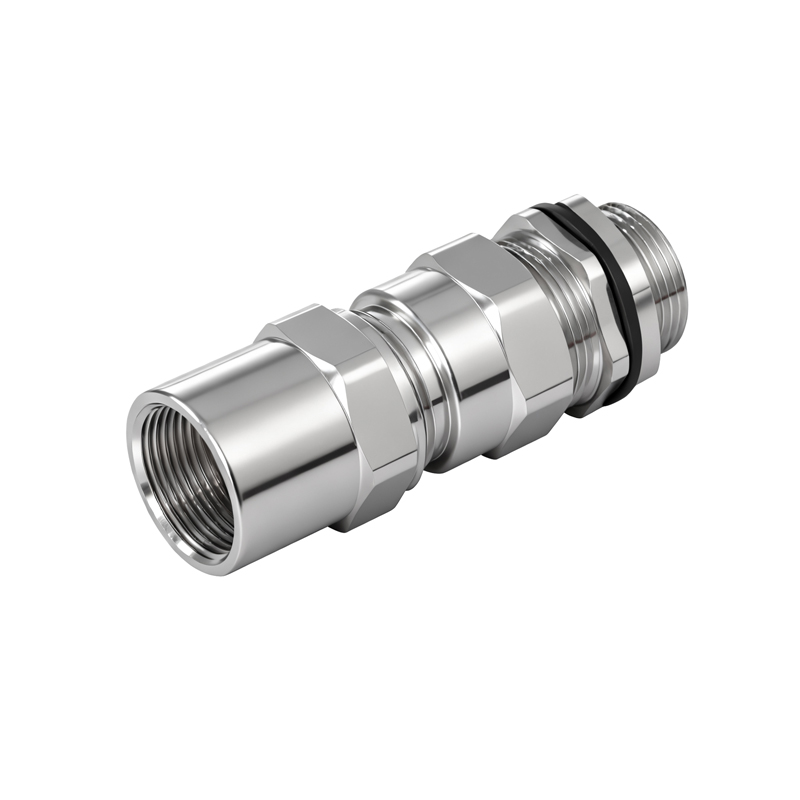

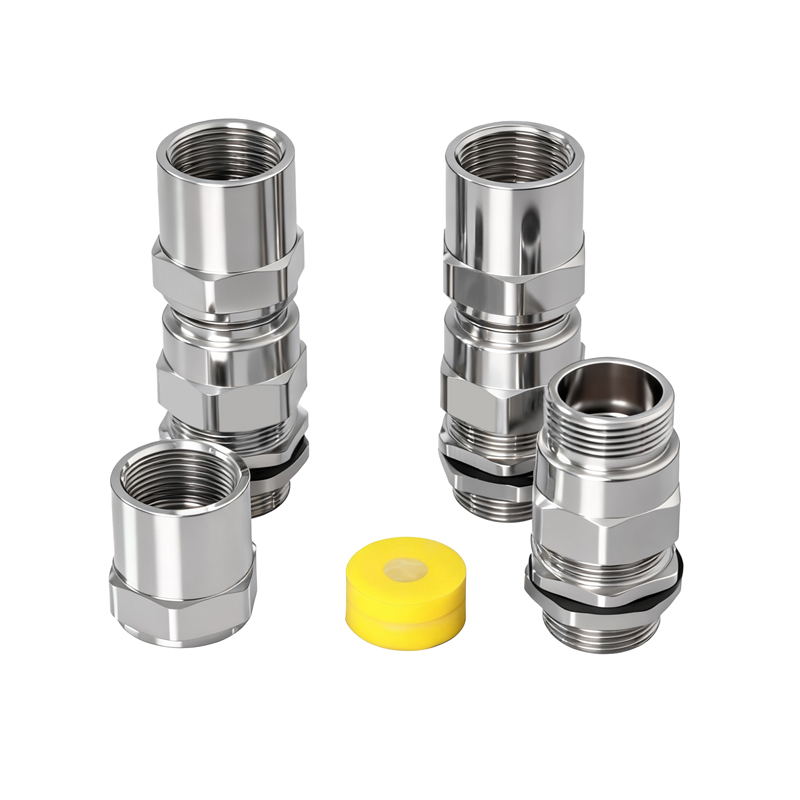

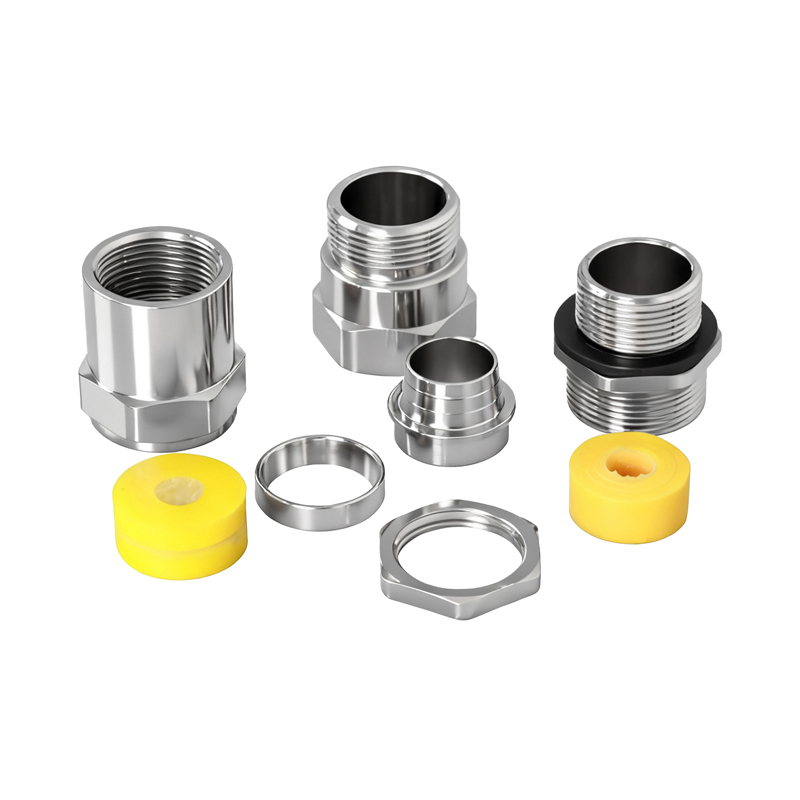

double seal armoured Inner And Outer Wire Cable Glands-Metal Male-Female Union-Yikawei

Category

double seal armoured Inner And Outer Wire Cable Glands

Material:SS304/316L/Nickel plated brass

Claw:PA66 (Nylon)

Hermetic:Silicon Rubber

O-Ring:Silicon Rubber

Thread size:M thread

Flame retardant degree:UL94-V0

Working temperature:Static -60 ℃ ~ +100 ℃ , short time can be

up to + 120 ℃ .

Protection Level:IP 66

Product description

Parameter

Features:Increase flood control external meter seal, with

advanced CNC machine tools finishing materials made of

flameproof bushings and inside and outside built-drogue proof

function, good protective performance, with fast installation,

safe and reliable armor.

Model	M thread	G thread	Cable outer diameter range			GL (mm)	H(mm)	Max. OD φ	Standard thread		Armor layer thickness h(mm)
Model	M thread	G thread	Outer line	Choose outer line	Iner line	GL (mm)	H(mm)	Max. OD φ	M	G	Armor layer thickness h(mm)
YKWS/B-EXII/2-M20	M20x1.5	G1/2	4~8	—	5.5~12	15	94	30	M20x1.5	G1/2	0.3~1.0
	M20x1.5	G1/2	6.5~10.5	—	9.5~16	15	94	30	M20x1.5	G1/2	0.3~1.0
	M20x1.5	G1/2	10~14.5	6~12	12.5~20.5	15	94	30	M25x1.5	G3/4	0.3~1.0
YKWS/B-EXII/2-M25	M25x1.5	G3/4	10~14.5	6~12	12.5~20.5	15	98	37	M25x1.5	G3/4	0.3~1.0
YKWS/B-EXII/2-M25	M25x1.5	G3/4	12.5~19.5	9~15	17~26	15	103	37	M32x1.5	G1	0.4~1.2
YKWS/B-EXII/2-M32	M32x1.5	G1	12.5~19.5	9~15	17~26	19	106	45	M32x1.5	G1	0.4~1.2
YKWS/B-EXII/2-M32	M32x1.5	G1	19~25.2	14~22	22~33	19	110	45	M40x1.5	G1-1/4	0.4~1.4
YKWS/B-EXII/2-M40	M40x1.5	G1-1/4	19~25.2	14~22	22~33	19	116	55	M40x1.5	G1-1/4	0.6~1.9
YKWS/B-EXII/2-M40	M40x1.5	G1-1/4	25~31	19~28	28~41	19	121	55	M50x1.5	G1-1/2	0.6~2.2
YKWS/B-EXII/2-M50	M50x1.5	G1-1/2	25~31	19~28	28~41	19	126	65	M50x1.5	G1-1/2	0.8~2.3
YKWS/B-EXII/2-M50	M50x1.5	G1-1/2	31.5~37	26~33	36~52.5	19	130	65	M63x1.5	G2	0.8~2.3
YKWS/B-EXII/2-M63	M63x1.5	G2	31.5~37	26~33	36~52.5	19	149	77	M63x1.5	G2	0.9~2.4
YKWS/B-EXII/2-M63	M63x1.5	G2	42.5~49	39~46.5	46~65	19	155	82	M75x1.5	G2-1/2	0.9~2.4
YKWS/B-EXII/2-M75	M75x1.5	G2-1/2	42.5~55	39~46.5	46~65	19	160	93	M75x1.5	G2-1/2	0.9~2.4
YKWS/B-EXII/2-M75	M75x1.5	G2-1/2	54.5~64	48~58	57~78	19	175	110	M90x2	G3	0.9~2.4
YKWS/B-EXII/2-M90	M90x1.5	G3	63~75	—	68~88	19	180	121	M115x2	G4	0.9~2.8
YKWS/B-EXII/2-M115	M115x1.5	G7	75~90	—	83~103	19	195	137	M125x2	G4-1/2	0.9~2.8
Note: According to customer installation requirements, thread length GL extension and thread customization can be provided
