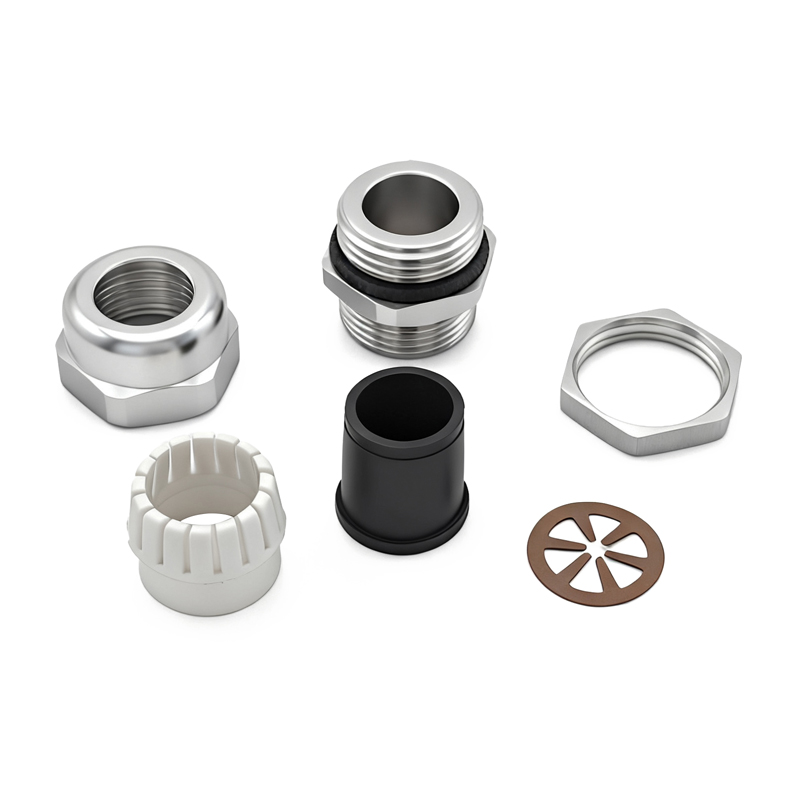

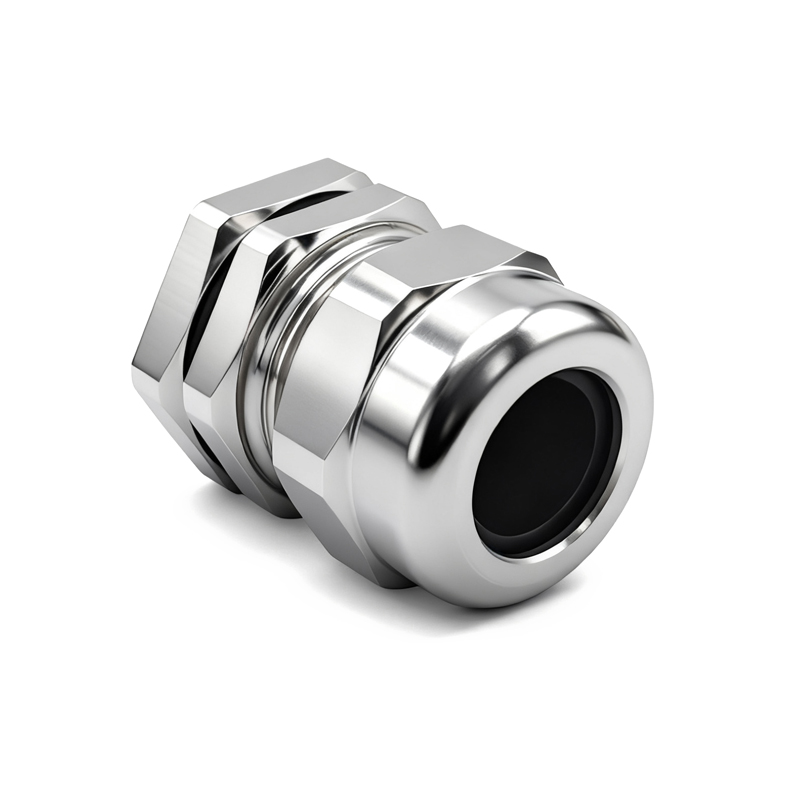

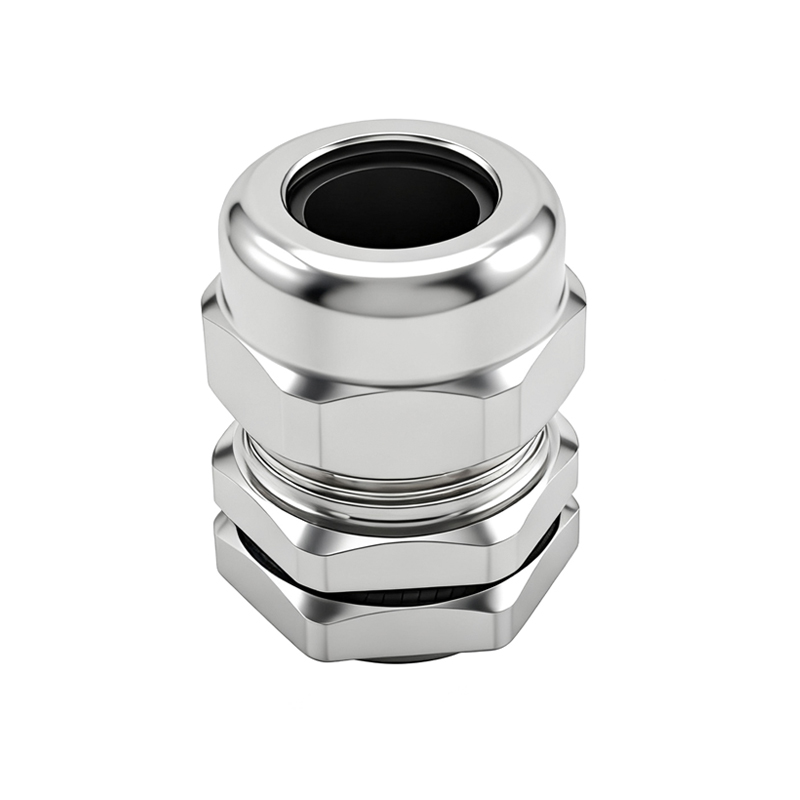

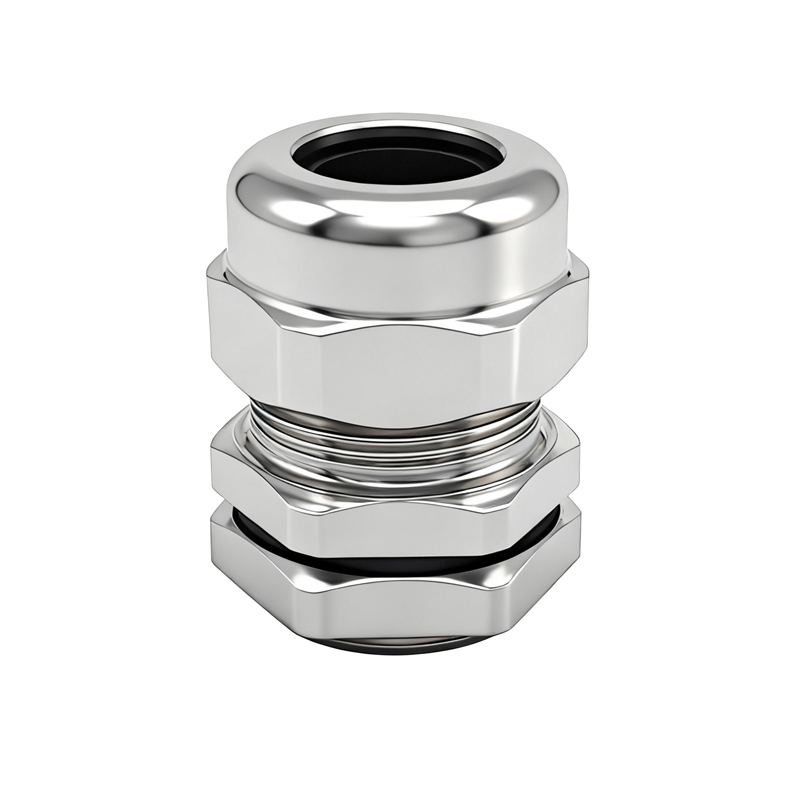

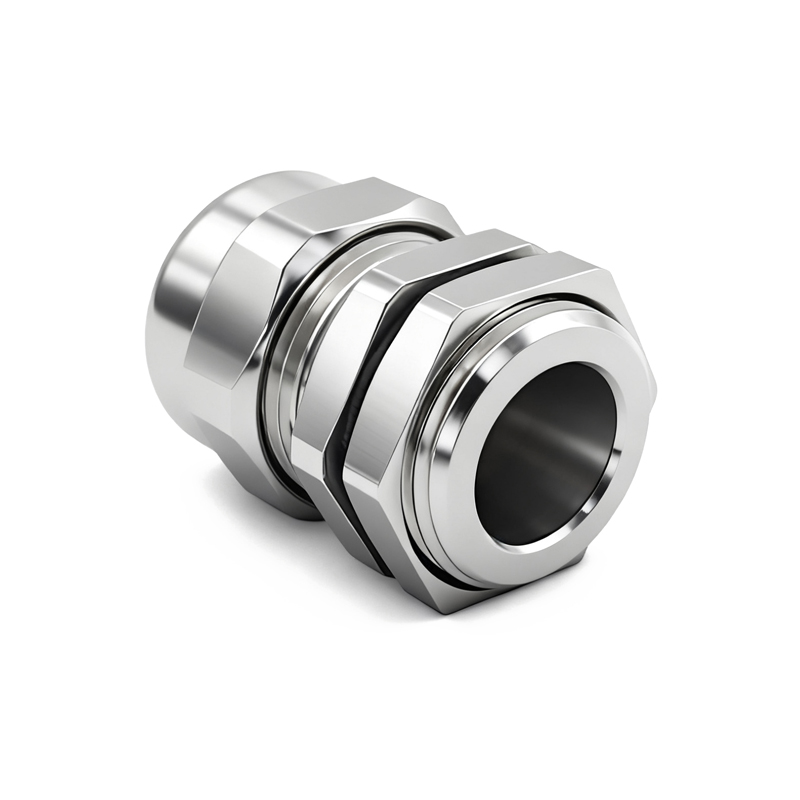

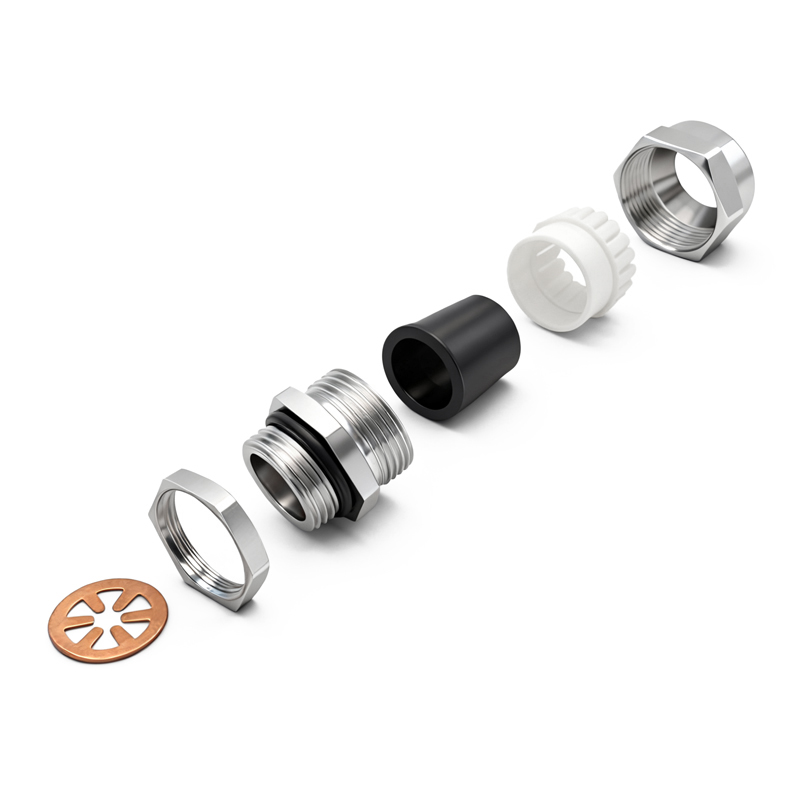

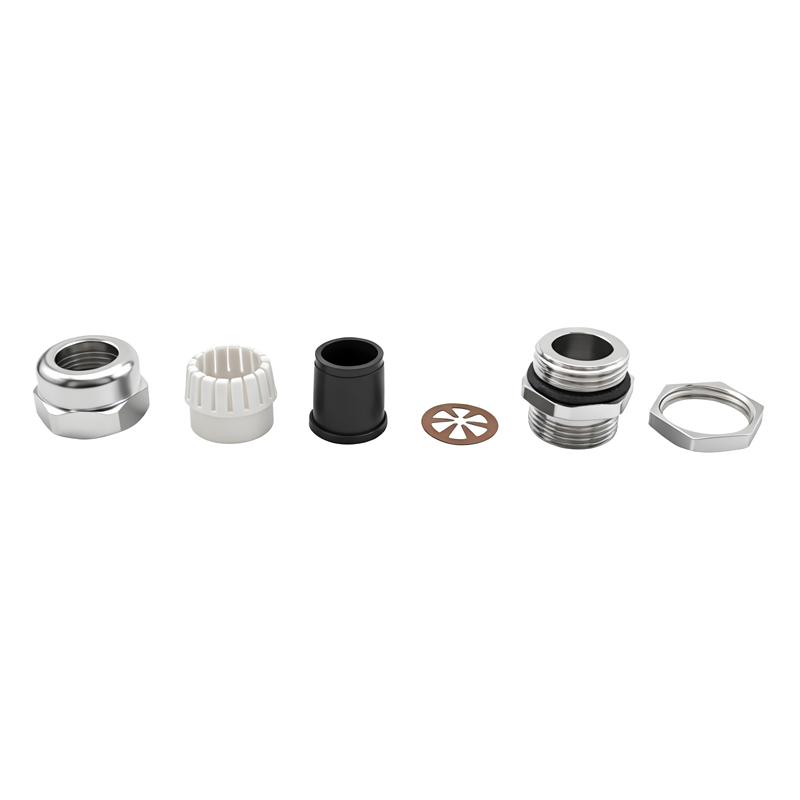

Material:SS304/316L/Nickel plated brass
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Shielding washers: flat washers, angled washers
Thread size：M thread, PG thread, G thread,NPT thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .
Protection Level : IP 68

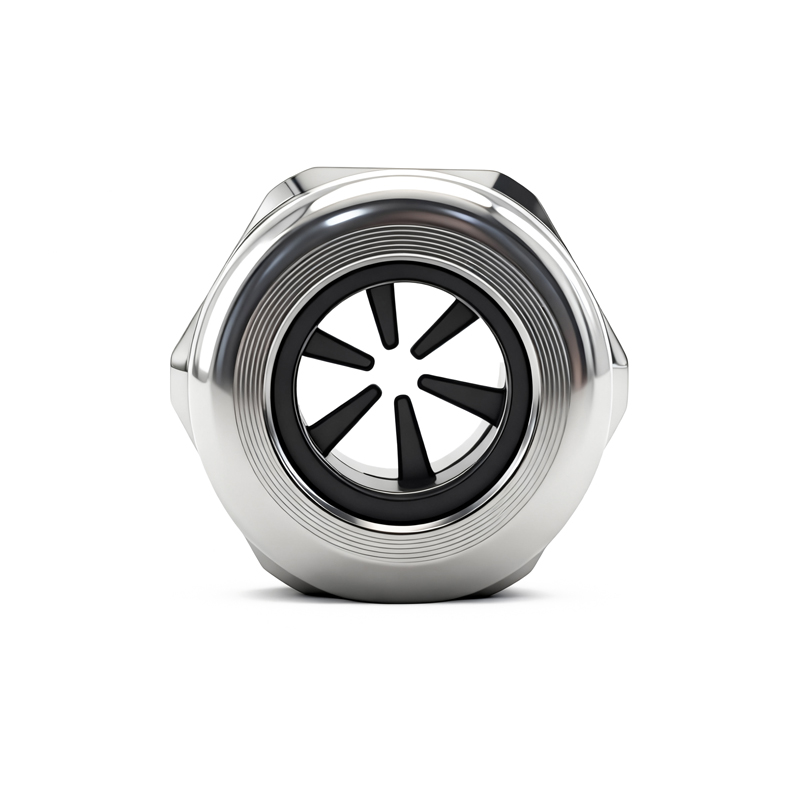

Features : The metal cable gland as a side body when entering
the isolation cable gland is available within the fixed head
additional contact pads come with cable within the network
to the preparation of metal in contact isolation and lead to
interference of electromagnetic waves into the ground online ,
so that electromagnetic interference can be evacuated.
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-EMC-M12 | M12x1.5 | 3~6.5 | 12 | 6.5 | 19 | 14 |
| M12x1.5 | 4~8 | 12 | 8 | 19 | 17/14 | |
| YKWS/B-EMC-M16 | M16x1.5 | 3~6 | 16 | 8 | 20 | 18 |
| M16x1.5 | 4~8 | 16 | 8 | 20 | 18 | |
| M16x1.5 | 5~10 | 16 | 8 | 21 | 20/18 | |
| YKWS/B-EMC-M18 | M18x1.5 | 5~10 | 18 | 8 | 21 | 20 |
| YKWS/B-EMC-M20 | M20x1.5 | 6~12 | 20 | 8 | 22 | 22 |
| M20x1.5 | 10~14 | 20 | 8 | 23 | 24/22 | |
| YKWS/B-EMC-M22 | M22x1.5 | 10~14 | 22 | 8 | 23 | 24 |
| YKWS/B-EMC-M25 | M25x1.5 | 10~14 | 25 | 9 | 25 | 24/27 |
| M25x1.5 | 12~16 | 25 | 9 | 27 | 27 | |
| M25x1.5 | 13~18 | 25 | 9 | 27 | 30/27 | |
| YKWS/B-EMC-M32 | M32x1.5(2) | 15~22 | 32 | 10 | 29 | 35 |
| M32x1.5(2) | 18~25 | 32 | 10 | 31 | 40/35 | |
| YKWS/B-EMC-M40 | M40x1.5(2) | 18~25 | 40 | 11 | 31 | 40/45 |
| M40x1.5(2) | 22~30 | 40 | 11 | 35 | 45 | |
| M40x1.5(2) | 25~33 | 40 | 11 | 37 | 50/45 | |
| YKWS/B-EMC-M50 | M50x1.5(2) | 32~38 | 50 | 13 | 37 | 57/55 |
| YKWS/B-EMC-M63 | M63x1.5(2) | 37~44 | 63 | 14 | 38 | 64/68 |
| M63x1.5(2) | 42~52 | 63 | 14 | 38 | 78/68 | |
| YKWS/B-EMC-M72 | M72x1.5(2) | 42~52 | 72 | 16 | 42 | 78 |
| YKWS/B-EMC-M80 | M80x1.5(2) | 55~62 | 80 | 18 | 45 | 88 |
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-EMC-PG7 | PG7 | 3~6.5 | 12.5 | 8 | 19 | 14 |
| PG7 | 4~8 | 12.5 | 8 | 19 | 17/14 | |
| YKWS/B-EMC-PG9 | PG9 | 3~6 | 15.2 | 8 | 20 | 18 |
| PG9 | 4~8 | 15.2 | 8 | 20 | 18 | |
| PG9 | 5~10 | 15.2 | 8 | 21 | 20/18 | |
| YKWS/B-EMC-PG11 | PG11 | 5~10 | 18.6 | 8 | 21 | 20 |
| YKWS/B-EMC-PG13.5 | PG13.5 | 6~12 | 20.4 | 8 | 22 | 22 |
| PG13.5 | 10~14 | 20.4 | 8 | 23 | 24/22 | |
| YKWS/B-EMC-PG16 | PG16 | 10~14 | 22.5 | 9 | 23 | 24 |
| YKWS/B-EMC-PG21 | PG21 | 12~16 | 25 | 9 | 27 | 27 |
| PG21 | 13~18 | 25 | 9 | 27 | 30/27 | |
| YKWS/B-EMC-PG29 | PG29 | 18~25 | 28.3 | 10 | 31 | 40/35 |
| YKWS/B-EMC-PG36 | PG36 | 25~33 | 32 | 11 | 37 | 50/45 |
| YKWS/B-EMC-PG42 | PG42 | 32~38 | 37 | 13 | 37 | 57/55 |
| YKWS/B-EMC-PG48 | PG48 | 37~44 | 47 | 14 | 38 | 64/68 |
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-EMC-NPT1/4 | NPT1/4 | 3~6.5 | 13.16 | 8 | 19 | 14 |
| NPT1/4 | 4~8 | 13.16 | 8 | 19 | 17/14 | |
| YKWS/B-EMC-NPT3/8 | NPT3/8 | 5~10 | 16.67 | 8 | 21 | 20 |
| YKWS/B-EMC-NPT1/2 | NPT1/2 | 6~12 | 20.96 | 8 | 22 | 22 |
| NPT1/2 | 10~14 | 20.96 | 8 | 23 | 24/22 | |
| YKWS/B-EMC-NPT3/4 | NPT3/4 | 10~14 | 26.45 | 9 | 25 | 24/27 |
| NPT3/4 | 12~16 | 26.45 | 9 | 27 | 27 | |
| NPT3/4 | 13~18 | 26.45 | 9 | 27 | 30/27 | |
| YKWS/B-EMC-NPT1 | NPT1 | 18~25 | 33.25 | 10 | 31 | 40/35 |
| YKWS/B-EMC-NPT1 1/4 | NPT1 1/4 | 25~32 | 41.9 | 11 | 37 | 50/45 |
| YKWS/B-EMC-NPT1 1/2 | NPT1 1/2 | 32~38 | 47.8 | 13 | 37 | 57/55 |
| YKWS/B-EMC-NPT2 | NPT2 | 37~44 | 59.6 | 14 | 38 | 64/68 |
| NPT2 | 42~52 | 59.6 | 14 | 38 | 78/68 | |
| 型号 Model | 规格 Specification | 卡口范围(mm) Clamping Range | 螺纹外径 AG (mm) | 螺纹长度 GL (mm) | 总高 H(mm) | 扳手尺寸 Wrench Size (mm) |
| YKWS/B-EMC-G1/4 | G1/4 | 3~6.5 | 13.16 | 8 | 19 | 14 |
| G1/4 | 4~8 | 13.16 | 8 | 19 | 17/14 | |
| YKWS/B-EMC-G3/8 | G3/8 | 5~10 | 16.67 | 8 | 21 | 20 |
| YKWS/B-EMC-G1/2 | G1/2 | 6~12 | 20.96 | 8 | 22 | 22 |
| G1/2 | 10~14 | 20.96 | 8 | 23 | 24/22 | |
| YKWS/B-EMC-G3/4 | G3/4 | 10~14 | 26.45 | 9 | 25 | 24/27 |
| G3/4 | 12~16 | 26.45 | 9 | 27 | 27 | |
| G3/4 | 13~18 | 26.45 | 9 | 27 | 30/27 | |
| YKWS/B-EMC-G1 | G1 | 18~25 | 33.25 | 10 | 31 | 40/35 |
| YKWS/B-EMC-G1 1/4 | G1 1/4 | 25~32 | 41.9 | 11 | 37 | 50/45 |
| YKWS/B-EMC-G1 1/2 | G1 1/2 | 32~38 | 47.8 | 13 | 37 | 57/55 |
| YKWS/B-EMC-G2 | G2 | 37~44 | 59.6 | 14 | 38 | 64/68 |
| G2 | 42~52 | 59.6 | 14 | 38 | 78/68 | |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||
