Material : stainless steel
Protection degree : Max IP68
Temperature Range : Min-40℃ , Max100°℃

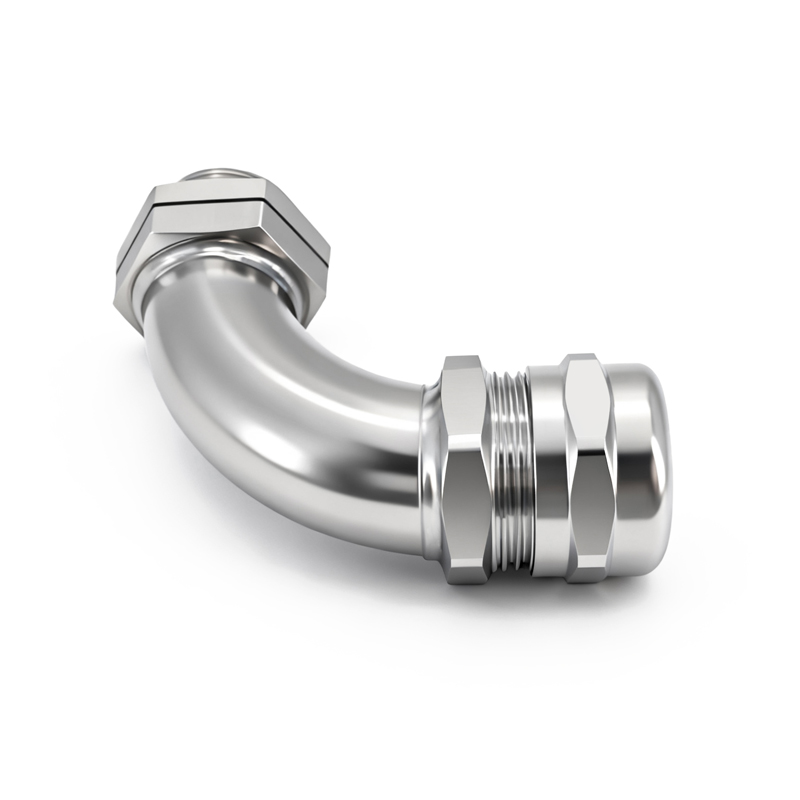

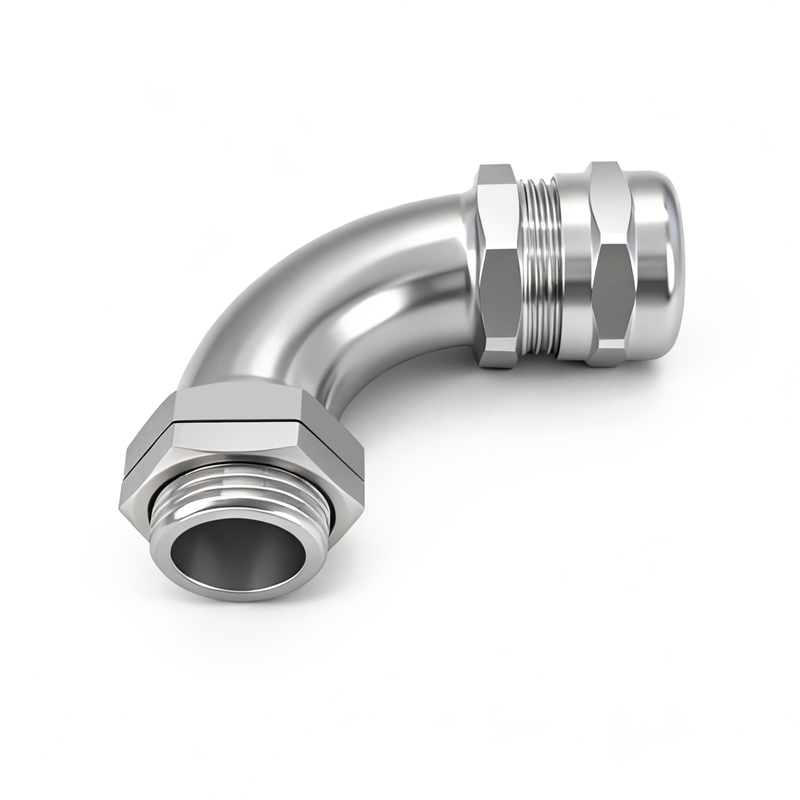

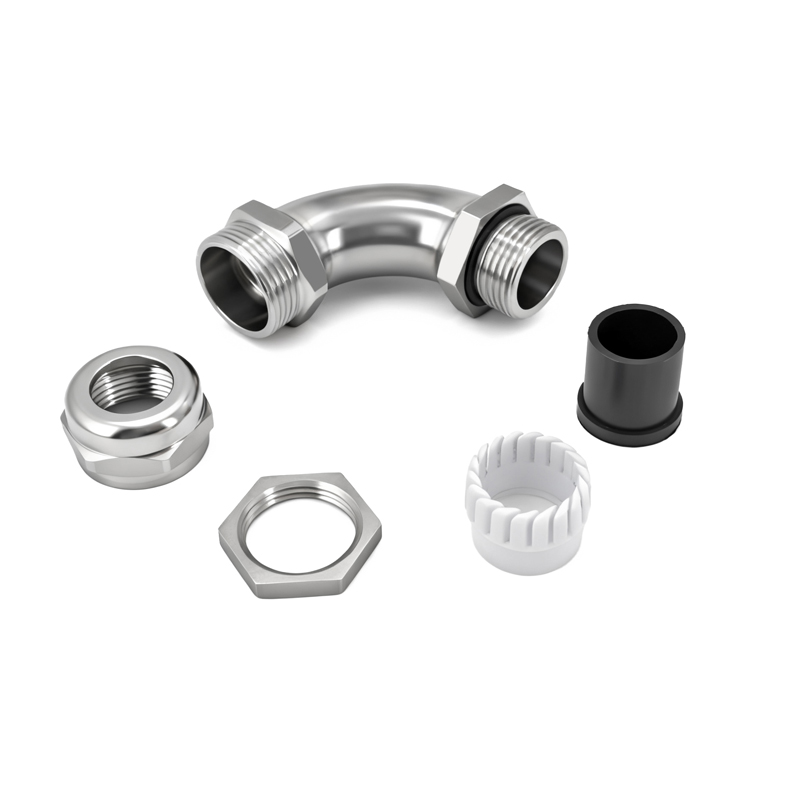

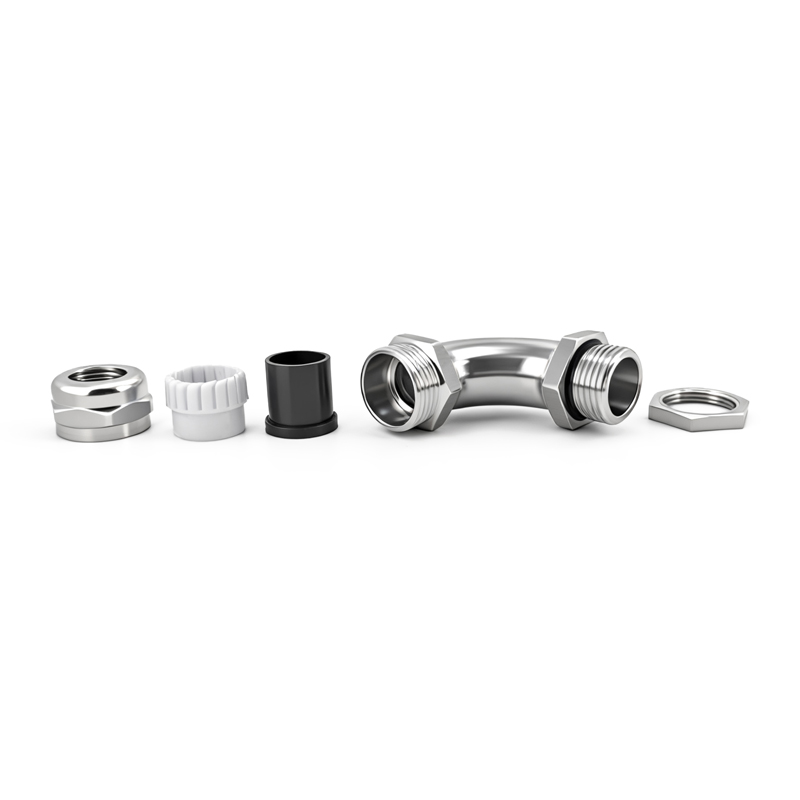

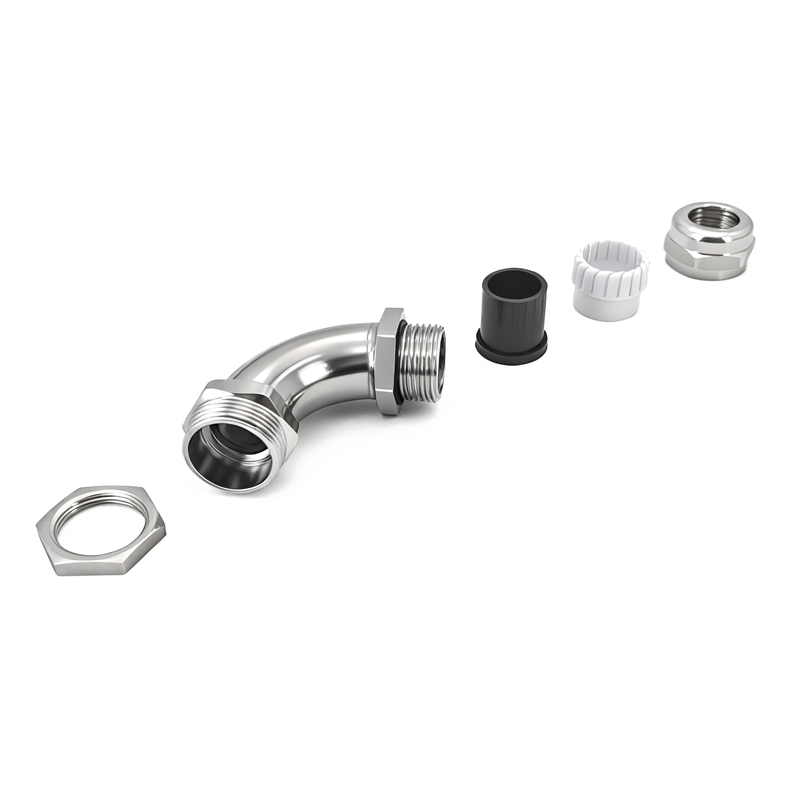

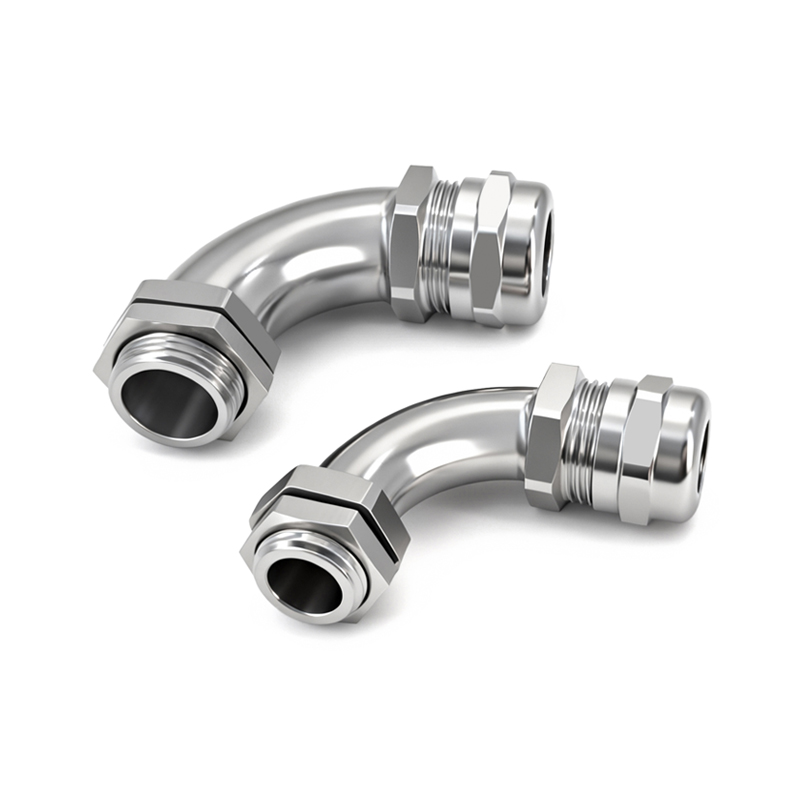

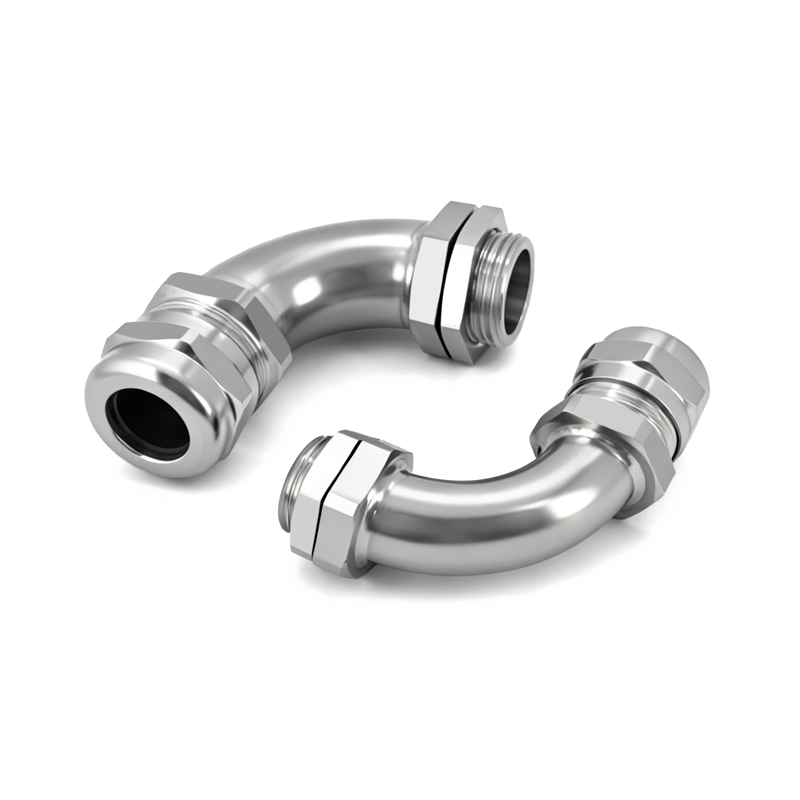

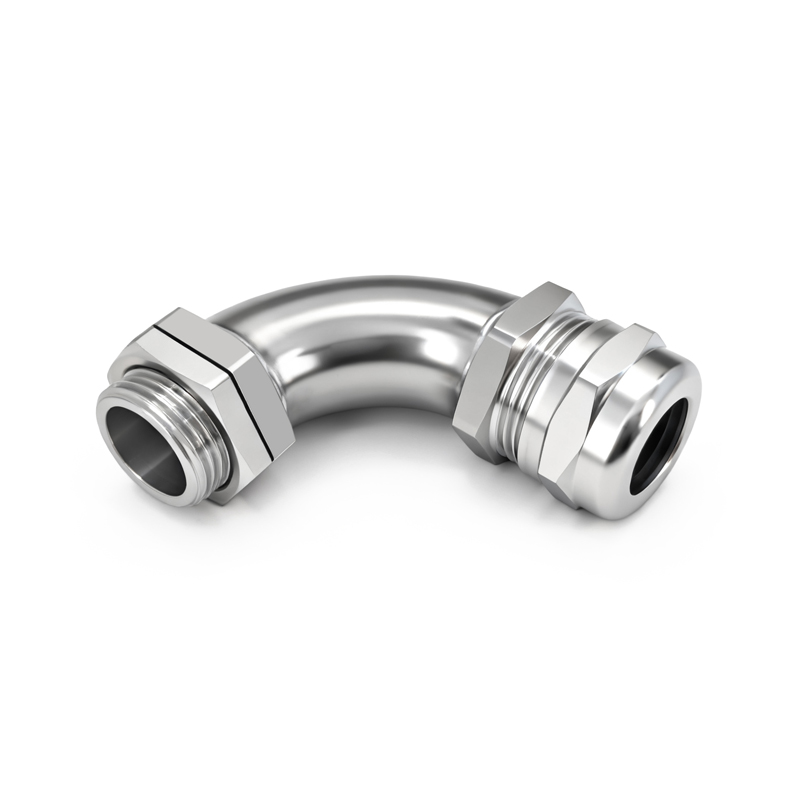

One end of the cable connectors can be connected at one end
to 90 º can be connected to the housing. motors and other
equipment, in addition to the nuts with Slipknot, Right Angle
Connector angle can be adjusted, and then the lock nut.
One end of the cable connectors can be connected at one end
to 90 º can be connected to the housing. motors and other
equipment, in addition to the nuts with Slipknot, Right Angle
Connector angle can be adjusted, and then the lock nut.
| Model | Outer thread | Inner thread | D φ (mm) | GL (mm) | H(mm) |
| YKWS-SC-M16 | M16x1.5 | M16x1.5 | φ12 | 7 | 26 |
| YKWS-SC-M20 | M20x1.5 | M20x1.5 | φ15.5 | 7 | 32 |
| YKWS-SC-M25 | M25x1.5 | M25x1.5 | φ20.5 | 7 | 42 |
| YKWS-SC-M32 | M32x1.5 | M32x1.5 | φ27.5 | 8 | 50 |
| YKWS-SC-M40 | M40x1.5 | M40x1.5 | φ34.5 | 9 | 55 |
| Model | Outer thread | Inner thread | D φ (mm) | GL (mm) | H(mm) |
| YKWS-SC-PG9 | PG9 | PG9 | φ11 | 7 | 26 |
| YKWS-SC-PG11 | PG11 | PG11 | φ14 | 7 | 30 |
| YKWS-SC-PG13.5 | PG13.5 | PG13.5 | φ16 | 7 | 32 |
| YKWS-SC-PG16 | PG16 | PG16 | φ18 | 7 | 34 |
| YKWS-SC-PG21 | PG21 | PG21 | φ21 | 7 | 42 |
| YKWS-SC-PG29 | PG29 | PG29 | φ31 | 8 | 50 |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | |||||
