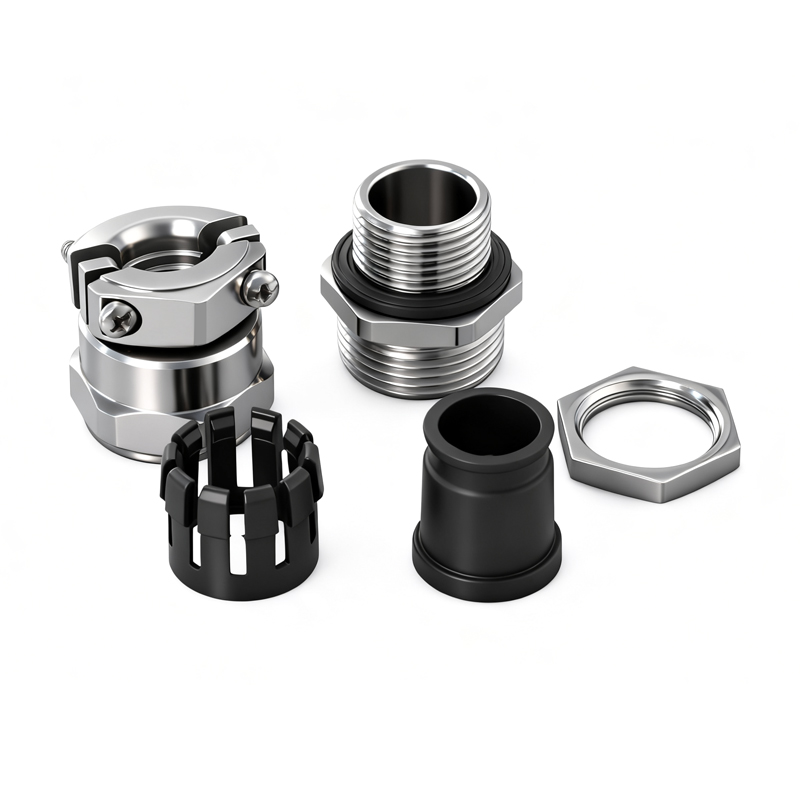

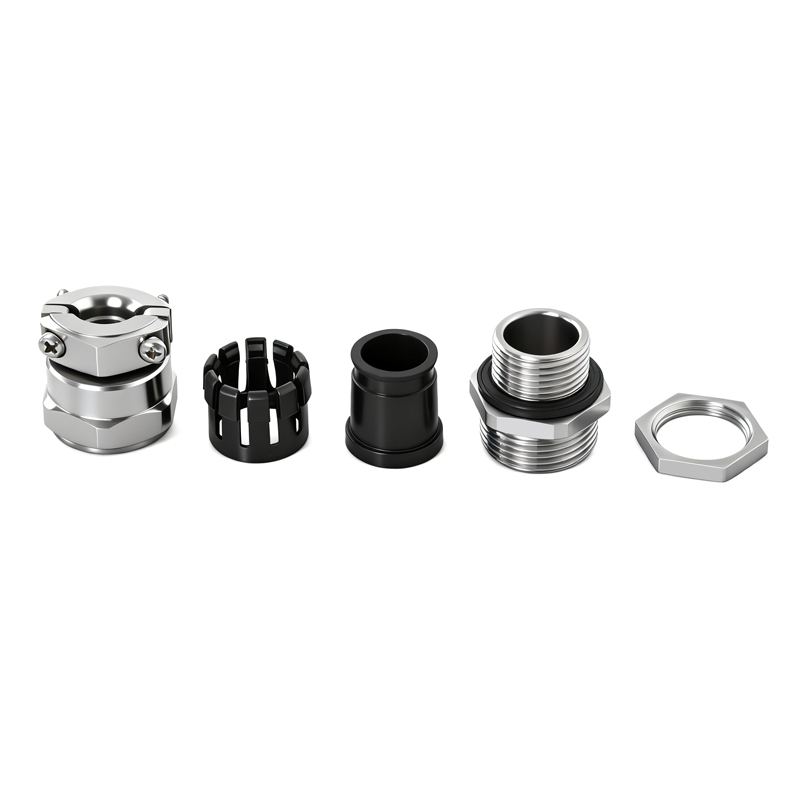

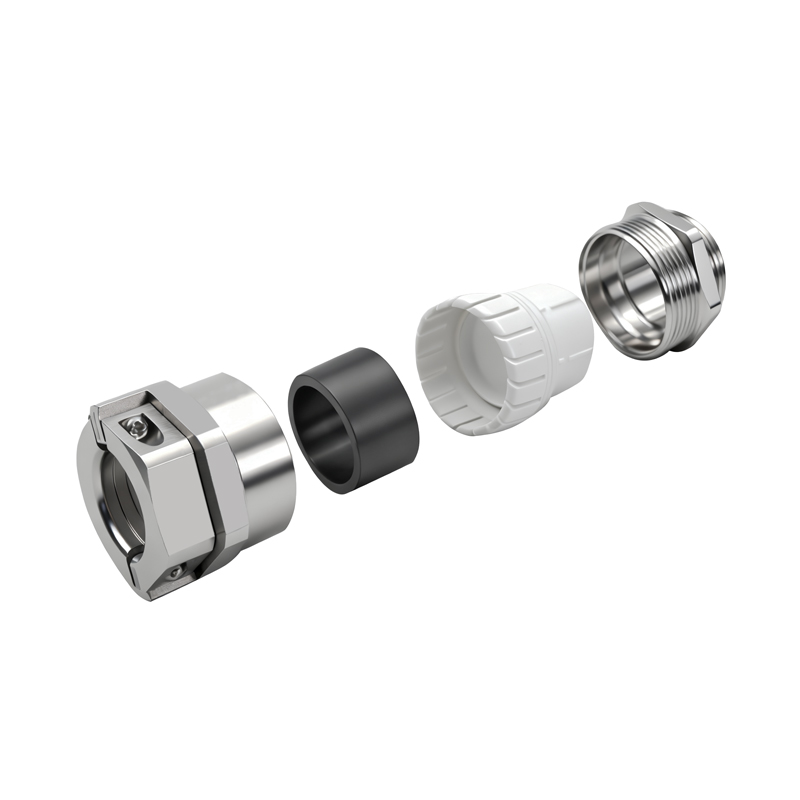

Material:SS304/316L/Nickel plated brass
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Clamping core sleeve: A-type half-pass, B-type straight-through
Thread size：M thread, PG thread, G thread,NPT thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .
Protection Level : IP 68
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-DL-M12 | M12x1.5 | 3~6.5 | 12 | 8 | 26 | 14 |
| YKWS/B-DL-M16 | M16x1.5 | 4~8 | 16 | 8 | 30 | 17/18 |
| YKWS/B-DL-M18 | M18x1.5 | 5~10 | 18 | 9 | 30 | 20 |
| YKWS/B-DL-M20 | M20x1.5 | 6~12 | 20 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-M22 | M22x1.5 | 10~14 | 22 | 9.5 | 30.5 | 24 |
| YKWS/B-DL-M25 | M25x1.5 | 9~16 | 25 | 12 | 30.5 | 27 |
| M25x1.5 | 13~18 | 25 | 12 | 34.5 | 30 | |
| YKWS/B-DL-M27 | M27x1.5 | 13~18 | 27 | 12 | 34.5 | 30 |
| YKWS/B-DL-M28 | M28x1.5(2) | 13~18 | 28 | 12 | 34.5 | 30 |
| YKWS/B-DL-M32 | M32x1.5(2) | 15~22 | 32 | 12 | 36 | 35 |
| YKWS/B-DL-M37 | M37x1.5(2) | 18~25 | 37 | 12.5 | 43 | 40 |
| YKWS/B-DL-M40 | M40x1.5(2) | 18~25 | 40 | 15 | 43 | 45 |
| M40x1.5(2) | 22~30 | 40 | 15 | 43 | 45 | |
| YKWS/B-DL-M47 | M47x1.5(2) | 25~32 | 47 | 15 | 48 | 50 |
| YKWS/B-DL-M50 | M50x1.5(2) | 32~38 | 50 | 15 | 50 | 57 |
| YKWS/B-DL-M54 | M54x1.5(2) | 32~38 | 54 | 15 | 50 | 57 |
| YKWS/B-DL-M60 | M60x1.5(2) | 37~44 | 60 | 15 | 50 | 64/68 |
| YKWS/B-DL-M63 | M63x1.5(2) | 37~44 | 63 | 15 | 50 | 64/68 |
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-DL-PG7 | PG7 | 3~6.5 | 12.5 | 8 | 26 | 14 |
| YKWS/B-DL-PG9 | PG9 | 4~8 | 15.2 | 8 | 30 | 17/18 |
| YKWS/B-DL-PG11 | PG11 | 5~10 | 18.6 | 9 | 30 | 20 |
| YKWS/B-DL-PG13.5 | PG13.5 | 6~12 | 20.4 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-PG16 | PG16 | 10~14 | 22.5 | 9.5 | 30.5 | 24 |
| YKWS/B-DL-PG19 | PG19 | 9~16 | 25 | 12 | 30.5 | 27 |
| YKWS/B-DL-PG21 | PG21 | 13~18 | 28.3 | 12 | 34.5 | 30 |
| YKWS/B-DL-PG25 | PG25 | 15~22 | 32 | 12 | 36 | 35 |
| YKWS/B-DL-PG29 | PG29 | 18~25 | 37 | 12.5 | 43 | 40 |
| YKWS/B-DL-PG36 | PG36 | 25~32 | 47 | 15 | 48 | 50 |
| YKWS/B-DL-PG42 | PG42 | 32~38 | 54 | 15 | 50 | 57 |
| YKWS/B-DL-PG48 | PG48 | 37~44 | 59.3 | 15 | 50 | 64/68 |
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-DL-NPT1/4 | NPT1/4 | 3~6.5 | 13.16 | 8 | 26 | 14 |
| YKWS/B-DL-NPT3/8 | NPT3/8 | 4~8 | 16.67 | 8 | 30 | 17/18 |
| YKWS/B-DL-NPT3/4 | NPT3/4 | 13~18 | 26.45 | 12 | 34.5 | 30 |
| YKWS/B-DL-NPT1 | NPT1 | 18~25 | 33.25 | 12.5 | 43 | 40 |
| YKWS/B-DL-NPT1 1/4 | NPT1 1/4 | 25~32 | 41.9 | 15 | 48 | 50 |
| YKWS/B-DL-NPT1 1/2 | NPT1 1/2 | 32~38 | 47.8 | 15 | 50 | 57 |
| YKWS/B-DL-NPT2 | NPT2 | 37~44 | 59.6 | 15 | 50 | 64/68 |
| Model | Specification | Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-DL-G1/4 | G1/4 | 3~6.5 | 13.16 | 8 | 26 | 14 |
| YKWS/B-DL-G3/8 | G3/8 | 4~8 | 16.67 | 8 | 30 | 17/18 |
| YKWS/B-DL-G1/2 | G1/2 | 6~12 | 20.96 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-G3/4 | G3/4 | 13~18 | 26.45 | 12 | 34.5 | 30 |
| YKWS/B-DL-G1 | G1 | 18~25 | 33.25 | 12.5 | 43 | 40 |
| YKWS/B-DL-G1 1/4 | G1 1/4 | 25~32 | 41.9 | 15 | 48 | 50 |
| YKWS/B-DL-G1 1/2 | G1 1/2 | 32~38 | 47.8 | 15 | 50 | 57 |
| YKWS/B-DL-G2 | G2 | 37~44 | 59.6 | 15 | 50 | 64/68 |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||
