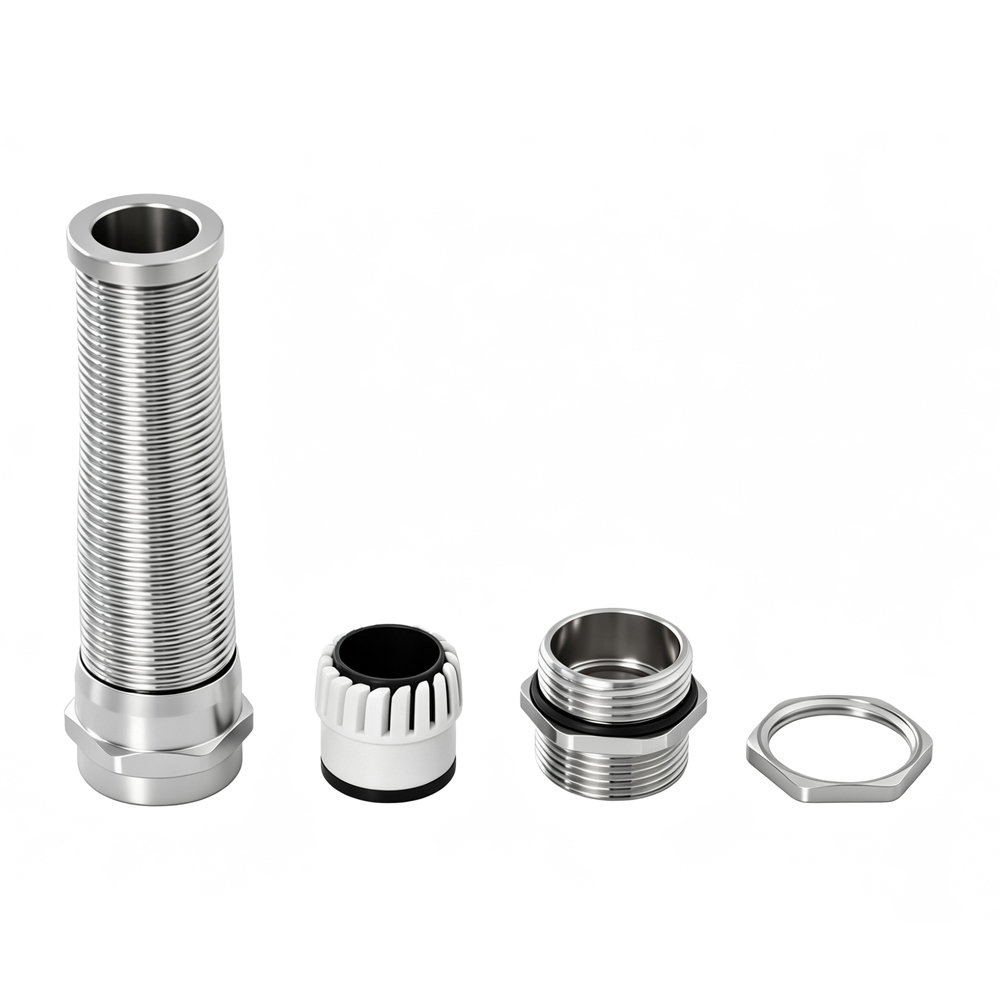

Material:SS304/316L/Nickel plated brass
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Clamping core sleeve: A-type half-pass, B-type straight-through
Thread size：M thread, PG thread, G thread,NPT thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .
Protection Level : IP 68
1.Can be used in flexible metallic conduit or liquid tight conduit
in Powerplant,Power transmission system,communication
system,building factory.railway, train, transportation system
project,air conditioner, various machines, automates
controlling plant. And protecting the electrical wire
or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure
| Model | Specification | (mm) Clamping Range | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-AB-M12 | M12x1.5 | 3~6.5 | 12 | 6.5 | 65 | 14 |
| YKWS/B-AB-M16 | M16x1.5 | 4~8 | 16 | 8 | 75 | 18 |
| YKWS/B-AB-M18 | M18x1.5 | 5~10 | 18 | 8 | 77 | 20 |
| YKWS/B-AB-M20 | M20x1.5 | 6~12 | 20 | 8 | 80 | 22 |
| YKWS/B-AB-M22 | M22x1.5 | 10~14 | 22 | 8 | 98 | 24 |
| YKWS/B-AB-M25 | M25x1.5 | 13~18 | 25 | 9 | 90 | 27 |
| YKWS/B-AB-M30 | M30x1.5 | 13~18 | 30 | 9 | 100 | 30 |
| Model | Specification | Clamping Range(mm) | AG (mm) | GL (mm) | H(mm) | Wrench Size (mm) |
| YKWS/B-AB-PG7 | PG7 | 3~6.5 | 12.5 | 6.5 | 65 | 14/15 |
| YKWS/B-AB-PG9 | PG9 | 4~8 | 15.2 | 8 | 68 | 17/18 |
| YKWS/B-AB-PG11 | PG11 | 5~10 | 18.6 | 8 | 75 | 20/21 |
| YKWS/B-AB-PG13.5 | PG13.5 | 6~12 | 20.4 | 8 | 75 | 22/23 |
| YKWS/B-AB-PG16 | PG16 | 10~14 | 22.5 | 8 | 80 | 24/25 |
| YKWS/B-AB-PG21 | PG21 | 13~18 | 28.3 | 9 | 100 | 30 |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||
