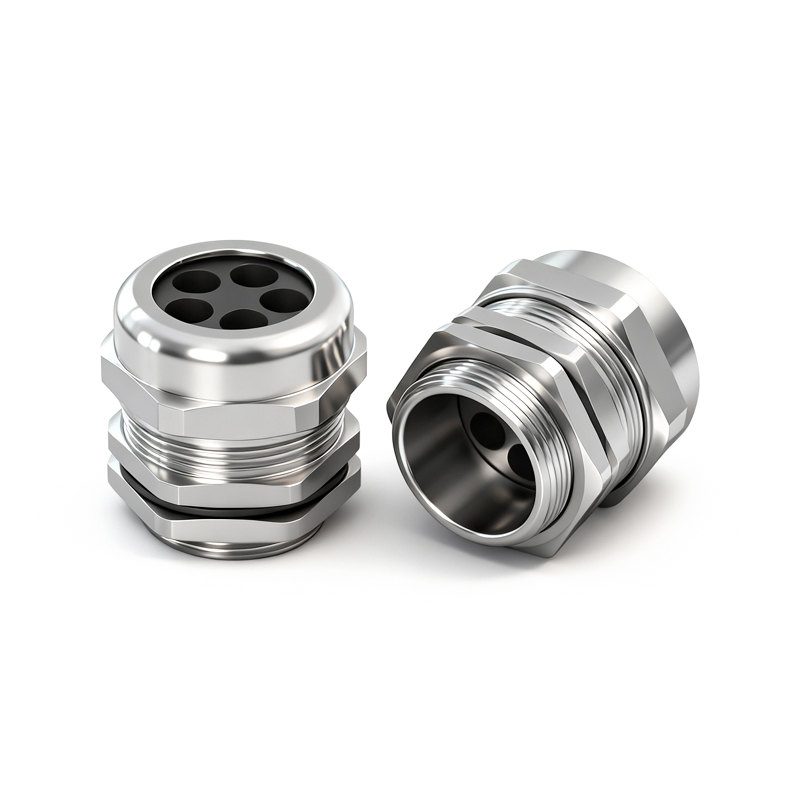

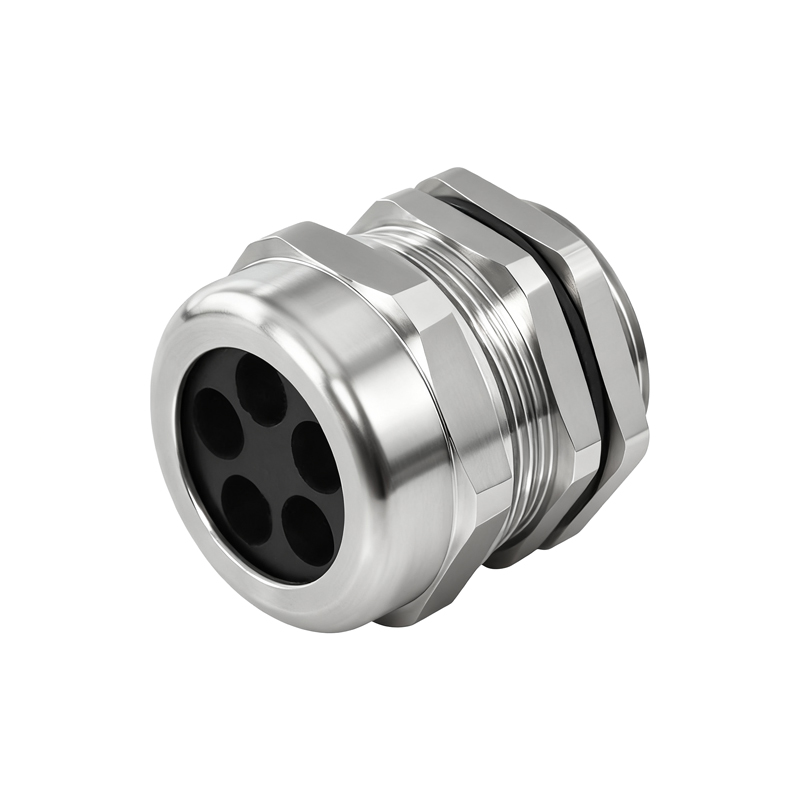

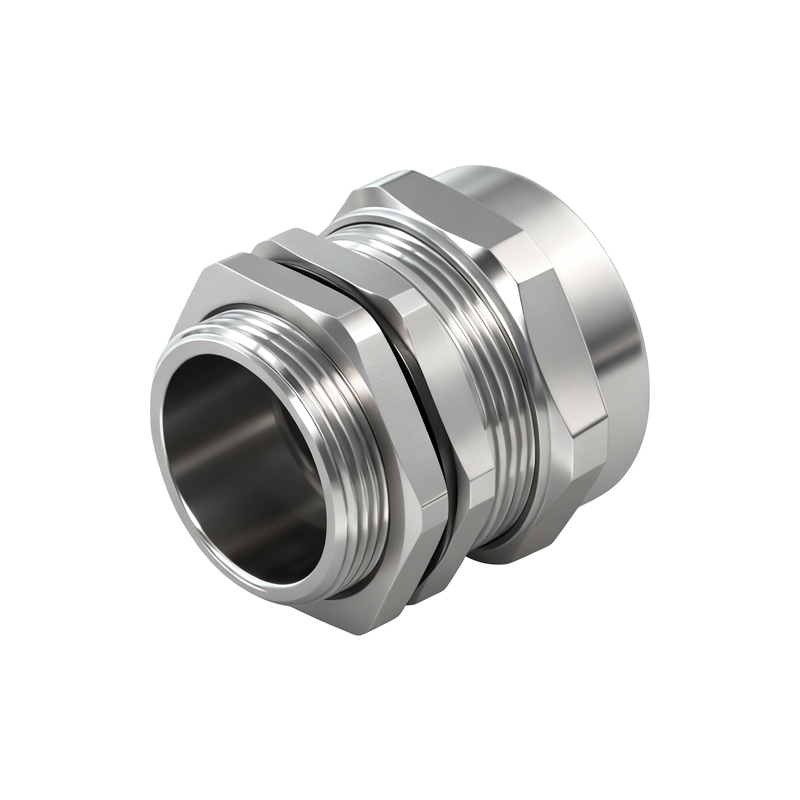

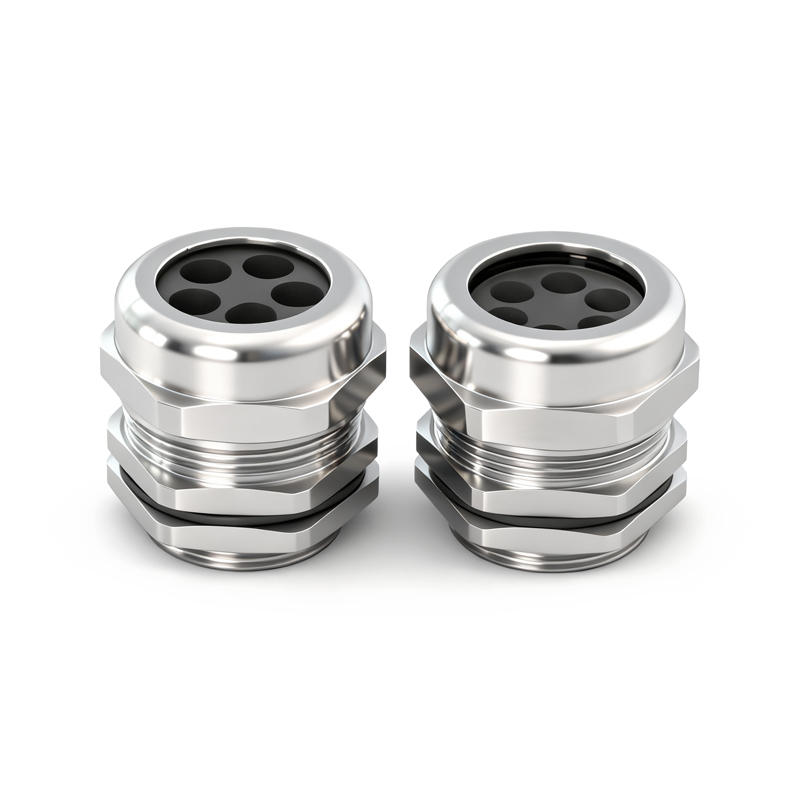

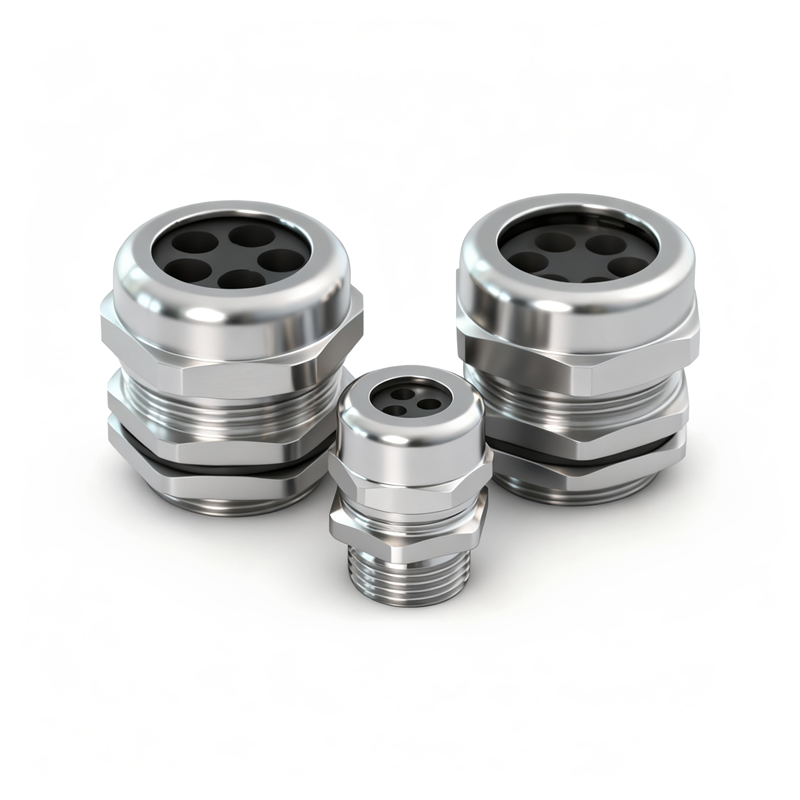

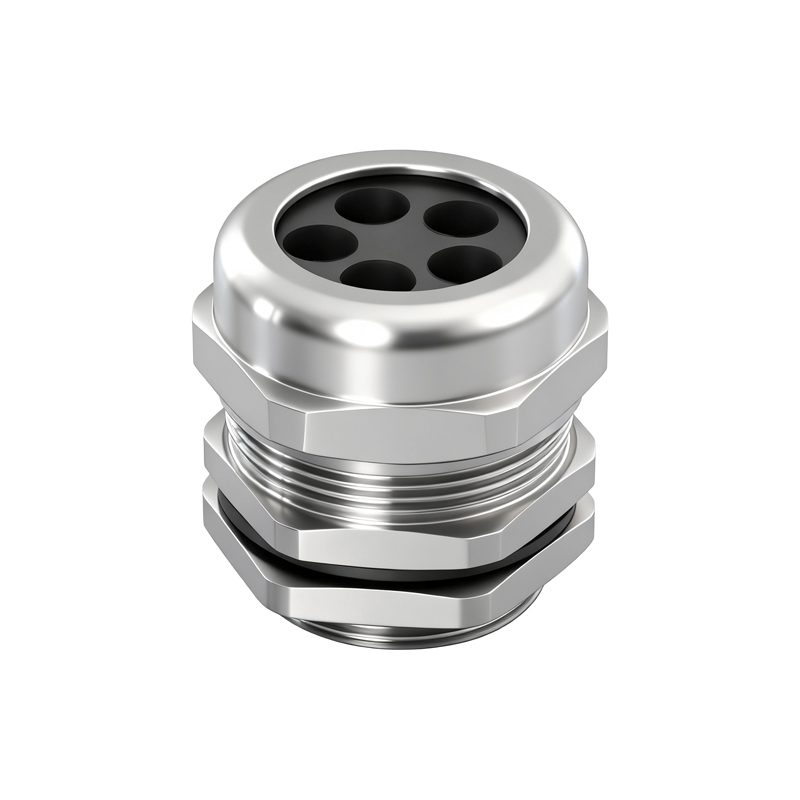

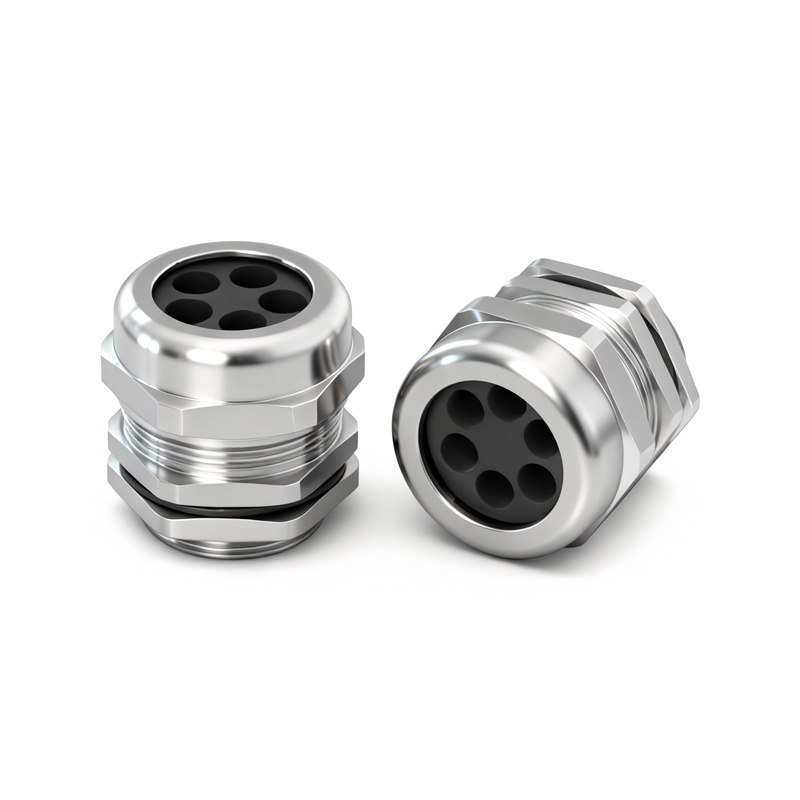

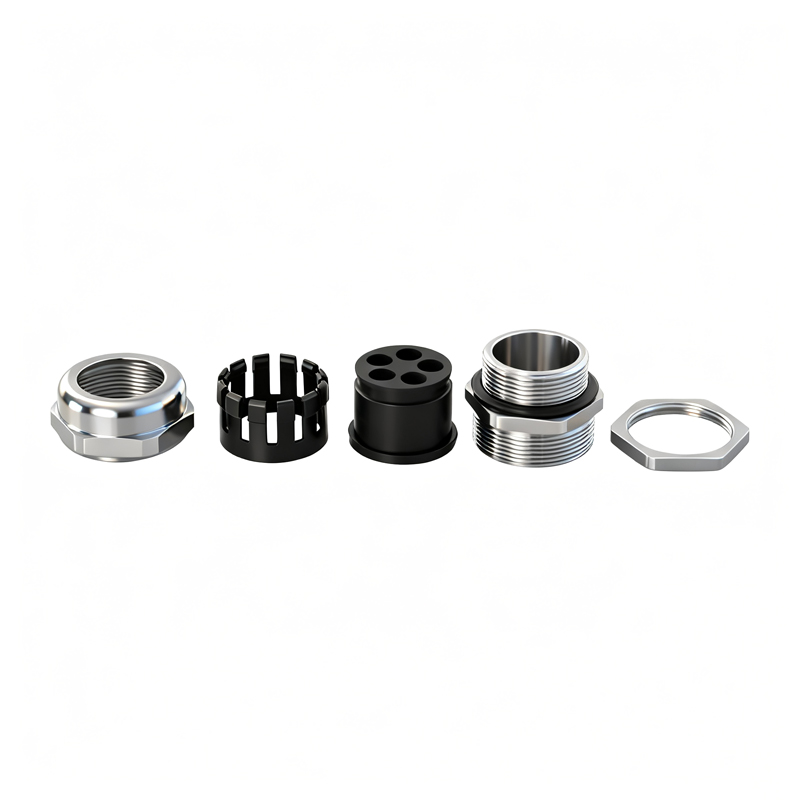

Material:SS304/316L
Claw:PA66 (Nylon)
Hermetic:Silicon Rubber
O-Ring:Silicon Rubber
Thread size：M thread, PG thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .
Protection Level : IP 68
| Model | Specification | (mm) Clamping Range | GL (mm) | |||||||
| F | H2 | H3 | H4 | H5 | H6 | H7 | H8 | |||
| YKWSD-MCH-M12 | M12x1.5 | 4.5~8 | 1.5~3 | 1.5~2.5 | 1.5~2.5 | / | / | / | / | 8 |
| YKWSD-MCH-M16 | M16x1.5 | 6~10 | 3~4 | 3~4 | 1.5~3 | 1.5~2.5 | 1.4~2 | / | / | 9 |
| YKWSD-MCH-M18 | M18x1.5 | 6~10 | 2~3.5 | 1.8~4 | 1.2~3 | 1.5~2.6 | 1~2.2 | / | / | 9 |
| YKWSD-MCH-M20 | M20x1.5 | 9~14 | 4.3~6 | 3~5 | 2.5~4.5 | 3~4 | 2~3 | 1.2~3 | 1.2~3 | 10 |
| YKWSD-MCH-M22 | M22x1.5 | 9~14 | 2.5~6 | 1.5~3.5 | 2~4.5 | / | / | / | / | 10 |
| YKWSD-MCH-M25 | M25x1.5 | 13~18 | 5.5~8 | 5~7 | 4~6 | 4.2~5.5 | 2.8~4.5 | 1.5~3.5 | 1.5~3.5 | 12 |
| YKWSD-MCH-M27 | M27x1.5 | 13~18 | 4.5~8.7 | 2~5 | 3.5~7 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 12 |
| YKWSD-MCH-M32 | M32x1.5 | 18~25 | 8.5~11 | 7.7~10 | 8~9 | 6~8 | 5.5~7 | 3~6 | / | 12 |
| YKWSD-MCH-M37 | M37x1.5 | / | 6~9 | / | 6~9 | / | 3.6~6.5. | / | / | 12.5 |
| YKWSD-MCH-M40 | M40x1.5 | 24~32 | 11~13 | 10~12 | 9~11 | 7.7~9.5 | 6.6~8 | 6~9 | / | 15 |
| YKWSD-MCH-M50 | M50x1.5 | 31~41 | / | / | / | 3~5 | / | / | / | 15 |
| YKWSD-MCH-M63 | M63x1.5 | 44~51 | 14~17 | 15~18 | / | / | / | / | / | 15 |
| YKWSD-MCH-M75 | M75x2 | 56~66 | / | / | / | / | / | / | / | 15 |
| YKWSD-MCH-M90 | M90x2 | 66~77 | / | / | / | / | / | / | / | 15 |
| Model | Specification | (mm) Clamping Range | GL (mm) | |||||||
| F | H2 | H3 | H4 | H5 | H6 | H7 | H8 | |||
| YKWSD-MCH-PG7 | PG7 | / | 1.2~3 | 1.2~2.6 | 1~2.3 | / | / | / | / | 9 |
| YKWSD-MCH-PG9 | PG9 | / | 1.6~4 | 1.2~2.6 | 1~2.3 | 1~2.5 | 1~2 | / | / | 9 |
| YKWSD-MCH-PG11 | PG11 | 6~10 | 2~3.5 | 1.6~4 | 1~2.3 | 1.5~2.6 | 1~2.2 | / | / | 10 |
| YKWSD-MCH-PG13.5 | PG13.5 | 5~11.5 | 1.5~5.3 | 1.5~3.5 | 1.7~4.2 | 1.7~4.2 | / | / | / | 10 |
| YKWSD-MCH-PG16 | PG16 | 6~14 | 2.5~6 | 1.5~3.5 | 2~4.5 | / | / | / | / | 10 |
| YKWSD-MCH-PG21 | PG21 | 7~18 | 4.5~8.7 | 2~5 | 3.5~7 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | / | 12 |
| YKWSD-MCH-PG29 | PG29 | 8~22 | 5~10 | 5~10 | 4.5~9 | 4.0~8.0 | 3.5~7 | 3~6 | / | 12 |
| Model | Specification | (mm) Clamping Range | GL (mm) | |||||||
| F | H2 | H3 | H4 | H5 | H6 | H7 | H8 | |||
| YKWSD-MCH-G1/2 | G1/2 | 5~11.5 | 1.5~5.3 | 2~5 | 1.7~4.2 | 1.2~3 | 1.2~3 | 1.2~3 | 1.2~3 | 12 |
| YKWSD-MCH-G3/4 | G3/4 | 7~18 | 4.5~8.7 | 2~5 | 3.5~7 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 12 |
| YKWSD-MCH-G1 | G1 | 8~22 | 5~10 | 5~10 | 4.5~9 | 4.0~8.0 | 3~6 | 3~6 | / | 12 |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||||||
