Material:SS304/316L/Nickel plated brass/ Zinc alloyHermetic:NBR
O-Ring:NBR
Working temperature:Static -40°C~ 100°C, short time can be upto 120°C.Dynamic-20°C ~80°C, short time can be up to 100°C.Protection
Level:IP 54

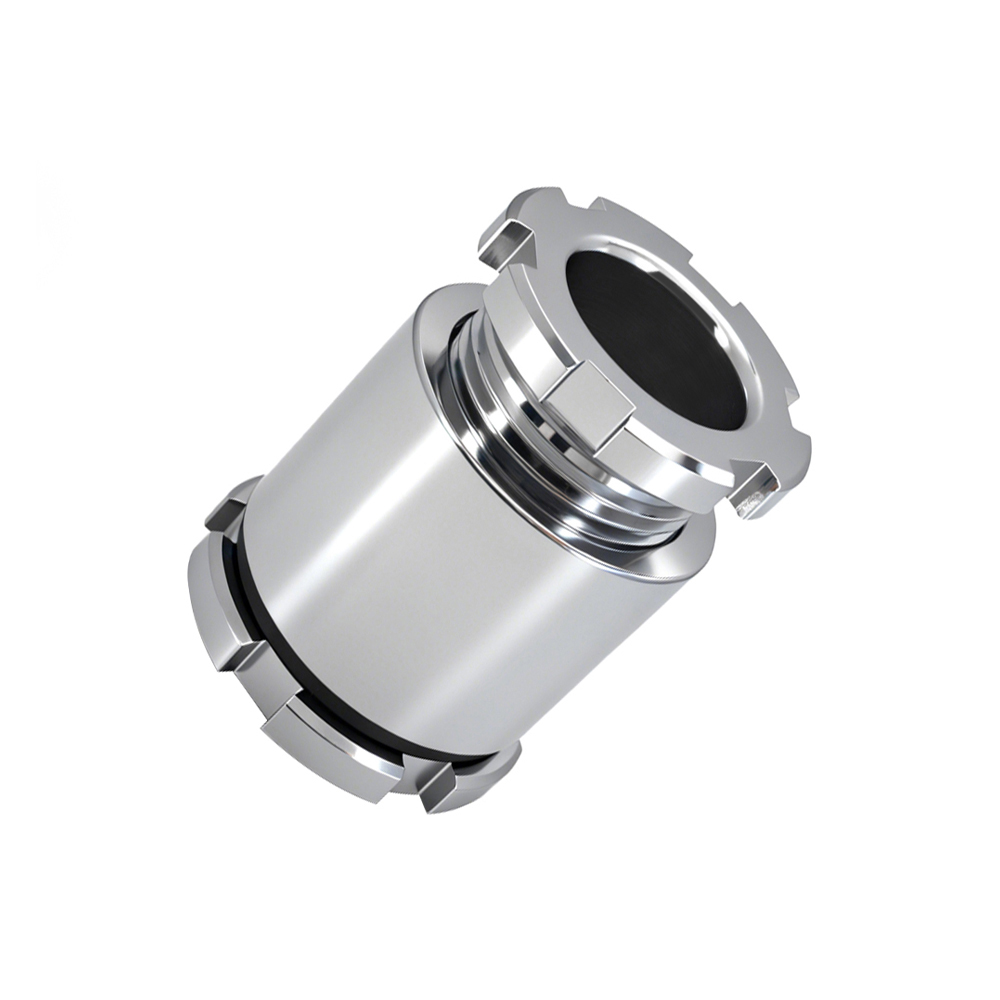

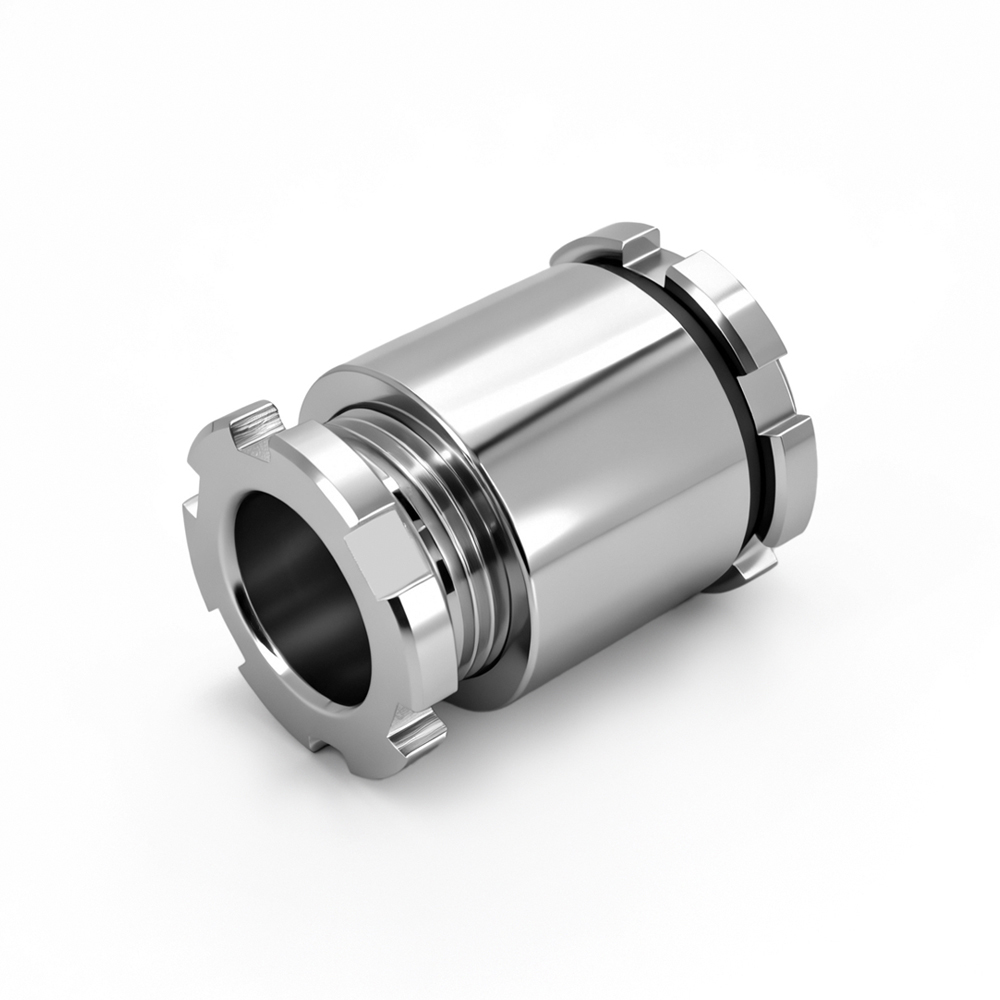

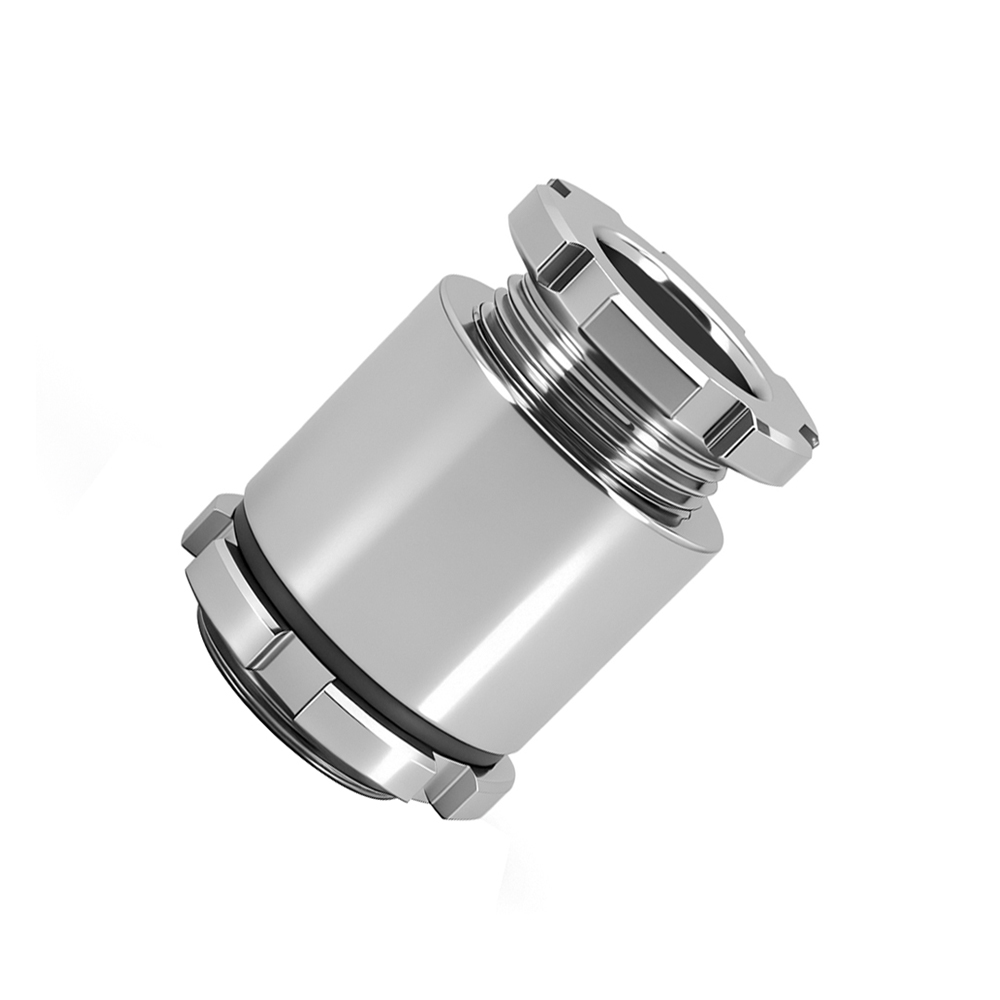

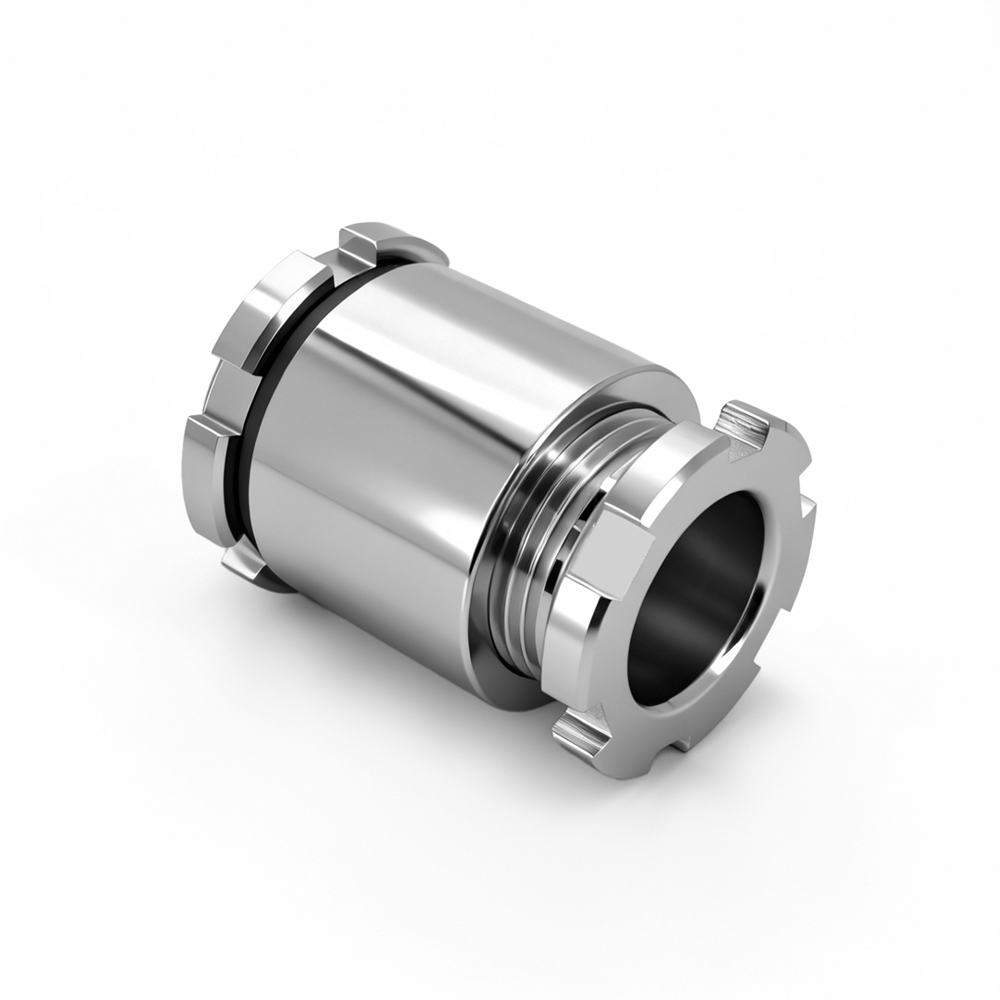

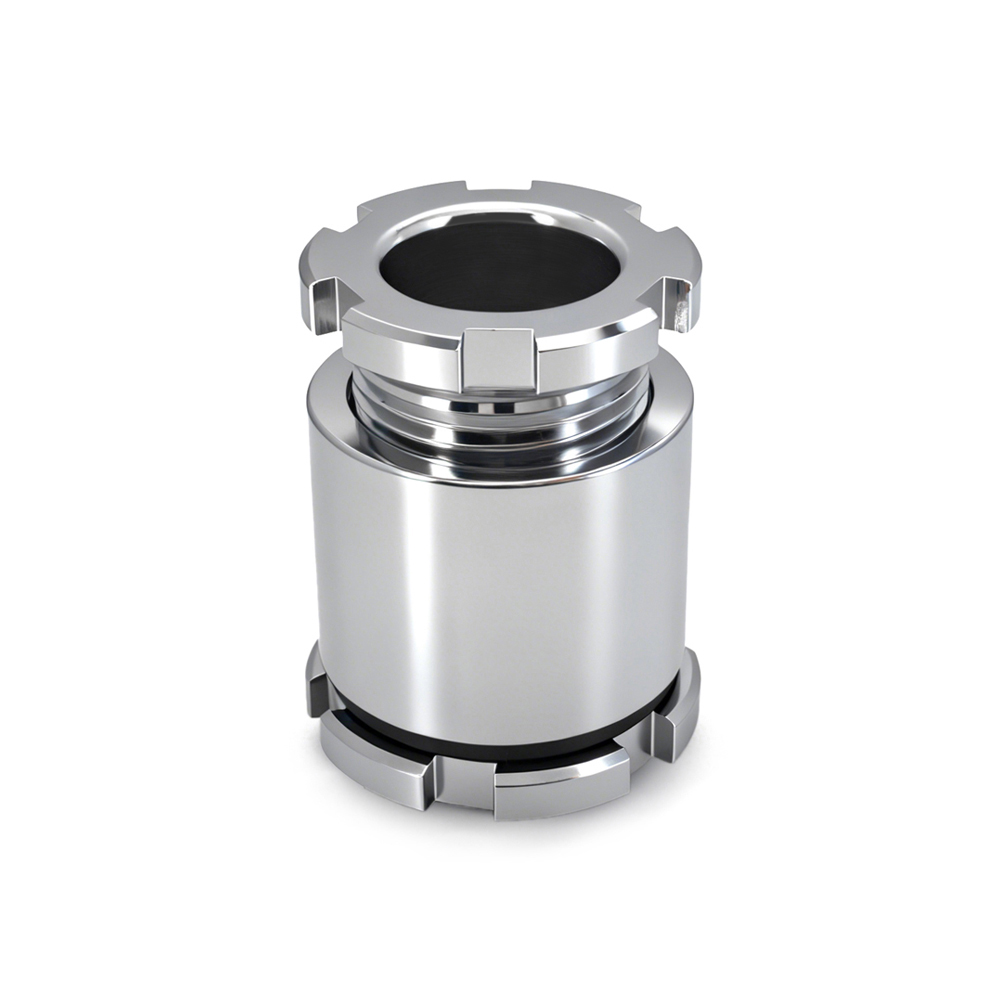

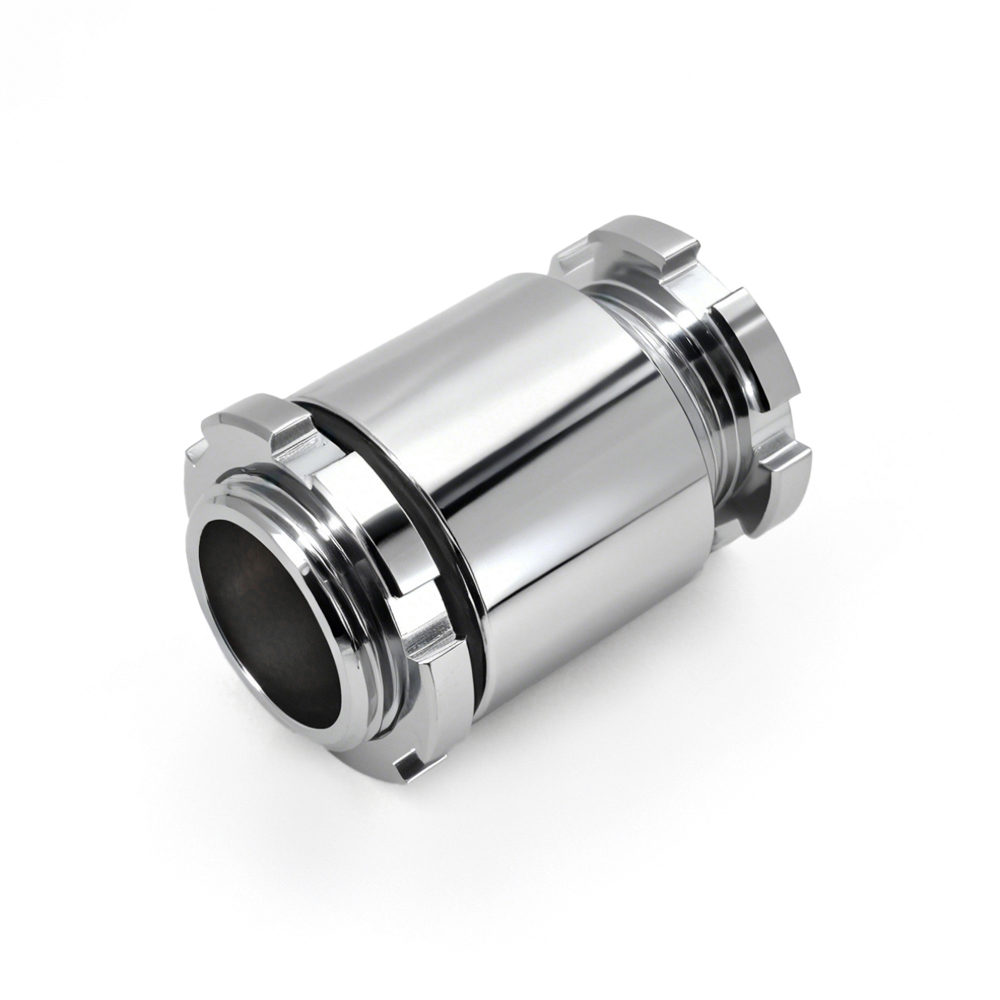

Features:Marine cable gland is a high quality cable accessorieswhich installed in the connection of explosion proof electricalequipment and cable port, with the advantage of superiorperformance of flameproof, safe and reliable structure, easyinstallation and high protection degree.Scope of application:lnstrumentation, ships, machinery,electrical,transportation, medicine, oil field, the cable fixing.
Model | Specification | Clamping Range (mm) | d Calibre(mm) | D(mm) Boby calibre | AG (mm) | Body D1(mm) | GL (mm) | H(mm) |
| YKWS/B/Z-TJ8 | TJ8-M14 | 5~7 | 8 | M16x1 | M14x1 | 20 | 9 | 41 |
| YKWS/B/Z-TJ13 | TJ13-M18 | 6~12 | 13 | M20x1 | M18x1 | 24 | 10 | 45 |
| YKWS/B/Z-TJ16 | TJ16-M22 | 11~15 | 16 | M27x1.5 | M22x1.5 | 31.5 | 12 | 52 |
| YKWS/B/Z-TJ19 | TJ19-M27 | 14~18 | 19 | M301.5 | M27x1.5 | 34.5 | 12 | 54 |
| YKWS/B/Z-TJ24 | TJ24-M30 | 17~23 | 24 | M36x1.5 | M30x1.5 | 39.6 | 12 | 56 |
| YKWS/B/Z-TJ28 | TJ28-M36 | 22~27 | 28 | M42x2 | M36x1.5 | 46.5 | 15 | 61 |
| YKWS/B/Z-TJ34 | TJ34-M42 | 26~33 | 34 | M47x2 | M42x2 | 54 | 15 | 64 |
| YKWS/B/Z-TJ42 | TJ42-M52 | 32~41 | 42 | M55x2 | M52x2 | 62 | 15 | 69 |
| YKWS/B/Z-TJ50 | TJ50-M58 | 40~49 | 50 | M62x2 | M58x2 | 68.5 | 15 | 71 |
| YKWS/B/Z-TJ58 | TJ58-M68 | 48~57 | 58 | M71x2 | M68x2 | 77.5 | 20 | 76 |
Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||||
