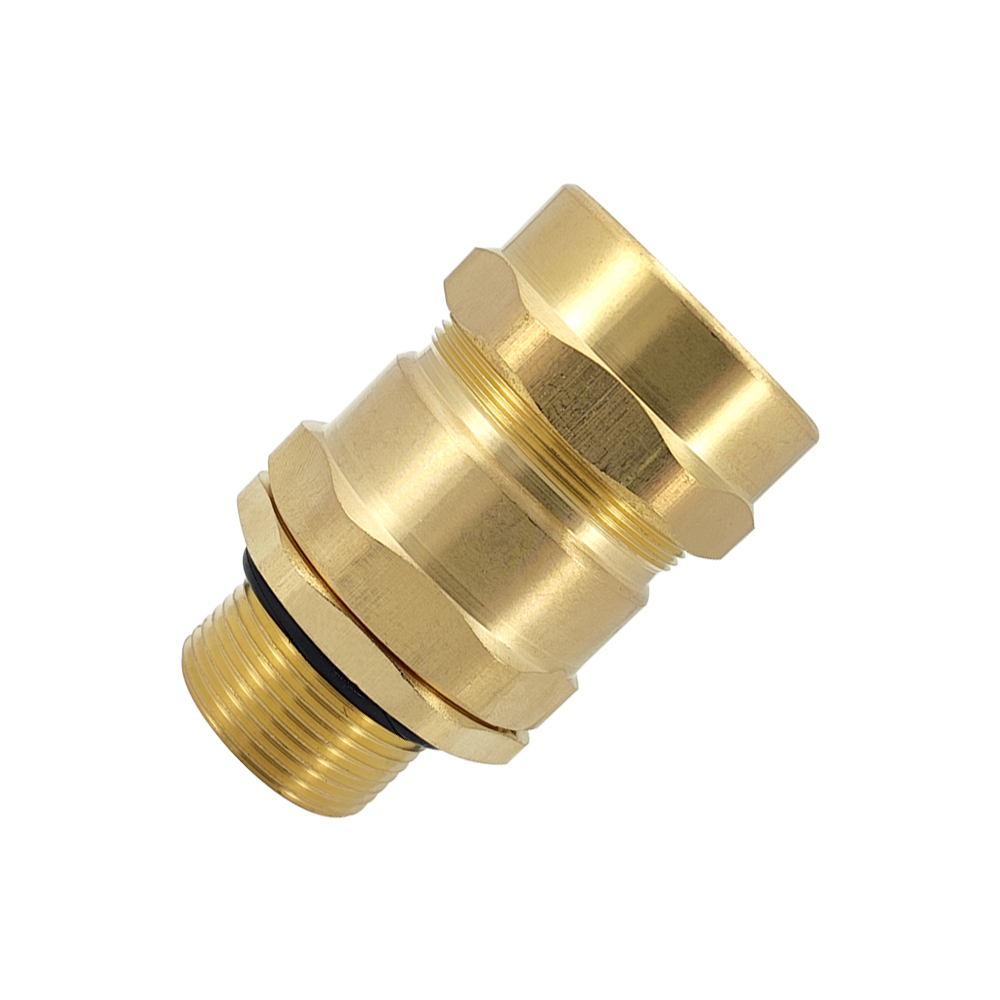

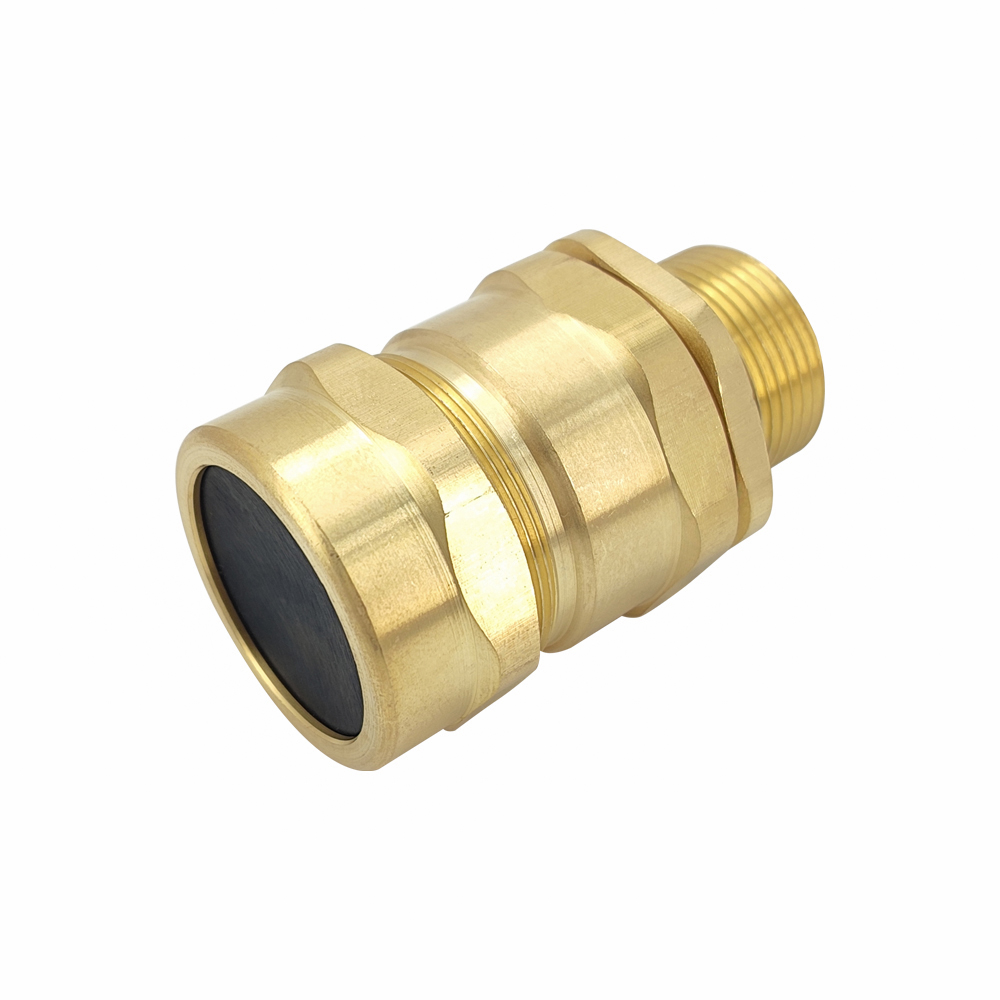

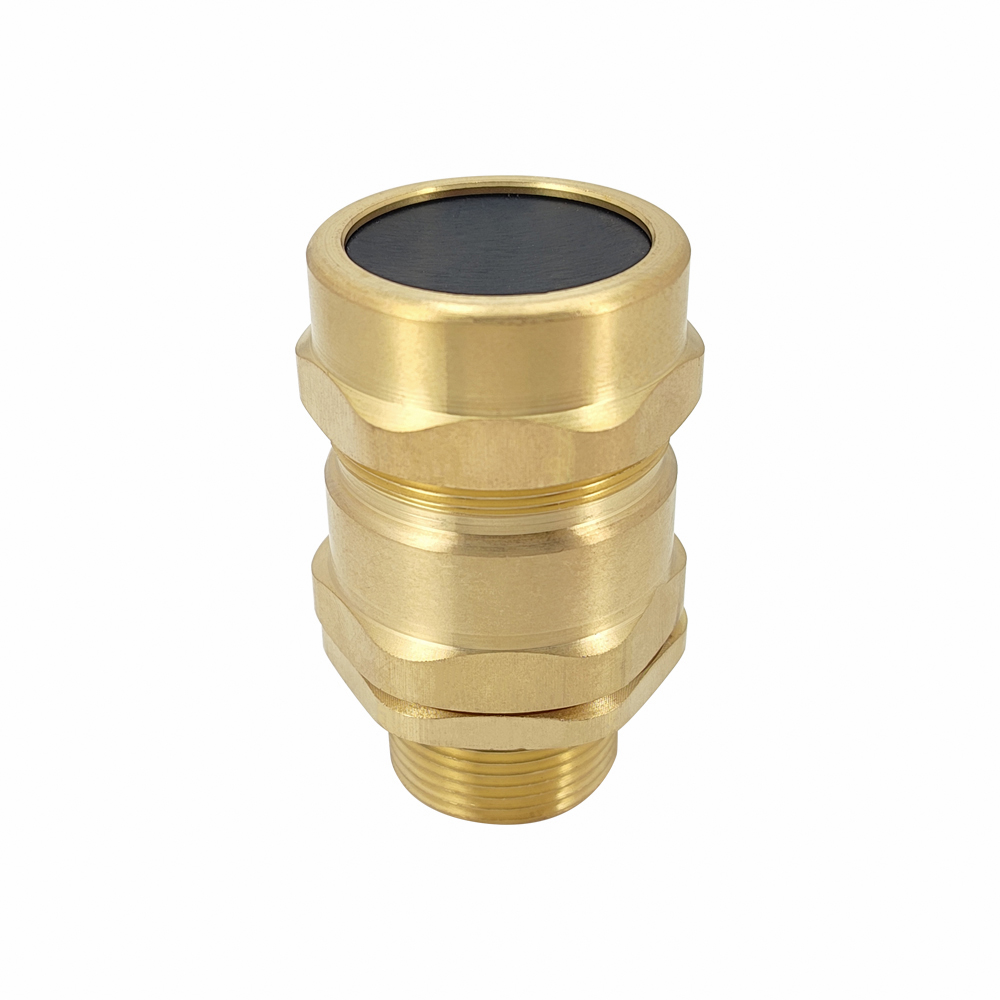

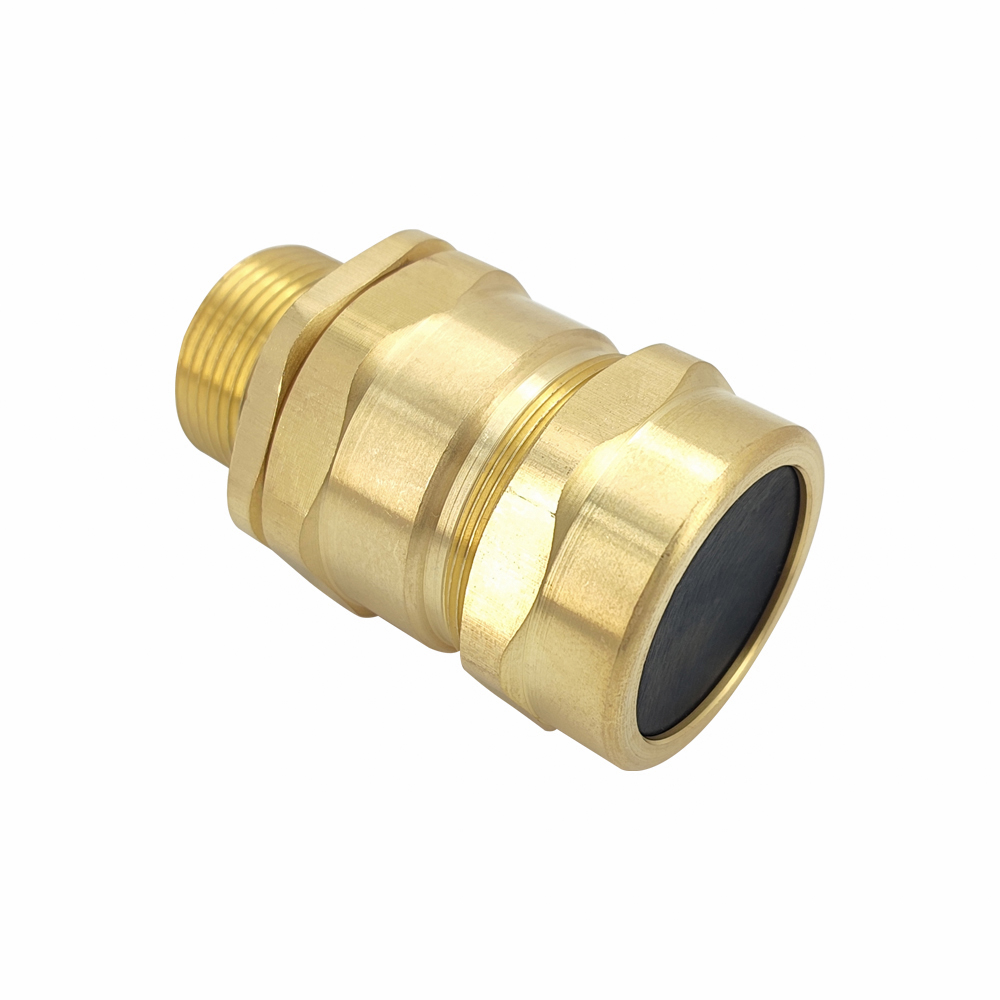

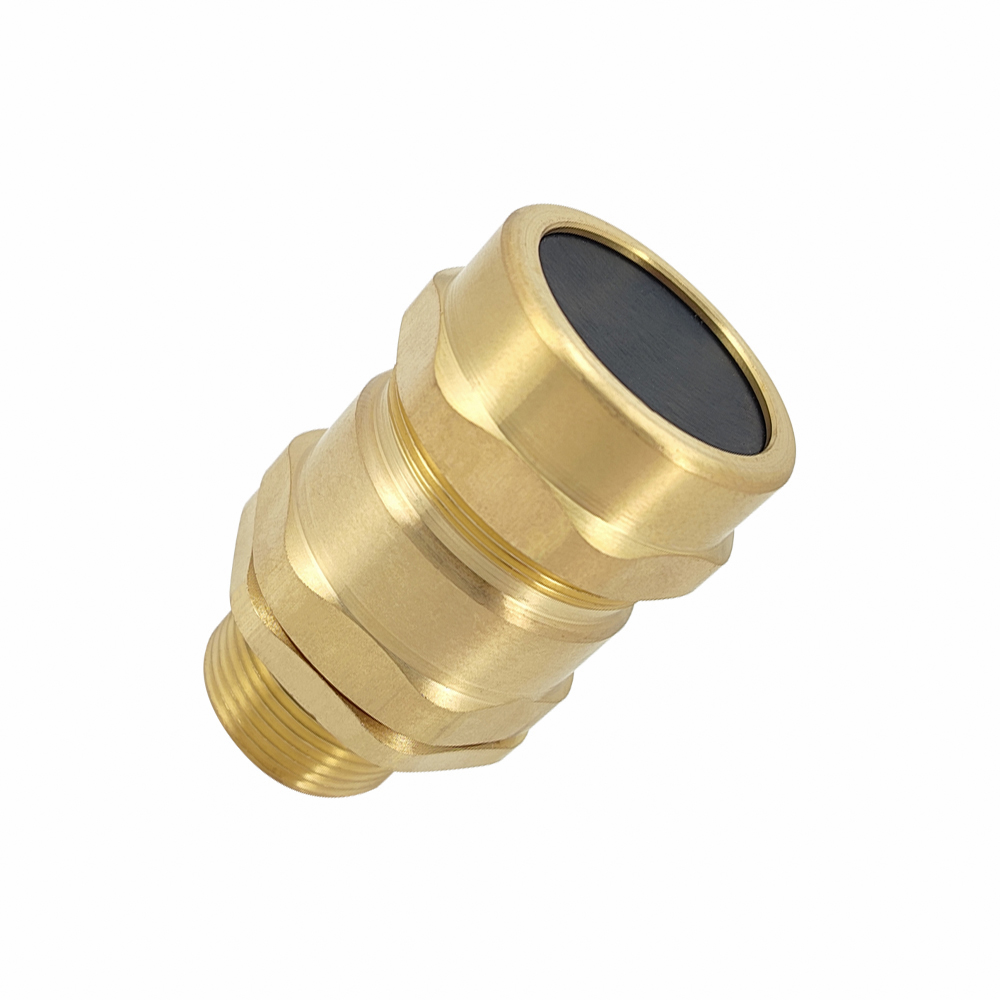

Material:SS304/316L/Nickel plated brass
Hermetic:Silicon Rubber
Thread size:M thread
Flame retardant degree:UL94-V0
Working temperature:Static -60 ℃ ~ +100 ℃ , short time can be up to + 120 ℃ . Protection Level:IP 66
Features:Increase flood control external meter seal, with advanced CNC machine tools finishing materials made of flameproof bushings and inside and outside built-drogue proof function, good protective performance, with fast installation, safe and reliable armor.
| Model | Specification | Thread size | Bedding Φ (mm) Max (A) | Clamping Range(mm) | Thread Length (mm) | Total Length (mm) | A/F Hexagon (mm) | |
| YKW-CW20SS | CW20SS | M20×1.5 | 8.6 | 8 | 13.5 | 10 | 48 | 24 |
| YKW-CW20S | CW20S | M20×1.5 | 11.8 | 12 | 16 | 10 | 48 | 24 |
| YKW-CW20L | CW20L | M20×1.5 | 14 | 15.5 | 20.5 | 10 | 51 | 27 |
| YKW-CW25S | CW25S | M25×1.5 | 17.8 | 18 | 23.8 | 10 | 58 | 30 |
| YKW-CW25L | CW25L | M25×1.5 | 19.9 | 20.3 | 27 | 10 | 60 | 34 |
| YKW-CW32S | CW32S | M32×1.5 | 24 | 23.5 | 30.5 | 10 | 66 | 38 |
| YKW-CW32L | CW32L | M32×1.5 | 26.2 | 26 | 33.5 | 10 | 68 | 41 |
| YKW-CW40S | CW40S | M40×1.5 | 29.4 | 30.4 | 36 | 15 | 77 | 45 |
| YKW-CW40L | CW40L | M40×1.5 | 32.4 | 33.5 | 41 | 15 | 77 | 50 |
| YKW-CW50S | CW50S | M50×1.5 | 38.2 | 39.5 | 46.3 | 15 | 82 | 58 |
| YKW-CW50L | CW50L | M50×1.5 | 44.1 | 45 | 53.1 | 15 | 82 | 64 |
| YKW-CW63S | CW63S | M63×1.5 | 50.5 | 50 | 59 | 15 | 88 | 70 |
| YKW-CW63L | CW63L | M63×1.5 | 55.5 | 58.5 | 66 | 15 | 88 | 77 |
| YKW-CW75S | CW75S | M75×1.5(2) | 62 | 62 | 72 | 15 | 100 | 85 |
| YKW-CW75L | CW75L | M75×1.5(2) | 68 | 71 | 78 | 15 | 100 | 91 |
| YKW-CW90 | CW90 | M90×1.5(2) | 80 | 81 | 90.5 | 20 | 115 | 105 |
