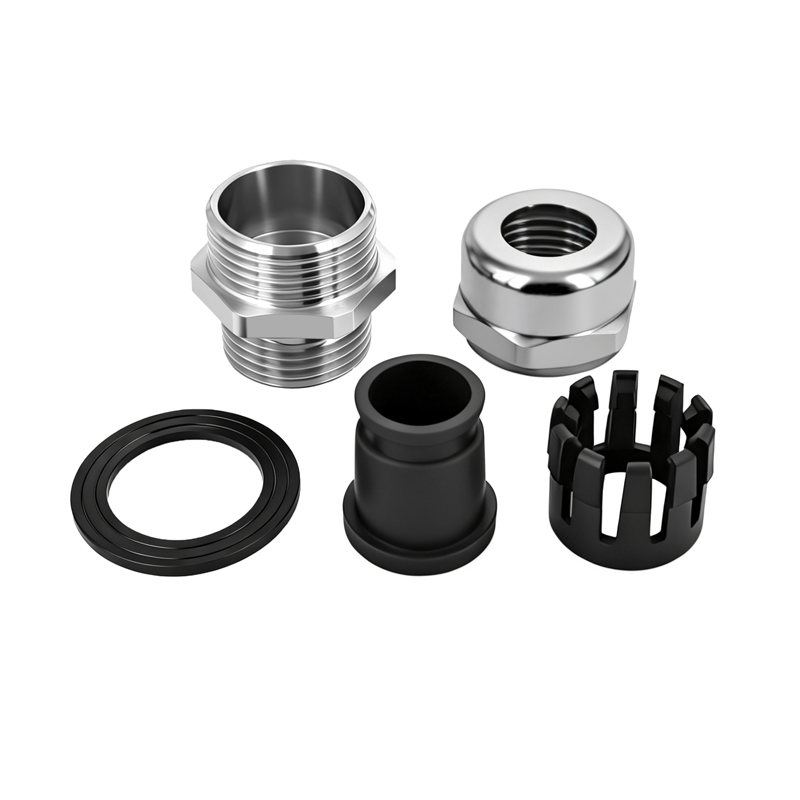

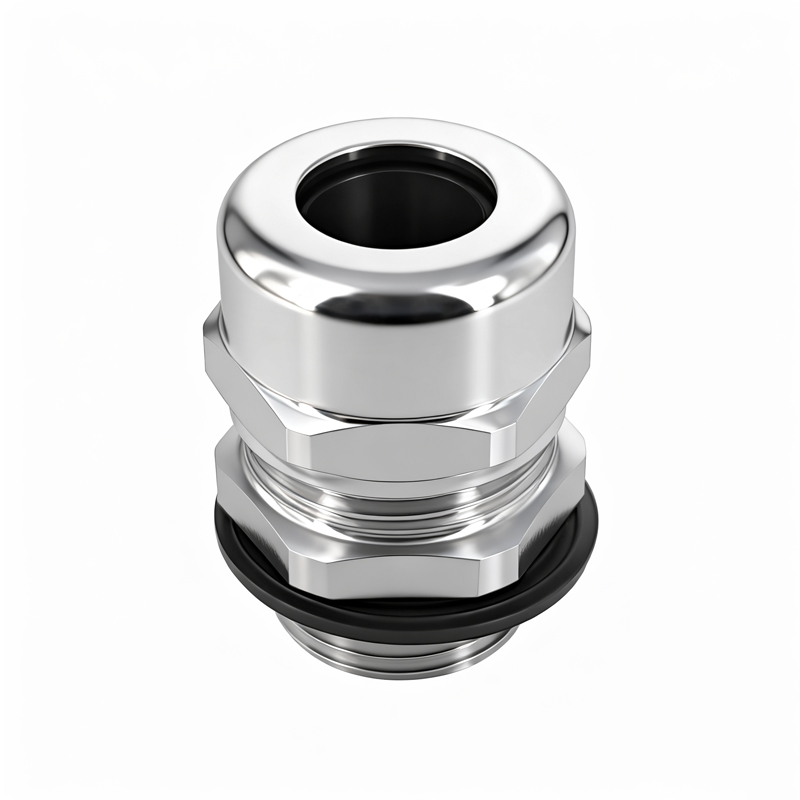

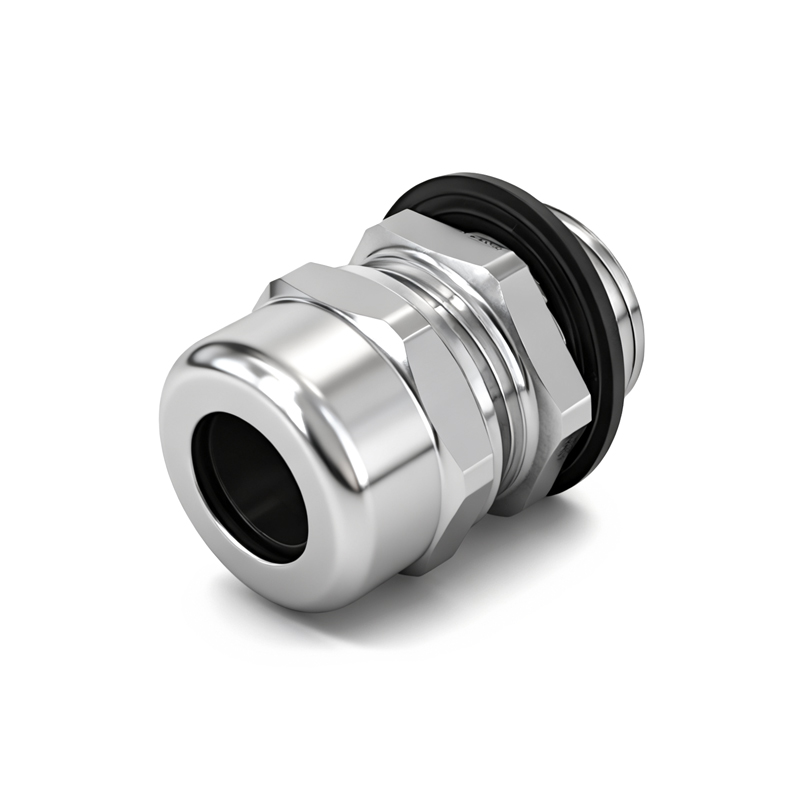

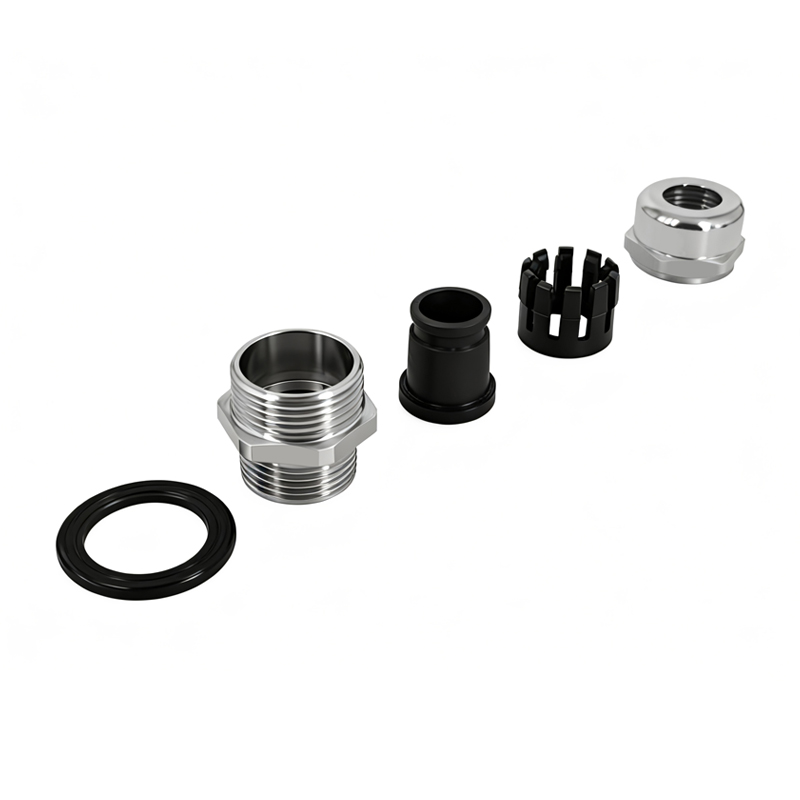

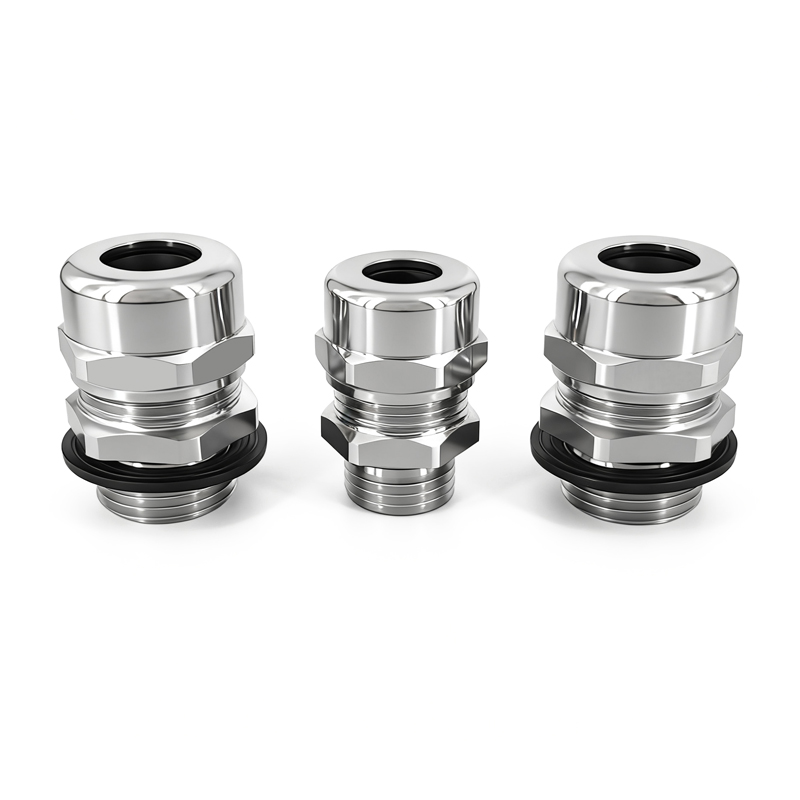

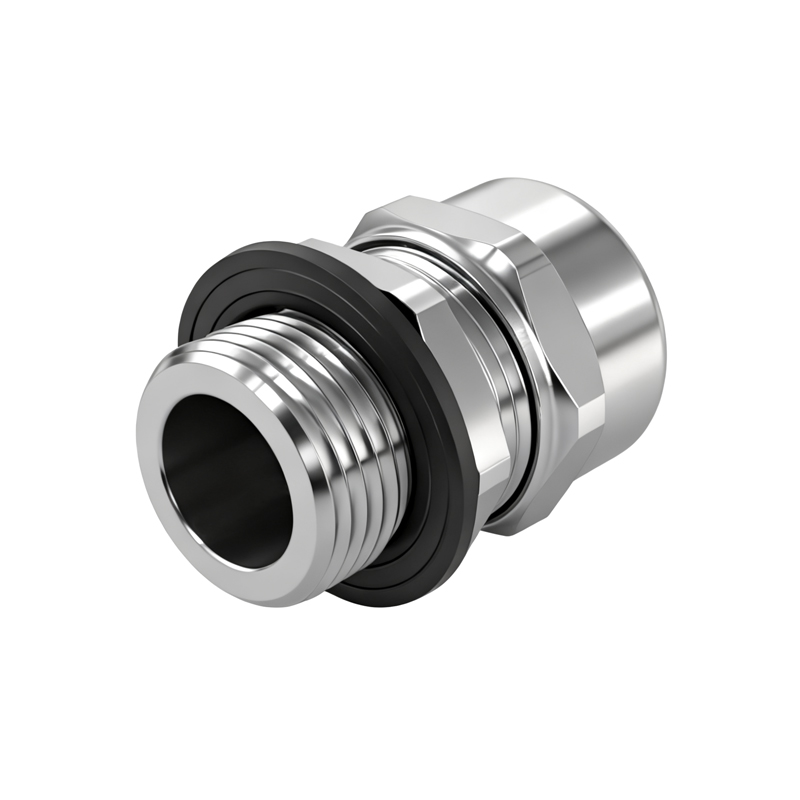

Material:SS304/316L
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Thread size:M thread, PG thread, G thread, NPT thread
Working temperature:Static -40 ℃ ~ +100 ℃ , short time can be up to + 120 ℃ . Protection Level:IP66
Features:Increase flood control external meter seal, with advanced CNC machine tools finishing materials made of flameproof bushings and inside and outside built-drogue proof function, good protective performance, with fast installation, safe and reliable armor.
Model | Specification | Clamping Range(mm) | AG (mm) | GL (mm) | Wrench Size (mm) |
| YKWSD-nEx-M6 | M6*1.0 | 1.5~3 | 6 | 6 | 10 |
| YKWSD-nEx-M8 | M8*1.25(1.0) | 2~4 | 8 | 6 | 12 |
| M8*1.25(1.0) | 3~6.3 | 8 | 6 | 14 | |
| YKWSD-nEx-M10 | M10*1.0(1.5) | 3~6.3 | 10 | 6 | 14 |
| YKWSD-nEx-M11 | M11-1.0 | 3~6.3 | 11 | 8 | 14 |
| YKWSD-nEx-M12 | M12*1.5 | 3~6.3 | 12 | 9 | 14 |
| M12*1.5 | 3~5.3 | 12 | 9 | 17 | |
| M12*1.5 | 4.5~7.8 | 12 | 9 | 17 | |
| YKWSD-nEx-M14 | M14*1.5 | 4.5~7.8 | 14 | 9 | 17 |
| YKWSD-nEx-M16 | M16*1.5 | 4.5~7.8 | 16 | 9 | 19/17 |
| M16*1.5 | 4~7 | 16 | 9 | 20 | |
| M16*1.5 | 6~10 | 16 | 9 | 20 | |
| YKWSD-nEx-M18 | M18*1.5 | 6~10 | 18 | 9 | 20 |
| YKWSD-nEx-M20 | M20*1.5 | 5.5~9 | 20 | 10 | 24 |
| M20*1.5 | 6~10 | 20 | 10 | 24 | |
| M20*1.5 | 8~12 | 20 | 10 | 24 | |
| M20*1.5 | 9~14 | 20 | 12 | 26 | |
| M20*1.5 | 12~16 | 20 | 12 | 26/27 | |
| YKWSD-nEx-M21 | M21*1.5 | 8~12 | 21 | 10 | 24 |
| M21*1.5 | 9~14 | 21 | 12 | 26 | |
| YKWSD-nEx-M22 | M22*1.5 | 9~14 | 22 | 12 | 26 |
| YKWSD-nEx-M24 | M24*1.5 | 9~14 | 24 | 12 | 26 |
| YKWSD-nEx-M25 | M25*1.5 | 7~10 | 25 | 13 | 30/31 |
| M25*1.5 | 10~14 | 25 | 13 | 30/31 | |
| M25*1.5 | 12~16 | 25 | 13 | 30/31 | |
| M25*1.5 | 14~18 | 25 | 13 | 30/31 | |
| YKWSD-nEx-M27 | M27*1.5(2.0) | 14~18 | 27 | 13 | 30/31 |
| YKWSD-nEx-M30 | M30*1.5(2.0) | 14~18 | 30 | 13 | 34/31 |
| YKWSD-nEx-M32 | M32*1.5 | 14~18 | 32 | 13 | 30/40 |
| M32*1.5 | 16~22 | 32 | 13 | 38/40 | |
| M32*1.5 | 18~25 | 32 | 13 | 38/40 | |
| YKWSD-nEx-M33 | M33*1.5(2.0) | 18~25 | 33 | 15 | 38/40 |
| YKWSD-nEx-M36 | M36*1.5(2.0) | 18~25 | 36 | 15 | 40 |
| YKWSD-nEx-M40 | M40*1.5 | 21~25 | 40 | 15 | 50 |
| M40*1.5 | 24~30 | 40 | 15 | 50 | |
| YKWSD-nEx-M42 | M42*2.0 | 24~30 | 42 | 15 | 50 |
| YKWSD-nEx-M48 | M48*2.0 | 24~30 | 48 | 15 | 54/50 |
| YKWSD-nEx-M50 | M50*1.5 | 26~32 | 50 | 15 | 60 |
| M50*1.5 | 31~41 | 50 | 15 | 60 | |
| YKWSD-nEx-M60 | M60*2.0 | 36~44 | 60 | 15 | 70/65 |
| YKWSD-nEx-M63 | M63*1.5 | 36~44 | 63 | 15 | 70/65 |
| M63*1.5 | 40~46 | 63 | 15 | 70/65 | |
| M63*1.5 | 46~54 | 63 | 15 | 75/70 | |
| YKWSD-nEx-M64 | M64*2.0 | 36~44 | 64 | 15 | 70/65 |
| M64*2.0 | 46~54 | 64 | 15 | 76/70 | |
| YKWSD-nEx-M72 | M72*2.0 | 46~54 | 72 | 15 | 80/75 |
| M72*2.0 | 50~60 | 72 | 15 | 80/75 | |
| YKWSD-nEx-M75 | M75*2.0 | 56~66 | 75 | 15 | 90 |
| YKWSD-nEx-M80 | M80*2.0 | 50~60 | 80 | 15 | 90/76 |
| M80*2.0 | 56~66 | 80 | 15 | 90 | |
| YKWSD-nEx-M90 | M90*2.0 | 66~77 | 90 | 15 | 100 |
| YKWSD-nEx-M100 | M100*2.0 | 75~80 | 100 | 20 | 100 |
| YKWSD-nEx-PG7 | PG7 | 3~6.3 | 12.50 | 8 | 14 |
| PG7 | 3~5.3 | 12.50 | 9 | 17 | |
| PG7 | 4.5~7.8 | 12.50 | 9 | 17 | |
| YKWSD-nEx-PG9 | PG9 | 3~5.3 | 15.20 | 9 | 17 |
| PG9 | 4.5~7.8 | 15.20 | 9 | 17 | |
| YKWSD-nEx-PG11 | PG11 | 4~7 | 18.60 | 9 | 20 |
| PG11 | 6~10 | 18.60 | 9 | 20 | |
| YKWSD-nEx-PG13.5 | PG13.5 | 5.5~9 | 20.40 | 10 | 24 |
| PG13.5 | 7~11.3 | 20.40 | 10 | 24 | |
| PG13.5 | 8~12 | 20.40 | 10 | 24 | |
| YKWSD-nEx-PG16 | PG16 | 7~11.3 | 22.50 | 12 | 26 |
| PG16 | 9~14 | 22.50 | 12 | 26 | |
| YKWSD-nEx-PG21 | PG21 | 12~16 | 28.30 | 13 | 32/31 |
| PG21 | 14~18 | 28.30 | 13 | 32/31 | |
| YKWSD-nEx-PG29 | PG29 | 16~22 | 37.00 | 13 | 42/40 |
| PG29 | 18~25 | 37.00 | 13 | 42/40 | |
| YKWSD-nEx-PG36 | PG36 | 18~25 | 47.00 | 15 | 54/50 |
| PG36 | 24~30 | 47.00 | 15 | 54/50 | |
| YKWSD-nEx-PG42 | PG42 | 26~32 | 54.00 | 15 | 60 |
| PG42 | 31~41 | 54.00 | 15 | 60 | |
| YKWSD-nEx-PG48 | PG48 | 38~44 | 59.30 | 15 | 70/65 |
| PG48 | 46~54 | 59.30 | 15 | 76/70 | |
| YKWSD-nEx-NPT3/8 | NPT3/8 | 3~5.3 | 17.05 | 9 | 17 |
| NPT3/8 | 4~8 | 17.05 | 9 | 17 | |
| NPT3/8 | 3~6.3 | 17.05 | 9 | 20 | |
| NPT3/8 | 6~10 | 17.05 | 9 | 20 | |
| YKWSD-nEx-NPT1/2 | NPT1/2 | 5.5~9 | 21.22 | 11 | 24 |
| NPT1/2 | 8.5~12 | 21.22 | 11 | 24 | |
| YKWSD-nEx-NPT3/4 | NPT3/4 | 10~14 | 26.56 | 12 | 24 |
| NPT3/4 | 12~16 | 26.56 | 13 | 30/31 | |
| NPT3/4 | 14~18 | 26.56 | 13 | 30/31 | |
| YKWSD-nEx-NPT1 | NPT1 | 18~25 | 33.23 | 15 | 38/40 |
| NPT1 | 15~22 | 33.23 | 15 | 38/40 | |
| YKWSD-nEx-NPT1-1/4 | NPT1-1/4 | 18~25 | 41.98 | 15 | 50 |
| NPT1-1/4 | 24~30 | 41.98 | 15 | 50 | |
| YKWSD-nEx-NPT1-1/2 | NPT1-1/2 | 18~25 | 48.05 | 15 | 54/50 |
| NPT1-1/2 | 24~30 | 48.05 | 15 | 54/50 | |
| YKWSD-nEx-NPT2 | NPT2 | 38~44 | 60.09 | 15 | 70/65 |
| YKWSD-nEx-G1/4 | G1/4 | 3~6.3 | 13.15 | 9 | 17 |
| G1/4 | 4.5~7.8 | 13.15 | 9 | 17 | |
| YKWSD-nEx-G3/8 | G3/8 | 3~5.3 | 16.66 | 9 | 20/17 |
| G3/8 | 4~8 | 16.66 | 9 | 20/17 | |
| G3/8 | 6~10 | 16.66 | 9 | 20 | |
| YKWSD-nEx-G1/2 | G1/2 | 5.5~9 | 20.99 | 10 | 24 |
| G1/2 | 7~11.3 | 20.99 | 10 | 24 | |
| G1/2 | 8.5~12 | 20.99 | 10 | 24 | |
| G1/2 | 10~14 | 20.99 | 12 | 26 | |
| YKWSD-nEx-G3/4 | G3/4 | 10~14 | 26.44 | 13 | 26/30 |
| G3/4 | 12~16 | 26.44 | 13 | 30/31 | |
| G3/4 | 14~18 | 26.44 | 13 | 30/31 | |
| YKWSD-nEx-G1 | G1 | 18~25 | 33.25 | 15 | 38/40 |
| G1 | 15~22 | 33.25 | 15 | 38/40 | |
| YKWSD-nEx-G1-1/4 | G1-1/4 | 18~25 | 41.91 | 15 | 50 |
| G1-1/4 | 24~30 | 41.91 | 15 | 50 | |
| YKWSD-nEx-G1-1/2 | G1-1/2 | 18~25 | 47.80 | 15 | 54/50 |
| G1-1/2 | 24~30 | 47.80 | 15 | 54/50 | |
| YKWSD-nEx-G2 | G2 | 38~44 | 59.61 | 15 | 70/65 |
| YKWSD-nEx-G2-1/2 | G2-1/2 | 56~66 | 75.18 | 15 | 90/85 |
| Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | |||||
