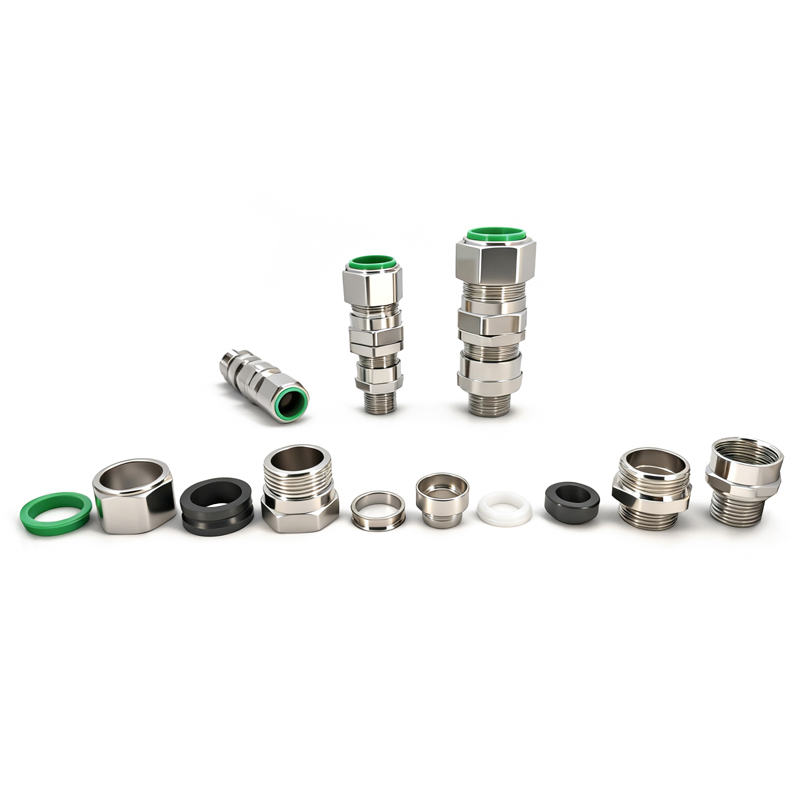

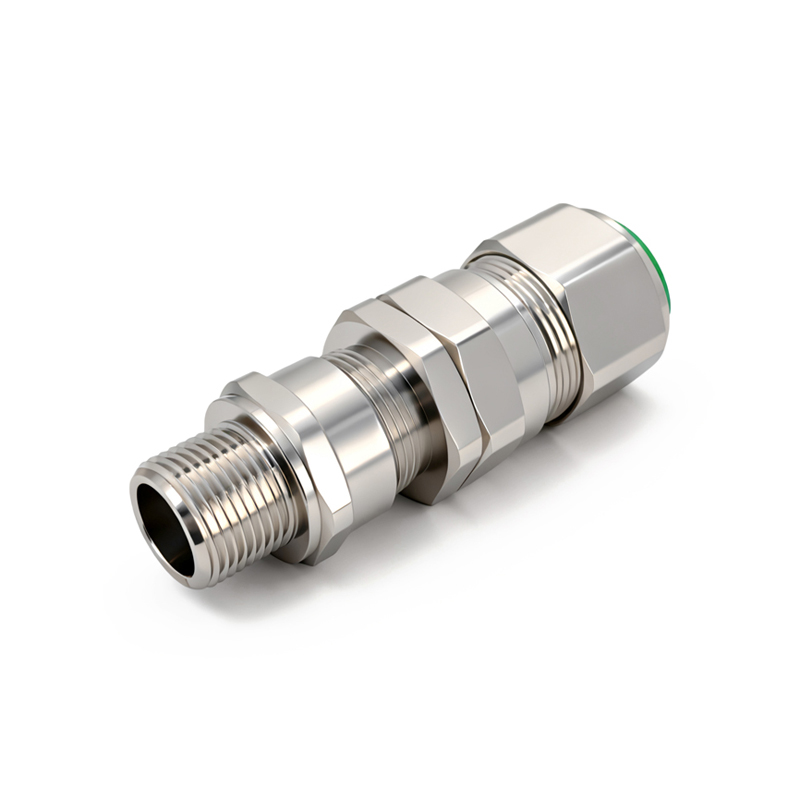

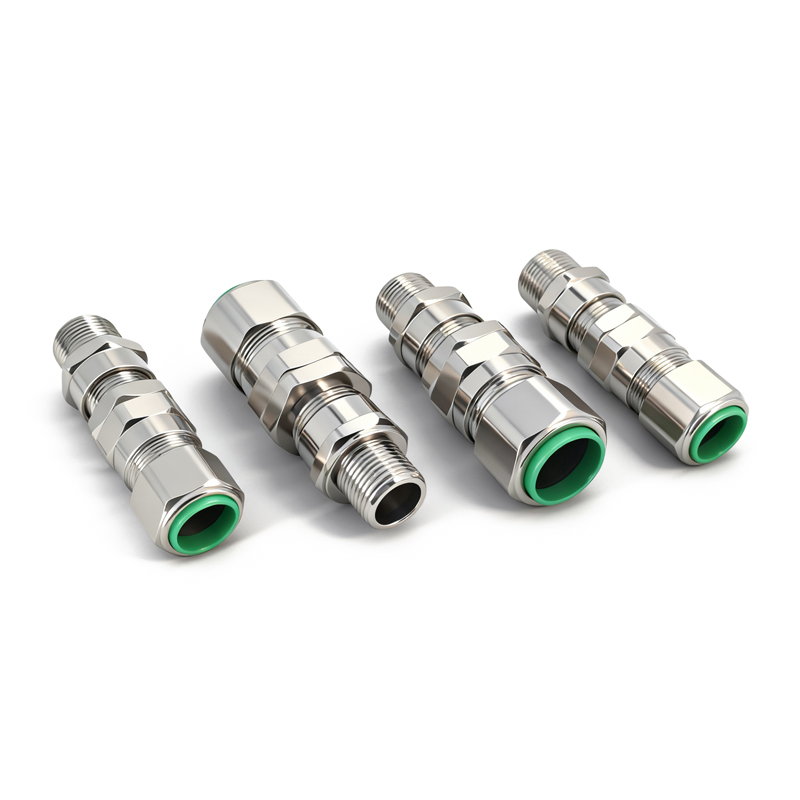

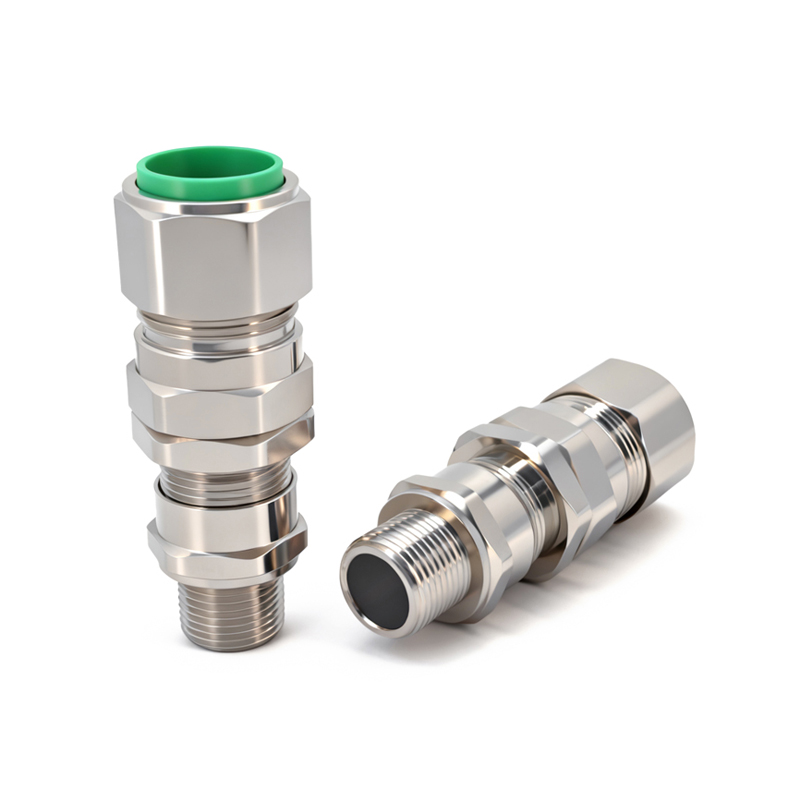

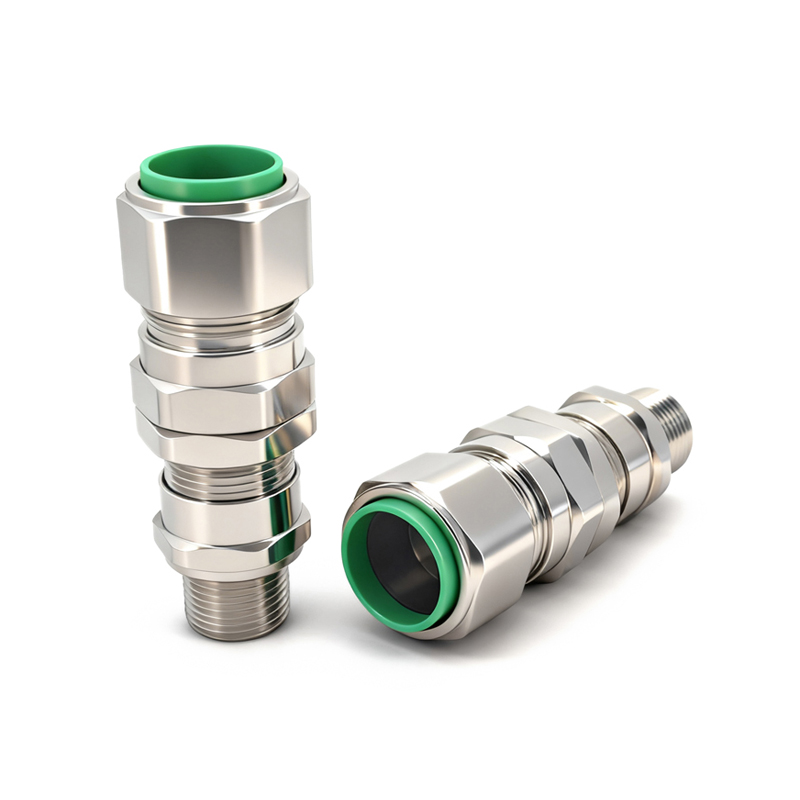

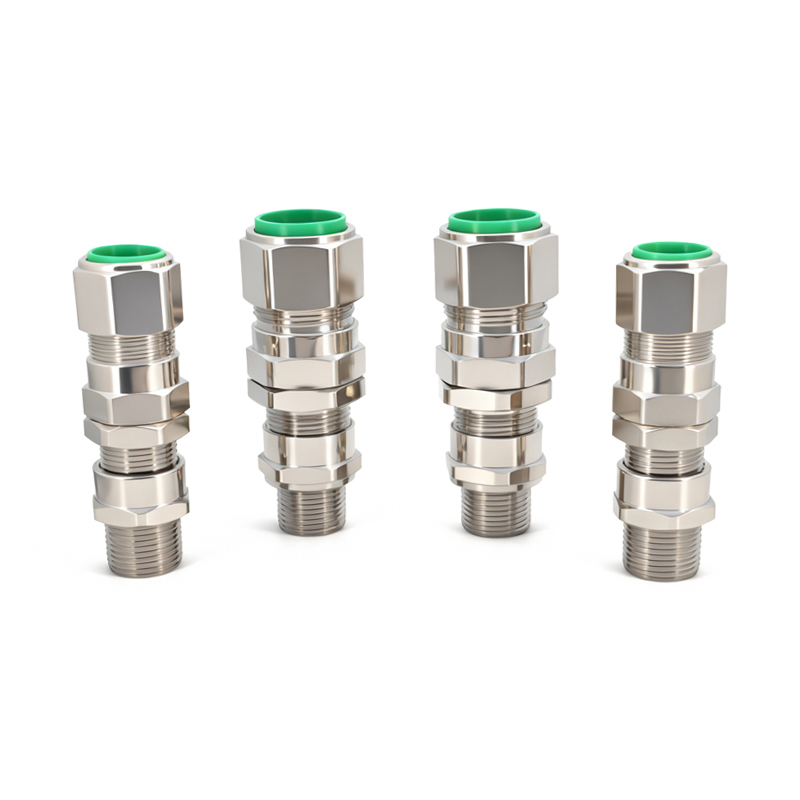

Material:SS304/316L/Nickel plated brass
Claw:PA66 (Nylon)
Hermetic:Silicon Rubber
O-Ring:Silicon Rubber
Thread size:M thread
Flame retardant degree:UL94-V0
Working temperature:Static -60 ℃ ~ +100 ℃ , short time can be up to + 120 ℃ . Protection Level:IP 66
Features:Increase flood control external meter seal, with advanced CNC machine tools finishing materials made of flameproof bushings and inside and outside built-drogue proof function, good protective performance, with fast installation, safe and reliable armor.
| Cable Gland Size | Available Entry Threads 'C'(Alternate Metric Thread Lengths Available) | Cable Beding Diameter | Overall Cable Diameter 'B' | Armour Range | Across Flats 'D′ | Across Corners 'D' | Protrusion Length 'F' | |||||||
| Standard | Option | |||||||||||||
| Metric | Thread Length(Metric)'E' | NPT | Thread Length (NPT)'E′ | NPT | Min | Max | Min | Max | Min | Max | Max | Max | ||
| 20S16 | M20 | 15.0 | 1/2' | 19.9 | 34" | 3.1 | 8.6 | 6.1 | 13.1 | 0.8 | 1.25 | 24.0 | 26.4 | 72.5 |
| 20S | M20 | 15.0 | 1/2' | 19.9 | 3/4" | 6.1 | 11.6 | 9.5 | 15.9 | 0.8 | 1.25 | 24.0 | 26.4 | 70.0 |
| 20 | M20 | 15.0 | /2' | 19.9 | 3/4" | 6.5 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 30.5 | 33.6 | 73.0 |
| 25S | M25 | 15.0 | 34' | 20.2 | 1" | 11.1 | 19.9 | 14.0 | 22.0 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 |
| 25 | M25 | 15.0 | 34' | 20.2 | 1" | 11.1 | 19.9 | 18.2 | 26.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 |
| 32 | M32 | 15.0 | I' | 25.0 | 1/4" | 17.0 | 26.2 | 23.7 | 33.9 | 1.6 | 2.0 | 46.0 | 50.6 | 86.0 |
| 40 | M40 | 15.0 | 11/4' | 25.6 | 1/2" | 22.0 | 32.1 | 27.9 | 40.4 | 1.6 | 2.0 | 55.0 | 60.5 | 90.0 |
| 50S | M50 | 15.0 | 11/2' | 26.1 | 2" | 29.5 | 38.1 | 35.2 | 46.7 | 2.0 | 2.5 | 60.0 | 66.0 | 91.0 |
| 50 | M50 | 15.0 | 2' | 26.9 | 21/2" | 35.6 | 44.0 | 40.4 | 53.0 | 2.0 | 2.5 | 70.1 | 77.1 | 95.0 |
| 63S | M63 | 15.0 | 2' | 26.9 | 21/2” | 40.1 | 49.9 | 45.6 | 59.4 | 2.0 | 2.5 | 75.0 | 82.5 | 102.0 |
| 63 | M63 | 15.0 | 21/2' | 39.9 | 3” | 47.2 | 55.9 | 54.6 | 65.8 | 2.0 | 2.5 | 80.0 | 88.0 | 104.0 |
| 75S | M75 | 15.0 | 21/2’ | 39.9 | 3” | 52.8 | 61.9 | 59.0 | 72.0 | 2.0 | 2.5 | 90.0 | 99.0 | 115.0 |
| 75 | M75 | 15.0 | 3' | 41.5 | 31/2" | 59.1 | 67.9 | 66.7 | 78.4 | 2.5 | 3.0 | 100.0 | 10.0 | 117.0 |
| 90 | M90 | 24.0 | 31/2’ | 42.8 | 4” | 66.6 | 78.6 | 76.2 | 90.3 | 3.2 | 4.0 | 114.3 | 125.4 | 147.0 |
| 100 | M100 | 24.0 | 31/2’ | 42.8 | 4” | 76.0 | 90.9 | 86.1 | 101.4 | 3.2 | 4.0 | 123.0 | 135.3 | 140.0 |
| 115 | M115 | 24.0 | 4” | 44.0 | 5” | 86.0 | 97.9 | 101.5 | 10.2 | 3.2 | 4.0 | 133.4 | 146.7 | 162.0 |
| 130 | M130 | 24.0 | 5” | 46.8 | 97.0 | 114.9 | 110.2 | 123.2 | 3.2 | 4.0 | 152.4 | 167.6 | 174.0 | |
