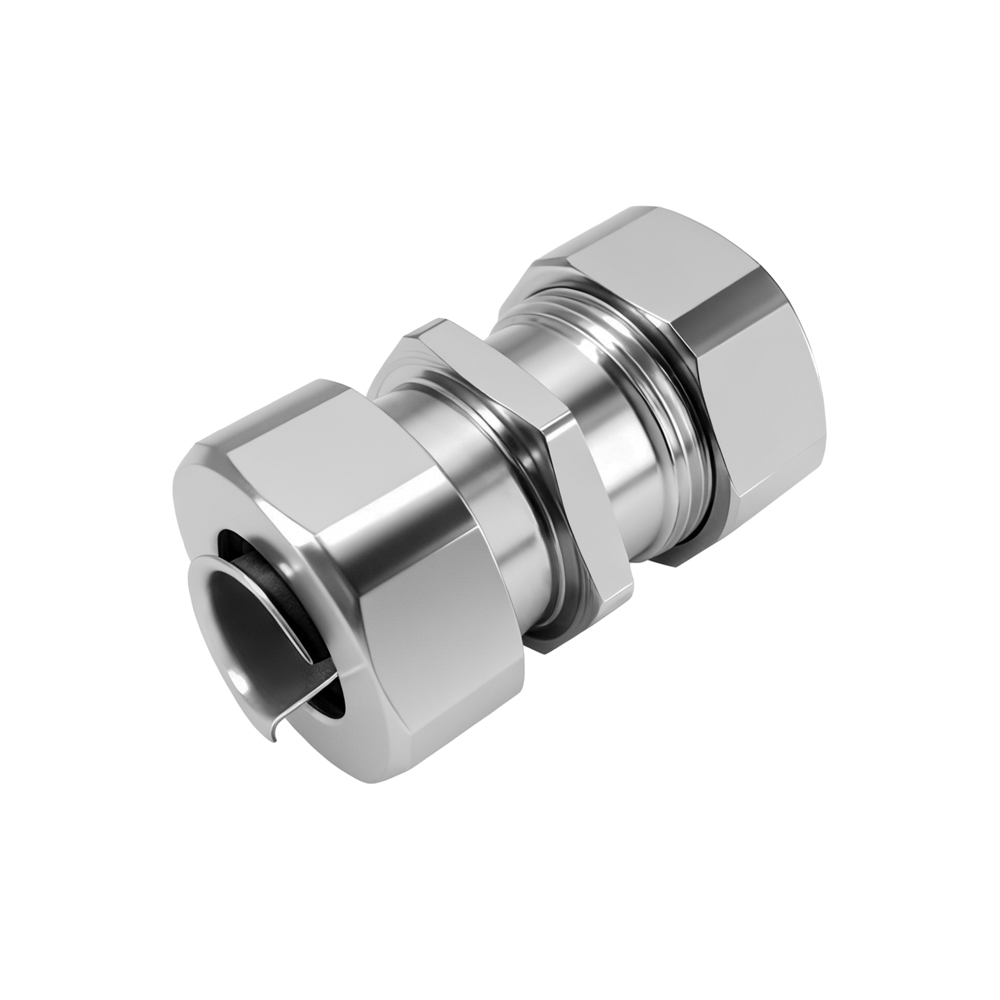

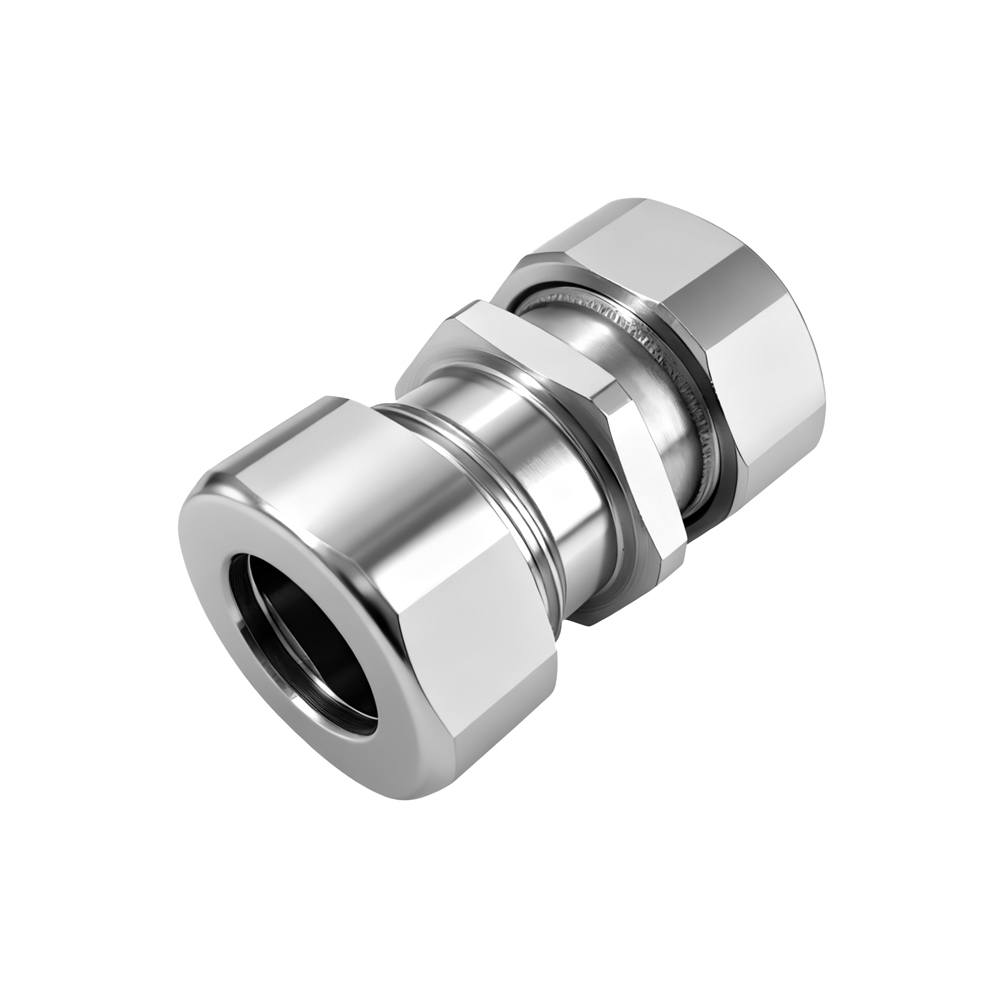

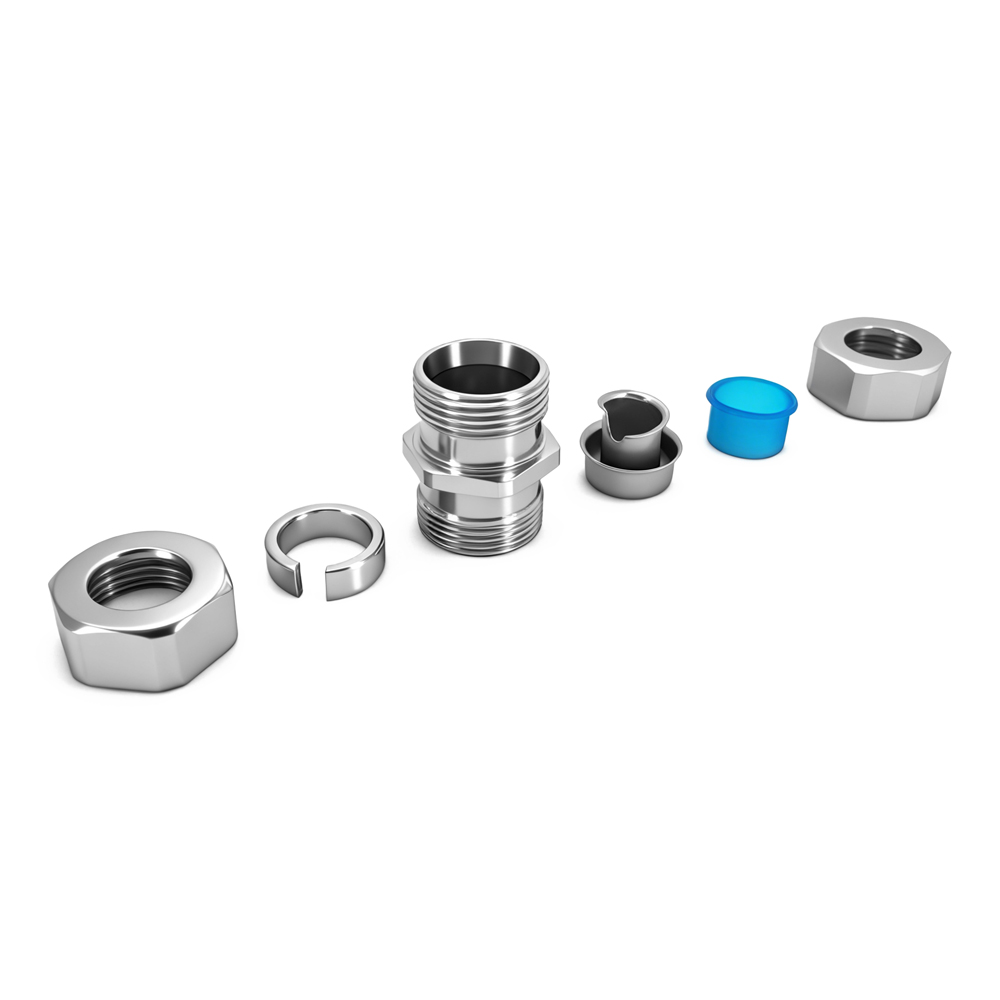

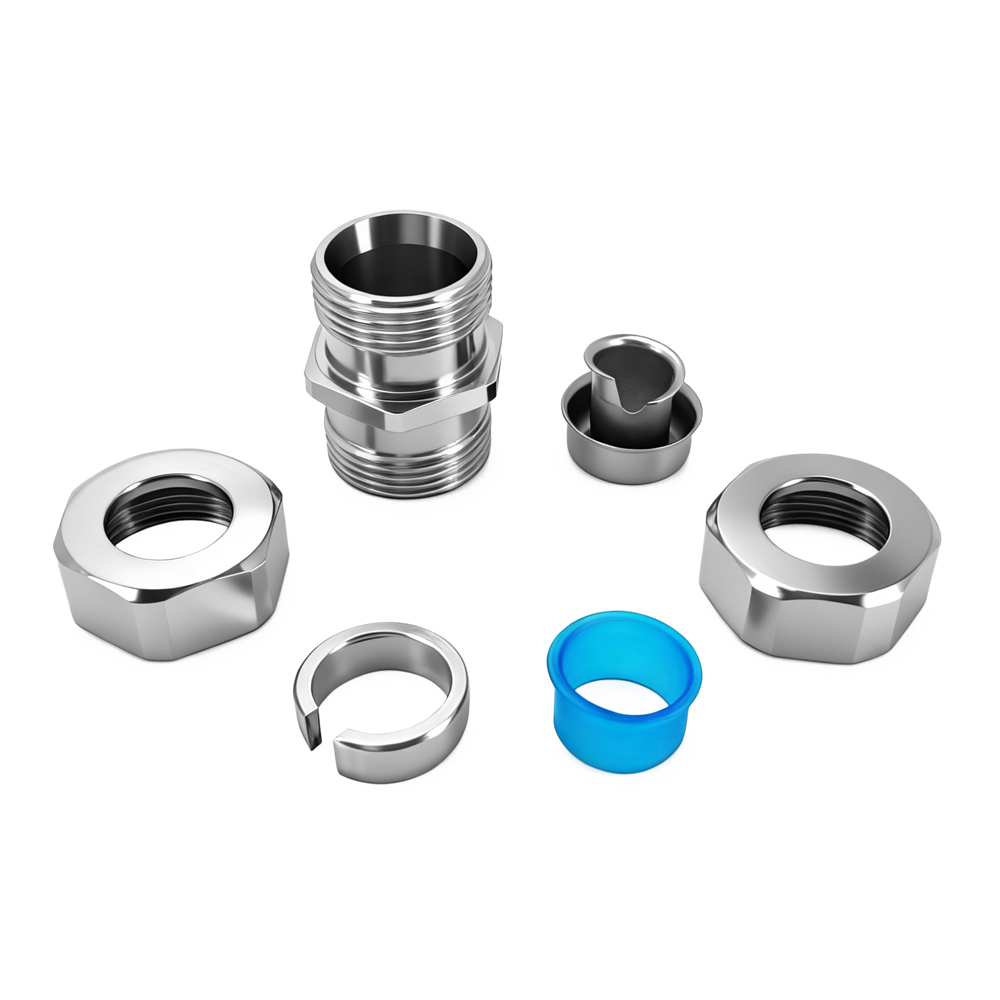

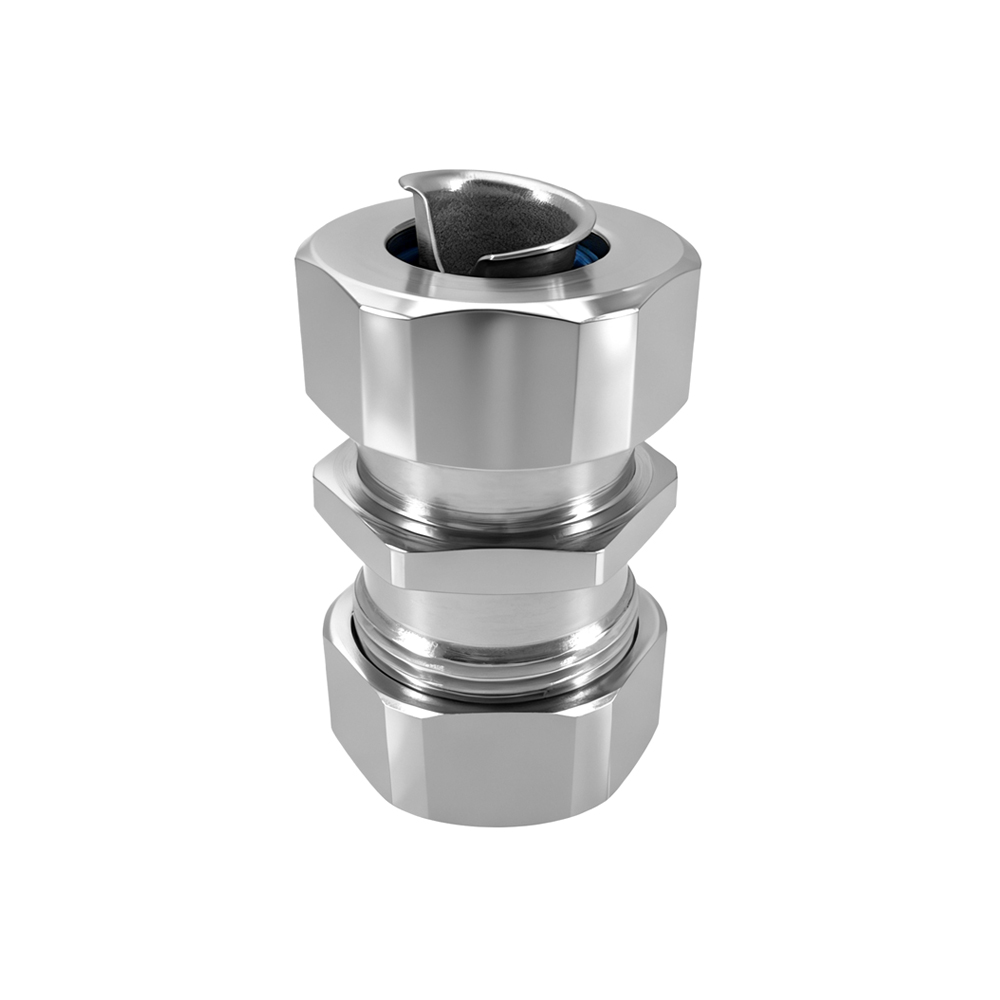

Material: SS304/SS316L
Color: Silver
Protection Degree: IP66
Temperature Range: Min-40℃， Max+100℃， short term 120℃
Function: glands are mainly for SPR-PVC-AS and SPR-AS.
| Conduit Size | Measurements | |||||||
| mm | in | A | B | C | D | E | F | G |
| YKW-DGJ-Φ12 (13) | 3/8" | 31.5 | 10.5 | 22 | 18 | M4*7 | 37 | 17.5 |
| YKW-DGJ-Φ15 (16) | 1/2" | 35 | 13 | 26.5 | 22.2 | M4*7 | 43 | 21.5 |
| YKW-DGJ-Φ20 (19) | 3/4" | 38 | 13 | 31.6 | 27.3 | M4*7 | 46 | 27 |
| YKW-DGJ-Φ25 | 1" | 40 | 13 | 39 | 34.2 | M4*7 | 49 | 33.6 |
| YKW-DGJ-Φ32 | 1-1/4" | 43 | 15 | 49 | 43 | M5*8 | 49 | 42.5 |
| YKW-DGJ-Φ38 (40) | 1-1/2" | 46 | 15 | 55 | 49.2 | M5*8 | 54 | 48.2 |
| YKW-DGJ-Φ51 (50) | 2" | 50 | 17 | 69 | 61.5 | M5*8 | 62 | 60.2 |
| YKW-DGJ-Φ64 (70) | 2-1/2" | 64 | 22.5 | 84 | 76.5 | M6*10 | 73 | 76 |
| YKW-DGJ-Φ75 (80) | 3" | 66 | 22.5 | 96 | 89 | M6*10 | 77 | 89 |
| YKW-DGJ-Φ100 | 4" | 75 | 25 | 126 | 116 | M6*10 | 86 | 115 |
| YKW-DGJ-Φ125 | 5" | 84 | 27 | 151 | 140 | M6*10 | 99 | 141 |
| YKW-DGJ-Φ150 | 6" | 85 | 30 | 174.5 | 164 | M6*10 | 111 | 166 |
