Material: SS304/316L
Color: Silver
O-Ring: NBR
Working temperature:-40℃ ～ +100℃ , short time can be up to +120℃ .

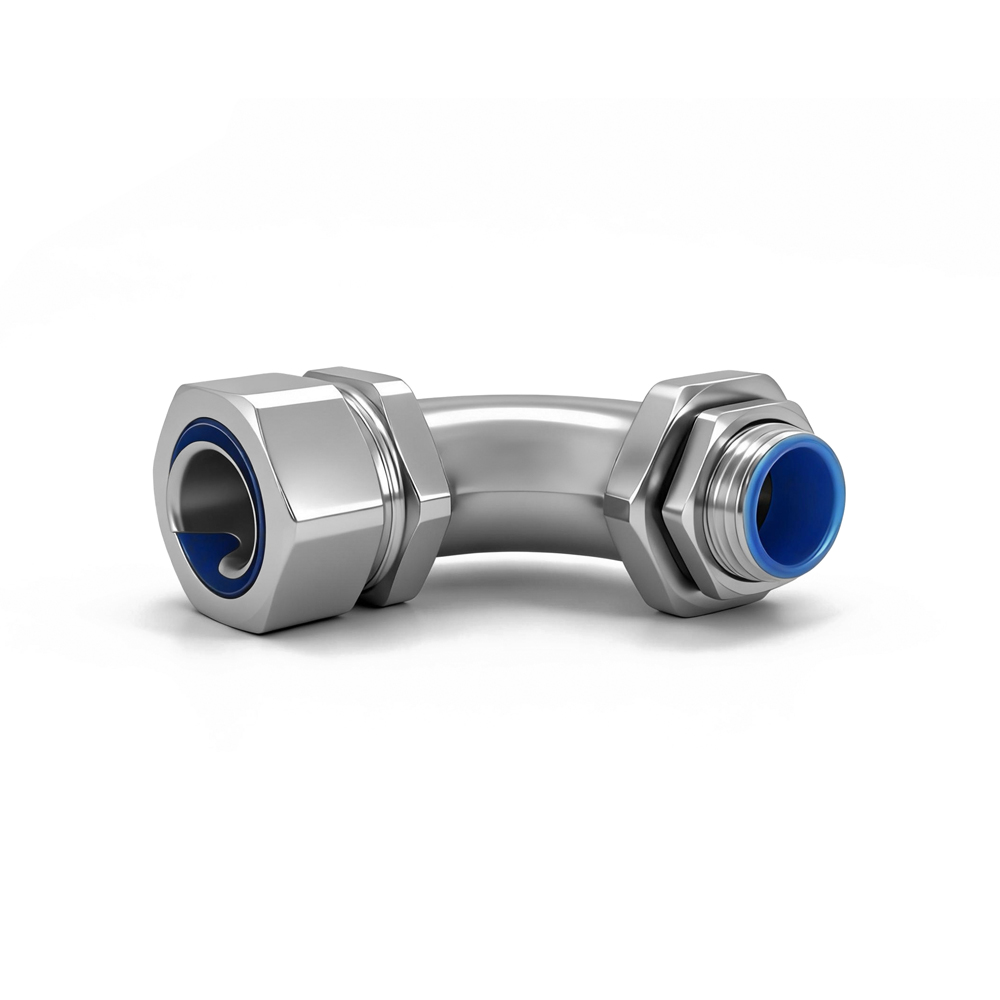

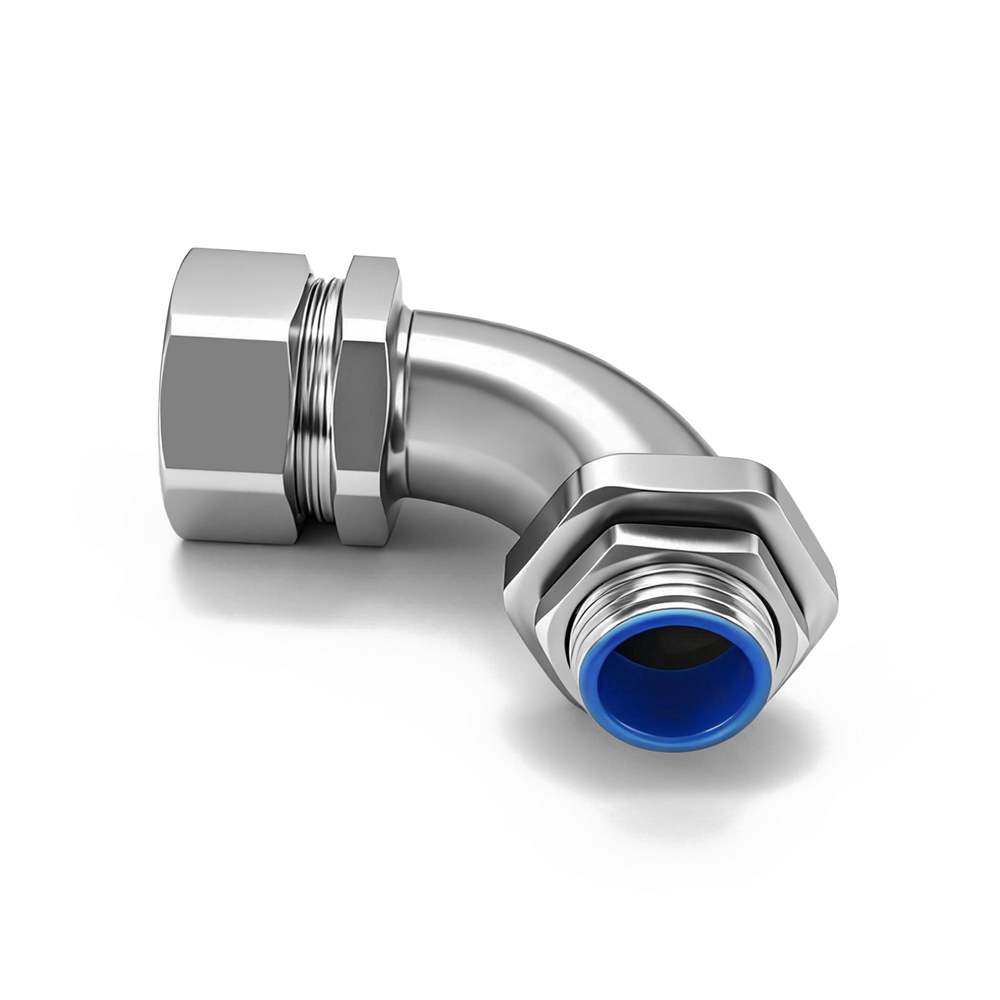

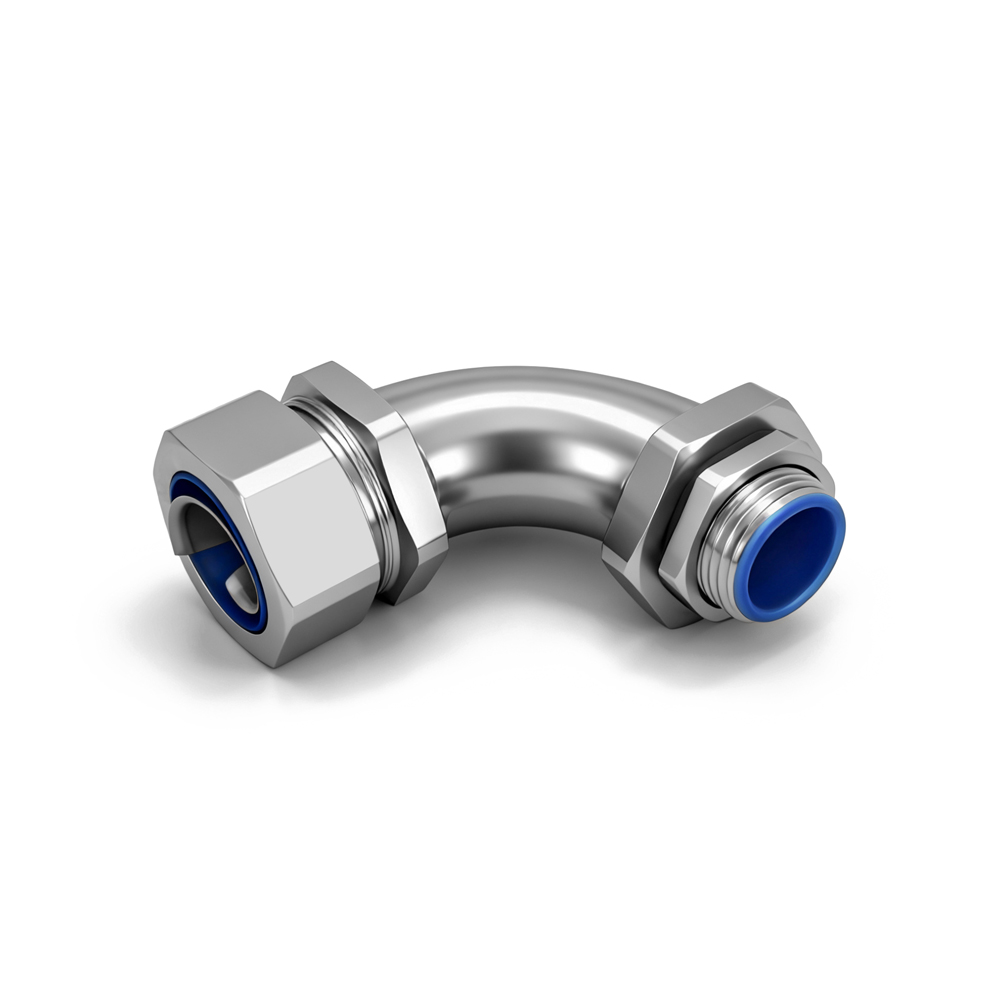

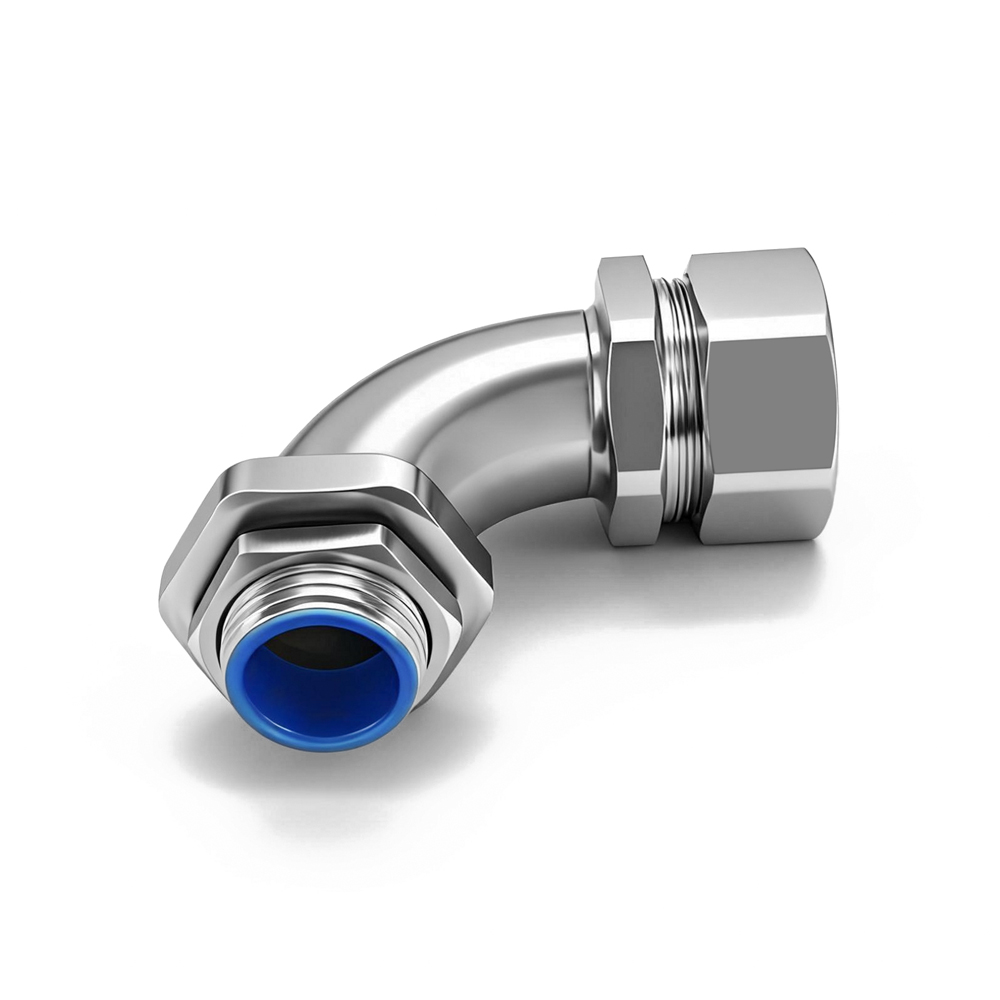

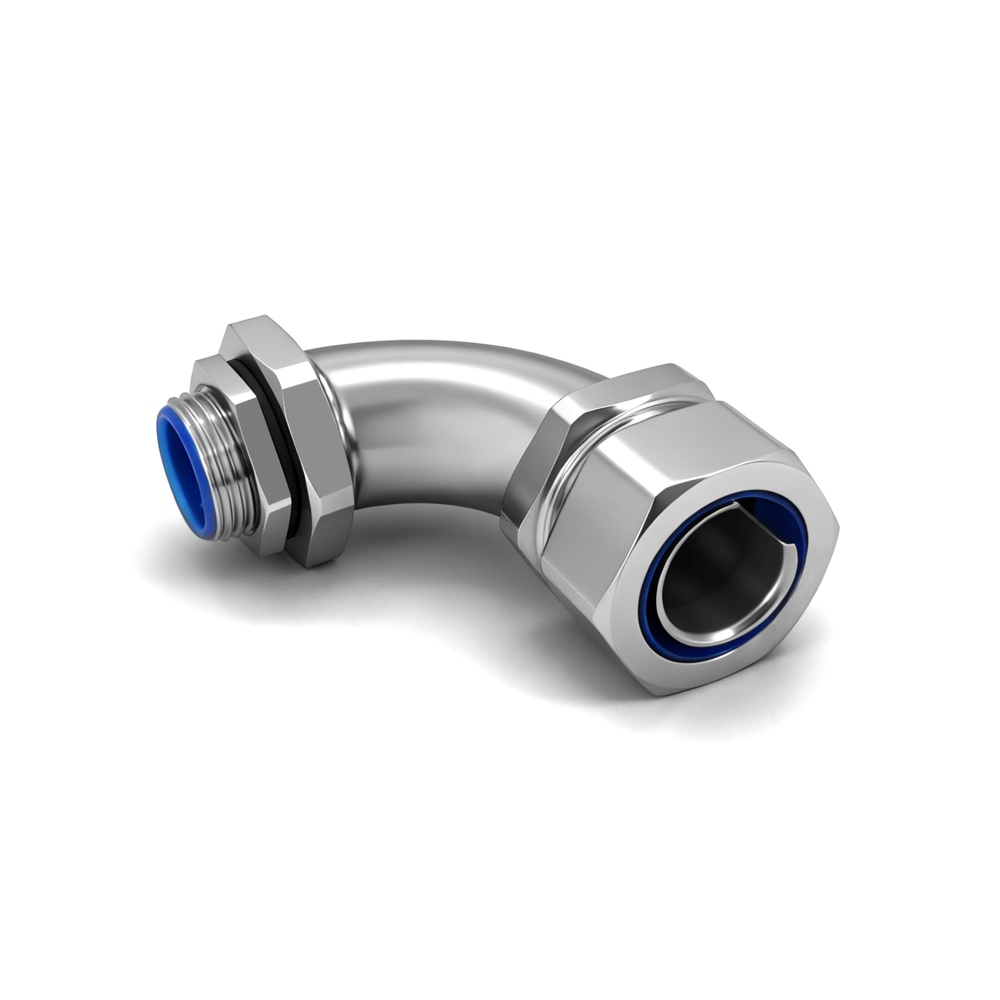

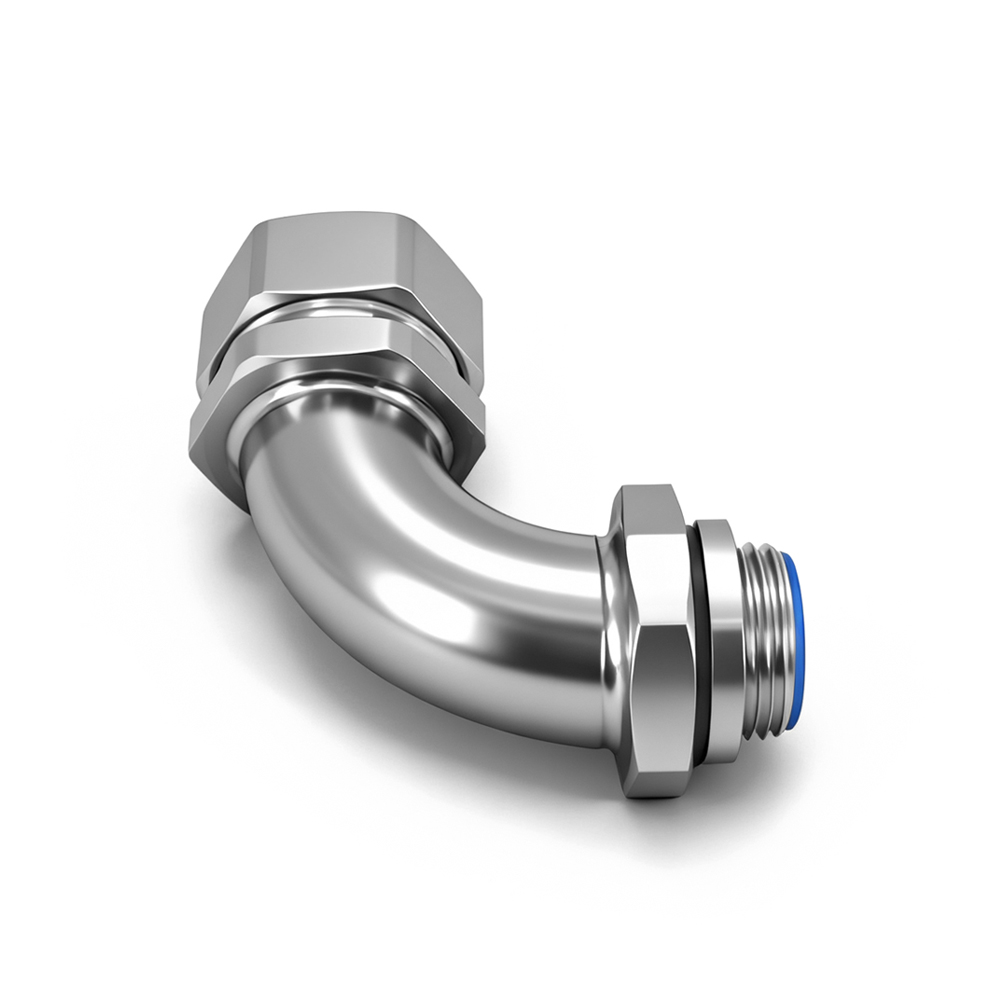

One end is connected to the hose, and the other end is connected to the box, motor and other equipment in a 90 degree angle. Please indicate the hose specification and connection thread when ordering.
| Model | Fits To Tubing | M Thread | NPT Thread | G Thread | GL (mm) |
| YKWS-DWJ90 | φ12 | M16 | NPT3/8 | G3/8 | 10 |
| YKWS-DWJ90 | φ15 | M20 | NPT1/2 | G1/2 | 10 |
| YKWS-DWJ90 | φ20 | M25 | NPT3/4 | G3/4 | 12 |
| YKWS-DWJ90 | φ25 | M32 | NPT1 | G1 | 12 |
| YKWS-DWJ90 | φ32 | M40 | NPT1-1/4 | G1-1/4 | 14 |
| YKWS-DWJ90 | φ38 | M50 | NPT1-1/2 | G1-1/2 | 15 |
| YKWS-DWJ90 | φ51 | M63 | NPT2 | G2 | 15 |
| YKWS-DWJ90 | φ64 | M75 | NPT2-1/2 | G2-1/2 | 20 |
| YKWS-DWJ90 | φ75 | M85 | NPT3 | G3 | 22 |
| YKWS-DWJ90 | φ100 | M114 | NPT4 | G4 | 28 |
