Material: SS304/316L
Color: Silver
O-Ring: NBR
Working temperature: -40℃ ～ +100℃ , short time can be up to +120℃ .

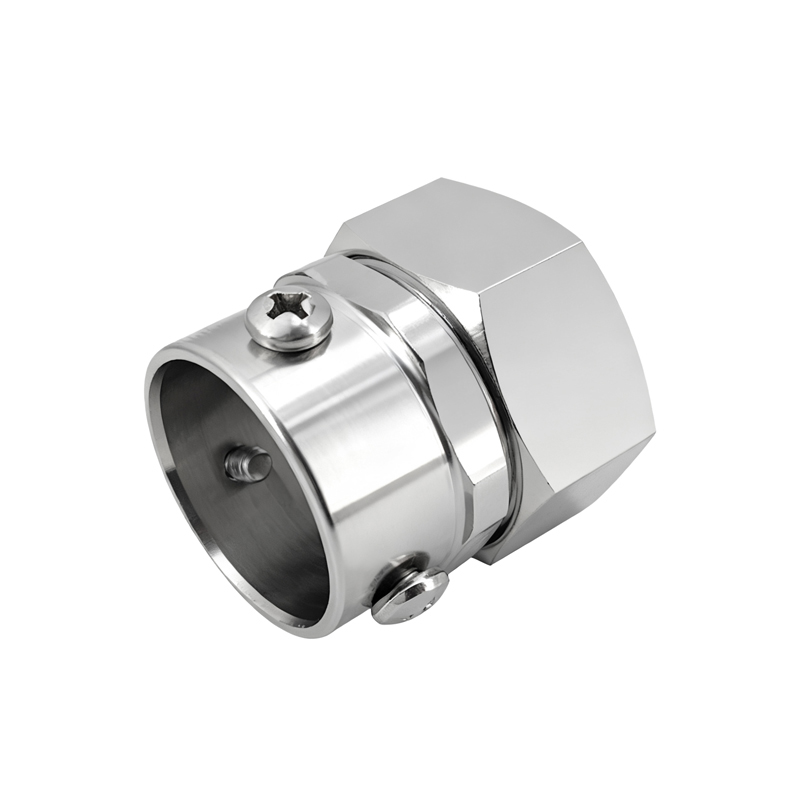

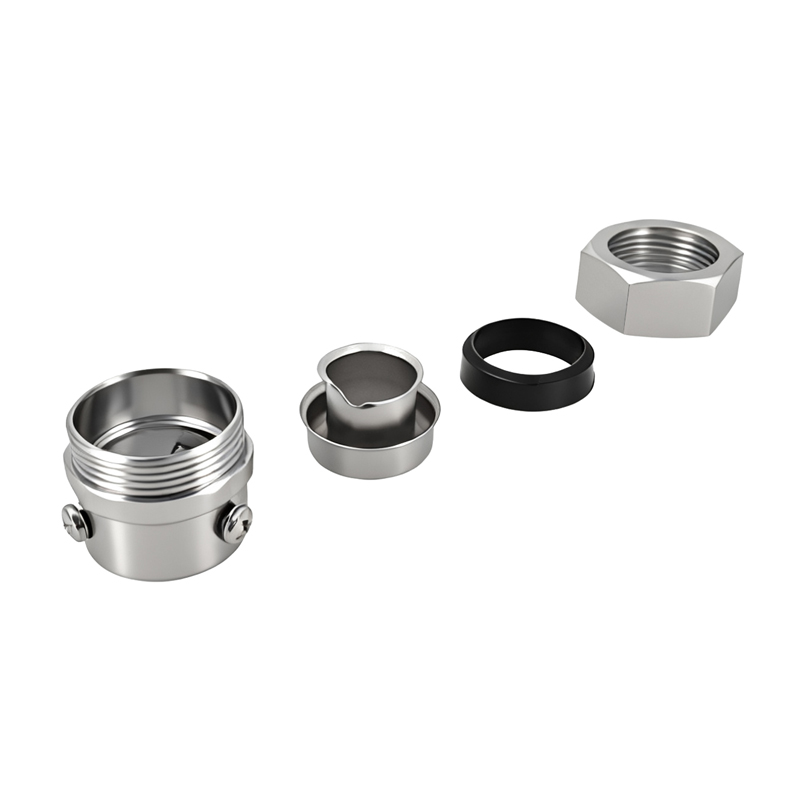

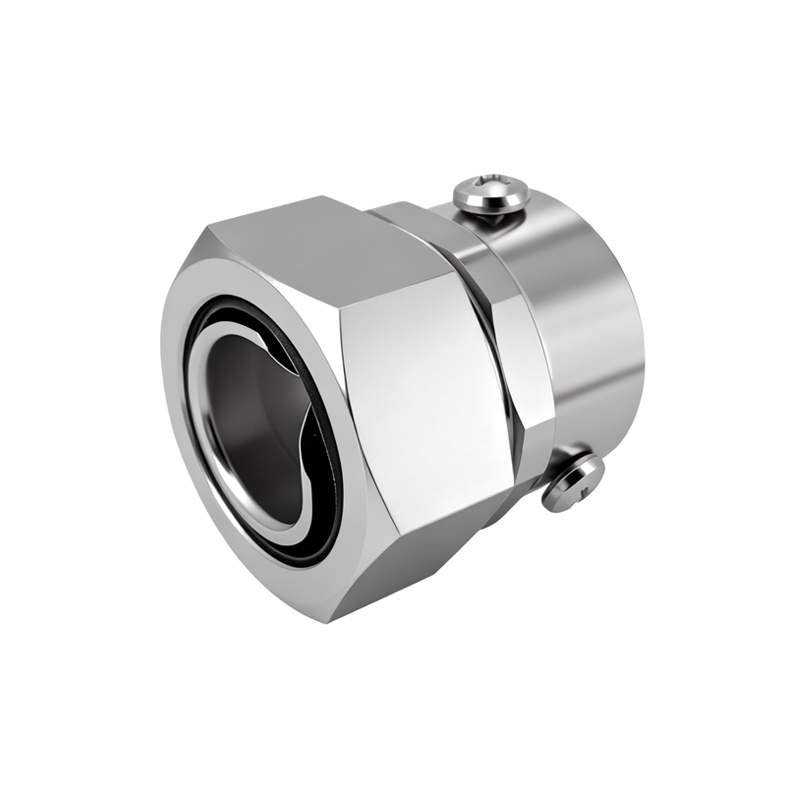

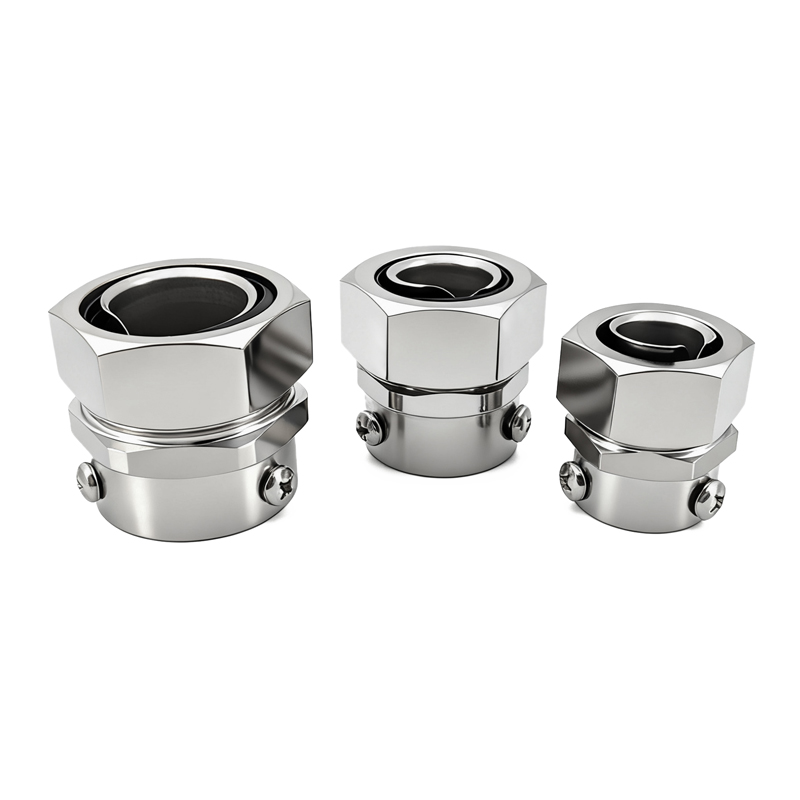

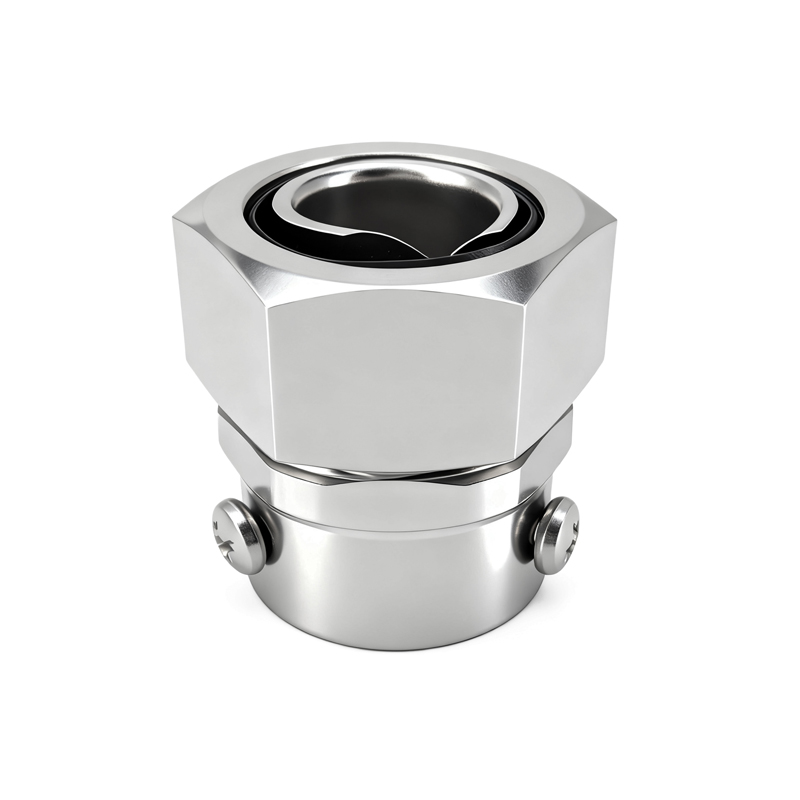

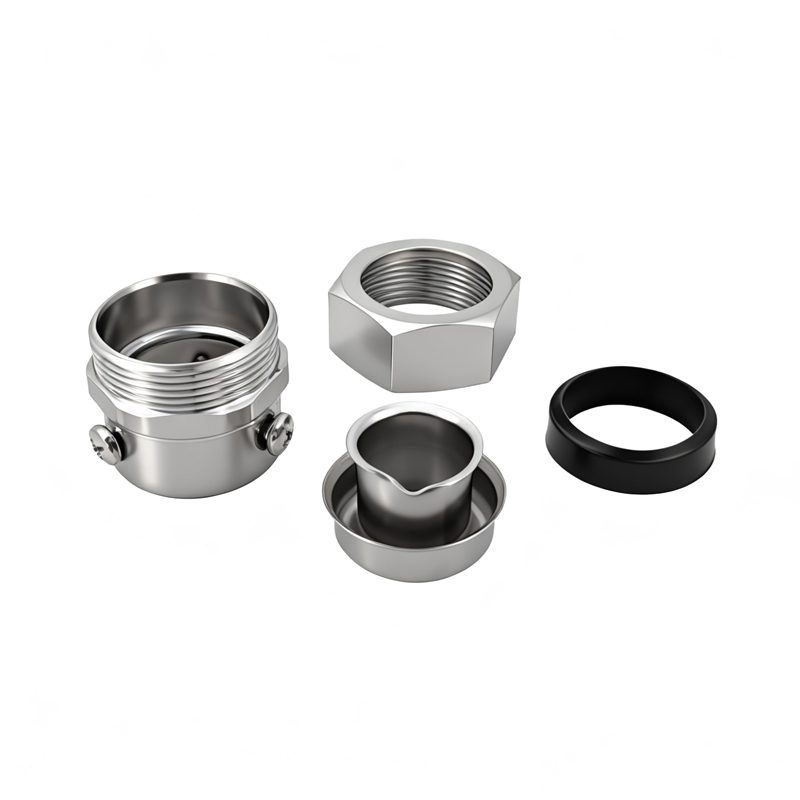

DKJ connector, can pipe will be non threaded connection with the hose, save the threading process, only the screw is screwed into the can
Fit hose: JS type, JSH type, JSB type, JSHG type
Adapting pipe:steel wire tube, black, galvanized iron pipr (water, gas pipe)
The DKJ Connector can be connected pipe, hose specifications, dimensions.
| Model | Specification | Heavy Steel Pipe(Blue Gaspipe) | Light Steel Pipe A(Wire Tube) | |||||
| Metric | Inch | Metric | Inch | Outer*wall Thickness (mm) | Metric | Inch | Outer*wall Thickness(mm) | |
| YKWS-DKJ12 | φ12 | 3/8" | #12 | 3/8" | 17x2.25 | #15 | 5/8" | 15.87x1.60 |
| YKWS-DKJ15 | φ15 | 1/2" | #15 | 1/2" | 21.25x2.75 | #20 | 3/4" | 19.05x1.80 |
| YKWS-DKJ20 | φ20 | 3/4" | #20 | 3/4" | 26.75x2.75 | #25 | 1" | 25.40x1.80 |
| YKWS-DKJ25 | φ25 | 1" | #25 | 1" | 33.5x3.25 | #32 | 1 1/4" | 31.75x1.80 |
| YKWS-DKJ32 | φ32 | 1 1/4" | #32 | 1 1/4" | 42.25x3.25 | #40 | 1 1/2" | 38.10x1.80 |
| YKWS-DKJ38 | φ38 | 1 1/2" | #40 | 1 1/2" | 48x3.5 | #50 | 2" | 50.80x2.0 |
| YKWS-DKJ51 | φ51 | 2" | #50 | 2" | 60x3.5 | #70 | 2 1/2" | 63.50x2.5 |
| YKWS-DKJ64 | φ64 | 2 1/2" | #70 | 2 1/2" | 75.5x3.75 | #80 | 3" | 76.2x3.20 |
| YKWS-DKJ75 | φ75 | 3" | #80 | 3" | 88.5x4 | |||
| YKWS-DKJ100 | φ100 | 4" | #100 | 4" | 114x4 | |||
| YKWS-DKJ125 | φ125 | 5" | #125 | 5" | 140x4.5 | |||
| YKWS-DKJ150 | φ150 | 6" | #150 | 6" | 165x4.5 | |||
