Material: SS304/316L
Color: Sliver
Guarding: TPE
Ferrule: Galvanized Steel/SS304
Working Temperature: -40℃～105℃
Protection Level: IP66
Waterproof, dust proof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent.

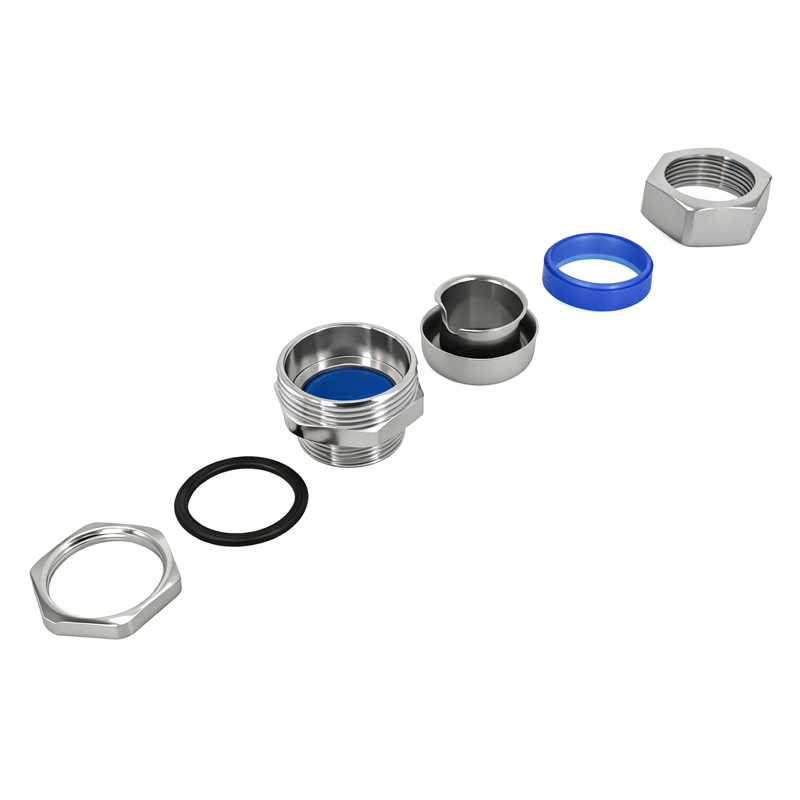

The design of hose sheath and the hose fastening assembly phase, time saving, convenience, strong tensile.
| Model | Adapted Hose Size | G Thread | GL (mm) | Metric Thread | GL | PG Thread | Wrench Size (mm) | |
| Metric | inch | |||||||
| YKWS-DPJ6 | φ6 | 3/16" | 3/4" | 7 | M12/M14 | 7 | PG7 | 18/16 |
| YKWS-DPJ8 | φ8 | 5/16" | G3/8" | 7 | M14/M16 | 10 | PG9 | 24/22 |
| YKWS-DPJ10 | φ10 | 1/4" | G3/8" | 8 | M16 | 10 | PG9 | 24/22 |
| YKWS-DPJ12 | φ12(13) | 3/8" | G3/8" | 10 | M16/M18/M20 | 10 | PG11/PG13.5 | 26 |
| YKWS-DPJ15 | φ15(16) | 1/2" | G1/2" | 12 | M20/M22/M24 | 10 | PG13.5/PG16 | 30 |
| YKWS-DPJ20 | φ20(19) | 3/4" | G3/4" | 12 | M25/M27/M30 | 12 | PG21 | 35 |
| YKWS-DPJ25 | φ25 | 1" | G1" | 14 | M32/M33/M36 | 12 | PG29 | 43 |
| YKWS-DPJ32 | φ32 | 1 1/4" | G1 1/4" | 14 | M40/M42/M48 | 14 | PG29 | 52 |
| YKWS-DPJ38 | φ38(40) | 1 1/2" | G1 1/2" | 16 | M43/M50 | 14 | PG36/PG42 | 60 |
| YKWS-DPJ51 | φ51(50) | 2" | G2" | 16 | M60/M63/M64/M72 | 16 | PG48 | 75 |
| YKWS-DPJ64 | φ64(70) | 2 1/2" | G2 1/2" | 24 | M76 | 20 | 89/87 | |
| YKWS-DPJ75 | φ75(80) | 3" | G3" | 25 | M88 | 22 | 102/97 | |
| YKWS-DPJ100 | φ100 | 4" | G4" | 25 | M114 | 28 | 133/128 | |
| YKWS-DPJ125 | φ125 | 5" | G5" | 25 | M140 | 29 | 158 | |
| YKWS-DPJ150 | φ150 | 6" | G6" | 25 | M164 | 29 | 183 | |
